Zone Valve, 3 Way, Closed System, 1In NPT - Z100T3-2
TacoLog in for pricing
(No reviews yet)
Write a Review
Taco
Zone Valve, 3 Way, Closed System, 1In NPT - Z100T3-2
Motorized Zone Valve, Actuator Control Pressure - Maximum Not Applicable, Actuator Control Pressure - Minimum Not Applicable, Actuator Control Signal On/Off, Actuator Gears Material Polymer, Actuator Housing Material Polymer, Actuator Return Action Double Acting, Actuator Type Electric, Actuator Voltage 24V AC, Allowable Pressure - Maximum 300 psi, Application Air Handlers, Baseboard Heaters, Convectors, Fan Coils, Heat Pumps, Radiators, Body Material Brass, Body Pattern Three-Way
- Country of Origin:
- United States
- Item:
- Motorized Zone Valve
- Body Material:
- Brass
- Voltage:
- 24
- For Use With:
- Closed Systems
- Width (In.):
- 5 5/16 in
- Height (In.):
- 5 1/8 in
- Coefficient of Volume:
- 4.5
- Type:
- Three Way, Closed System
- Safe Working Water PSI:
- 300 psi
- Depth (In.):
- 2 3/8 in
- Max. Water Temp. (Deg. F):
- 220 Degrees F
- Connection Type/Size (In.):
- NPT 1
- Electrical Connections:
- 2-Pin Screw Connectors for Power and End Switch
- Includes:
- End Switch
- Actuator Control Pressure - Maximum:
- Not Applicable
- Actuator Type:
- Electric
- Port Connection Size:
- 1 in
- Overall Depth:
- 2 3/8 in
- Fluid Temperature - Minimum:
- 20 Degrees F
- Frequency:
- 60 Hz
- For Media:
- Water, Water-Glycol Solution to 50%
- Operating Temperature - Maximum:
- 135 Degrees F
- Body Pattern:
- Three-Way
- Actuator Control Pressure - Minimum:
- Not Applicable
- Stem Material:
- Brass
- Actuator Housing Material:
- Polymer
- Standards:
- NSF Certified
- Distance Between Inlet and Outlet Port:
- 3 7/8 in
- Port Connection Gender:
- Female
- Actuator Gears Material:
- Polymer
- Actuator Voltage:
- 24V AC
- Port Connection Type:
- NPT
- Close-Off Pressure:
- 125 psi
- Allowable Pressure - Maximum:
- 300 psi
- Coefficient of Volume (Cv):
- 8.9
- Overall Width:
- 5 5/16 in
- Fluid Temperature - Maximum:
- 220 Degrees F
- Overall Length:
- 5 1/2 in
- Spring Action:
- Non-Spring Return
- Actuator Control Signal:
- On/Off
- Bypass Port Coefficient of Volume (Cv):
- 3
- Gasket/Plug Material:
- EPDM
- Actuator Return Action:
- Double Acting
- Valve Action:
- Normally Closed
- Installation Orientation:
- Versatile
- Valve Type:
- Ball
- Application:
- Air Handlers, Baseboard Heaters, Convectors, Fan Coils, Heat Pumps, Radiators
- Includes Actuator:
- Actuator Included
- Package Quantity:
- 1
-
-

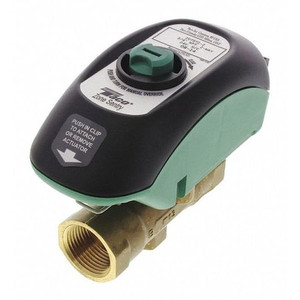

Zone Valve, 2 Way, NO, 3/4 In NPT - V075T2A2ZB024Q4A2
