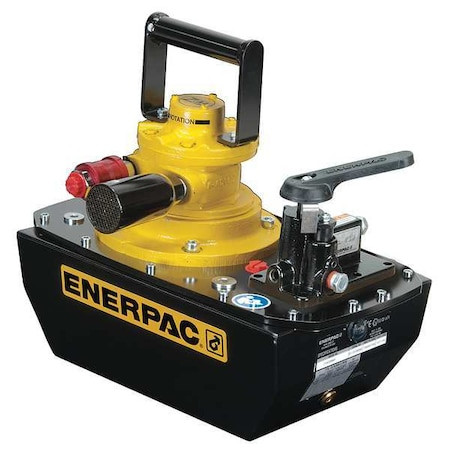

ZA4404MX, Two Speed, Air Hydraulic Pump, 4/3 Manual Valve, 1.0 gal Oil, For Double-Acting Cylinders - ZA4404MX

ZA4404MX, Two Speed, Air Hydraulic Pump, 4/3 Manual Valve, 1.0 gal Oil, For Double-Acting Cylinders - ZA4404MX

Enerpac
SKU:
ZA4404MX
|
UPC:
662005132669
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Air Hydraulic Pump, Reservoir Capacity 231 cu in, Air Intake Pressure - Maximum 100 psi, Air Intake Connection Size 1/2 in, Operating Pressure - Maximum 10,000 psi, Displacement @ 100 psi 850 cu in/min, Displacement @ 5000 psi 110 cu in/min, Displacement @ 10,000 PSI 80 cu in/min, Sound Level - Maximum 97 dBA, Control Valve Type 2-Position, 3-Way, Actuation Type Pendant, Air Consumption - Maximum 100 scfm, Air Intake Connection Type FNPT, Control Valve Function Advance, Hold, Retract
Additional Information
Country of Origin:
United States
Promotion Restriction:
Not eligible for promotion
Item:
Air Hydraulic Pump
Oil Capacity (Cu.-In.):
231 cu in
Reservoir Capacity (Gal.):
1 gal
Oil Displacement @ 0 PSI:
110.00 cu in/min
Oil Displacement @ 10,000 PSI:
80 cu in/min
Operating Air PSI:
60 to 100
Air Consumption (SCFM):
20 to 100
Height (In.):
8.1 in
Actuation Type:
Pendant
Features:
Ergonomic Design, Pedal Lock Function, Pressure Relief Valve
Built-In:
One Factory Preset for Overload Protection and One Adjustable for Pre-Setting Maximum System Pressure, Sight or Level Gauge and Internal Relief Valves
Width (In.):
5.9 in
Capacity (PSI):
10,000
Type:
Air Powered
Air Inlet NPT (In.):
1/2
Displacement @ 10,000 PSI:
80 cu in/min
Includes:
Optional Heat Exchangers and Roll Cages Available
Fluid Port NPT (In.):
3/8
dBA:
94 to 97
Length (In.):
6.1 in
Usable Oil Capacity Vertical Mount:
Pump
Treadle:
Three Position
Sound Level - Minimum:
94 dBA
Overall Height:
20.5 in
Flow Rate - Maximum:
80 cu in/min
Air Intake Pressure - Maximum:
100 psi
Air Consumption - Maximum:
100 scfm
Sound Level - Maximum:
97 dBA
Overall Width:
5.9 in
Air Intake Connection Size:
1/2 in
Control Valve Type:
2-Position, 3-Way
Air Intake Connection Type:
FNPT
Control Valve Function:
Advance, Hold, Retract
Displacement @ 700 psi:
675 cu in/min
Operating Pressure - Maximum:
10,000 psi
Treadle Design:
Three Position
Media Intake Connection Size:
3/8 in
Displacement @ 5000 psi:
110 cu in/min
Overall Length:
19.4 in
Displacement @ 100 psi:
850 cu in/min
Reservoir Capacity:
231 cu in
Package Quantity:
1
