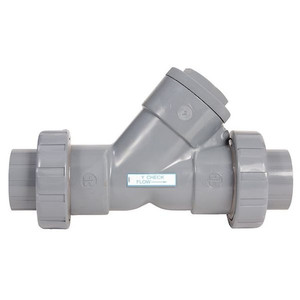

Y-Check Valve, True Union, 4", CPVC/EPDM, Socket - YC20400SEU

Y-Check Valve, True Union, 4", CPVC/EPDM, Socket - YC20400SEU

Hayward Flow Control
SKU:
YC20400SEU
|
UPC:
610377226981
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Item - Check Valves Check Valve, Flow Design Single, Mechanism and Body Design Y True Union, Body Material - Valves CPVC, Pipe or Tube Size 4 in, Connection Type Socket x Socket, Cracking Pressure 1 psi, Mounting Orientation Horizontal, Vertical, Seal Material FPM, Max. Temp. - Valves 190 Degrees F, Min. Temp. - Valves 40 Degrees F, Max. Water Pressure - Valves 150 psi @ 70 Degrees F, Max. Steam Pressure - Valves Not Rated, Seat Material FPM, Flow - Valves 240 gpm, Full Flow - Valves Yes
Additional Information
Country of Origin:
United States
Pipe Size:
4";Hex Size=4 1/4""
Connection Type:
socket
Connection:
Socket
Body Material:
CPVC
Max. Temp.:
190 Degrees F
Application - Valves:
Process Piping
Max. Pressure:
150 psi @ 70 Degrees F
Pipe or Tube Size - Check Valves:
4 in
Width:
8 9/16 in
Cracking Pressure - Check Valves:
1.0 psi
Cracking Pressure:
1 psi
Seat Material:
FPM
Full Flow - Valves:
Yes
Connection Type - Check Valves:
Socket x Socket
Item - Check Valves:
Check Valve
Mounting Orientation - Check Valves:
Horizontal, Vertical
Flow:
240 gpm
Max. Temp. - Valves:
190 Degrees F
Item:
True Union Y Check Valve
Max. Water Pressure - Valves:
150 psi @ 70 Degrees F
Sub-Category:
CPVC
Overall Height:
13 5/32 in
Max. Water Pressure:
150 psi @ 70 Degrees F
Mechanism and Body Design:
Y True Union
Seal Material:
FPM
Min. Temp. - Valves:
40 Degrees F
Max. Steam Pressure - Valves:
Not Rated
Mounting Position:
Vertical or Horizontal
Seat Material - Check Valves:
FPM
Size:
4";Length=21 15/64 in"
Body Material - Valves:
CPVC
Flow Design:
Single
Flow - Valves:
240 gpm
Cap to Inlet Center:
8 15/16 in
Material of Construction:
CPVC
Seal Material - Check Valves:
FPM
Spring Material:
Not Applicable
Overall Length:
21.23 in
Standards:
ASTM D1784
Pipe or Tube Size:
4 in
Mounting Orientation:
Horizontal, Vertical
Seal:
FPM
Connection Gender - Side 2:
Female
Silent Check:
Standard
Connection Gender - Side 1:
Female
Manufacturer Warranty:
3 yr
Coefficient of Volume (Cv):
240
For Media:
Water
Valve Body Style:
Y-Style
Maximum Pressure - Operating:
150 psi
Nominal Valve Size:
4 in
Operating Temperature - Maximum:
190 Degrees F
Operating Temperature - Minimum:
34 Degrees F
ANSI Flange Class:
Not Applicable
Check Mechanism:
Piston
Vacuum Service Rating:
Not Rated
Maximum Pressure - Steam:
Not Rated
3-A Standard Compliance:
Not Rated
Connection Size - Side 1:
4 in
Average Surface Roughness (Ra):
Not Applicable
Height - Cap to Inlet Center:
9 in
Connection Type - Side 2:
Socket
Connection Type - Side 1:
Socket
Connection Size - Side 2:
4 in
Check Mechanism Material:
CPVC
Includes Counterweight:
No Counterweight
Package Quantity:
1
