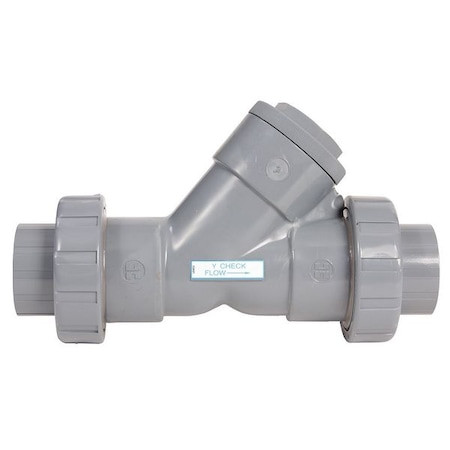

Y-Check Valve, True Union, 3", PVC/EPDM, Threaded - YC10300TEU

Y-Check Valve, True Union, 3", PVC/EPDM, Threaded - YC10300TEU

Hayward Flow Control
SKU:
YC10300TEU
|
UPC:
610377226851
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Item - Check Valves Check Valve, Flow Design Single, Mechanism and Body Design Y True Union, Body Material - Valves PVC, Pipe or Tube Size 3 in, Connection Type FNPT x FNPT, Cracking Pressure 1 psi, Mounting Orientation Horizontal, Vertical, Seal Material EPDM, Max. Temp. - Valves 140 Degrees F, Min. Temp. - Valves 40 Degrees F, Max. Water Pressure - Valves 150 psi @ 70 Degrees F, Max. Steam Pressure - Valves Not Rated, Seat Material EPDM, Flow - Valves 110 gpm, Full Flow - Valves Yes
Additional Information
Country of Origin:
United States
Pipe Size:
3";Hex Size=3 1/2""
Connection Type:
Threaded
Connection:
Threaded
Body Material:
PVC
Seat Material:
EPDM
Mechanism and Body Design:
Y True Union
Pipe or Tube Size - Check Valves:
3 in
Seal Material:
EPDM
Flow - Valves:
110 gpm
Max. Steam Pressure - Valves:
Not Rated
Flow:
110 gpm
Width:
6 13/32 in
Cap to Inlet Center:
7 13/32 in
Max. Water Pressure:
150 psi @ 70 Degrees F
Body Material - Valves:
PVC
Material of Construction:
PVC
Seal Material - Check Valves:
EPDM
Max. Temp. - Valves:
140 Degrees F
Size:
3";Min. Temp. - Valves=40 Degrees F"
Full Flow - Valves:
Yes
Max. Pressure:
150 psi @ 70 Degrees F
Length:
16 49/64 in
Flow Design:
Single
Application - Valves:
General Purpose
Max. Water Pressure - Valves:
150 psi @ 70 Degrees F
Mounting Position:
Vertical or Horizontal
Seat Material - Check Valves:
EPDM
Mounting Orientation - Check Valves:
Horizontal, Vertical
Overall Height:
10 29/64 in
Item - Check Valves:
Check Valve
Item:
True Union Y Check Valve
Sub-Category:
PVC
Connection Type - Check Valves:
FNPT x FNPT
Cracking Pressure - Check Valves:
1.0 psi
Cracking Pressure:
1 psi
Max. Temp.:
140 Degrees F
Overall Length:
16.77 in
Standards:
ASTM D1784
Spring Material:
Not Applicable
Pipe or Tube Size:
3 in
Mounting Orientation:
Horizontal, Vertical
Seal:
Buna-N
Connection Type - Side 1:
NPT
Operating Temperature - Maximum:
140 Degrees F
Check Mechanism Material:
PVC
Connection Size - Side 2:
3 in
Maximum Pressure - Operating:
150 psi
Valve Body Style:
Y-Style
Operating Temperature - Minimum:
34 Degrees F
Height - Cap to Inlet Center:
7 3/8 in
Connection Size - Side 1:
3 in
3-A Standard Compliance:
Not Rated
Connection Type - Side 2:
NPT
Nominal Valve Size:
3 in
Silent Check:
Standard
Average Surface Roughness (Ra):
Not Applicable
Connection Gender - Side 2:
Female
ANSI Flange Class:
Not Applicable
Coefficient of Volume (Cv):
110
Includes Counterweight:
No Counterweight
Connection Gender - Side 1:
Female
Manufacturer Warranty:
3 yr
Check Mechanism:
Piston
Maximum Pressure - Steam:
Not Rated
For Media:
Water
Vacuum Service Rating:
Not Rated
Package Quantity:
1
