Y-Check Valve, True Union, 2", CPVC/FPM, Socket - YC20200SU
Hayward Flow ControlLog in for pricing
(No reviews yet)
Write a Review
Hayward Flow Control

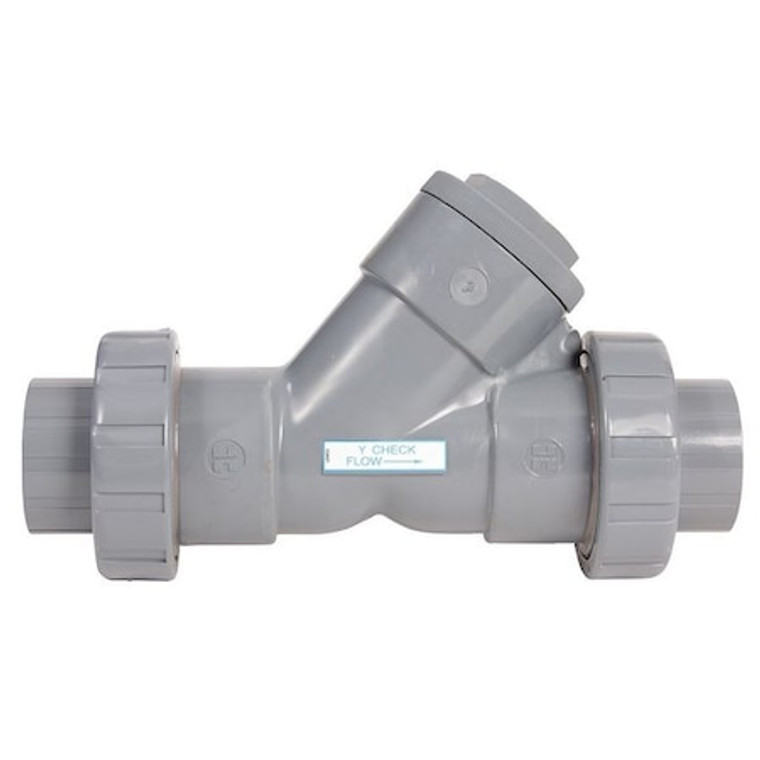

Y-Check Valve, True Union, 2", CPVC/FPM, Socket - YC20200SU
Item - Check Valves Check Valve, Flow Design Single, Mechanism and Body Design Y True Union, Body Material - Valves PVC, Pipe or Tube Size 2 in, Connection Type Socket x Socket, Cracking Pressure 1 psi, Mounting Orientation Horizontal, Vertical, Seal Material FPM, Max. Temp. - Valves 140 Degrees F, Min. Temp. - Valves 40 Degrees F, Max. Water Pressure - Valves 150 psi @ 70 Degrees F, Max. Steam Pressure - Valves Not Rated, Seat Material FPM, Flow - Valves 65 gpm, Full Flow - Valves Yes
- Country of Origin:
- United States
- Pipe Size:
- 2";Hex Size=2 3/8""
- Connection Type:
- socket
- Connection:
- Socket
- Body Material:
- PVC
- Flow - Valves:
- 65.0 gpm
- Seal Material:
- FPM
- Length:
- 13 3/64 in
- Min. Temp. - Valves:
- 40 Degrees F
- Max. Pressure:
- 150 psi @ 70 Degrees F
- Max. Temp. - Valves:
- 140 Degrees F
- Pipe or Tube Size - Check Valves:
- 2 in
- Overall Height:
- 7 3/4 in
- Max. Steam Pressure - Valves:
- Not Rated
- Item:
- True Union Y Check Valve
- Width:
- 4 3/4 in
- Sub-Category:
- PVC
- Max. Water Pressure:
- 150 psi @ 70 Degrees F
- Cracking Pressure - Check Valves:
- 1.0 psi
- Seal Material - Check Valves:
- FPM
- Max. Temp.:
- 190 Degrees F
- Seat Material - Check Valves:
- FPM
- Mounting Position:
- Vertical or Horizontal
- Full Flow - Valves:
- Yes
- Body Material - Valves:
- PVC
- Mounting Orientation - Check Valves:
- Horizontal, Vertical
- Connection Type - Check Valves:
- Socket x Socket
- Size:
- 2";Max. Water Pressure - Valves=150 psi @ 70 Degrees F"
- Cracking Pressure:
- 1 psi
- Cap to Inlet Center:
- 5 7/16 in
- Flow Design:
- Single
- Flow:
- 65 gpm
- Item - Check Valves:
- Check Valve
- Material of Construction:
- PVC
- Application - Valves:
- General Purpose
- Mechanism and Body Design:
- Y True Union
- Seat Material:
- FPM
- Standards:
- ASTM D1784
- Spring Material:
- Not Applicable
- Overall Length:
- 13.05 in
- Pipe or Tube Size:
- 2 in
- Mounting Orientation:
- Horizontal, Vertical
- Seal:
- FPM
- Vacuum Service Rating:
- Not Rated
- Silent Check:
- Standard
- Connection Gender - Side 2:
- Female
- Manufacturer Warranty:
- 3 yr
- Coefficient of Volume (Cv):
- 65
- Check Mechanism Material:
- CPVC
- Operating Temperature - Minimum:
- 34 Degrees F
- Height - Cap to Inlet Center:
- 5 1/2 in
- Connection Type - Side 2:
- Socket
- Connection Type - Side 1:
- Socket
- Average Surface Roughness (Ra):
- Not Applicable
- Includes Counterweight:
- No Counterweight
- Operating Temperature - Maximum:
- 190 Degrees F
- Maximum Pressure - Steam:
- Not Rated
- Nominal Valve Size:
- 2 in
- Check Mechanism:
- Piston
- Connection Size - Side 2:
- 2 in
- ANSI Flange Class:
- Not Applicable
- For Media:
- Water
- Valve Body Style:
- Y-Style
- Connection Size - Side 1:
- 2 in
- Connection Gender - Side 1:
- Female
- 3-A Standard Compliance:
- Not Rated
- Maximum Pressure - Operating:
- 150 psi
- Package Quantity:
- 1
-
-
