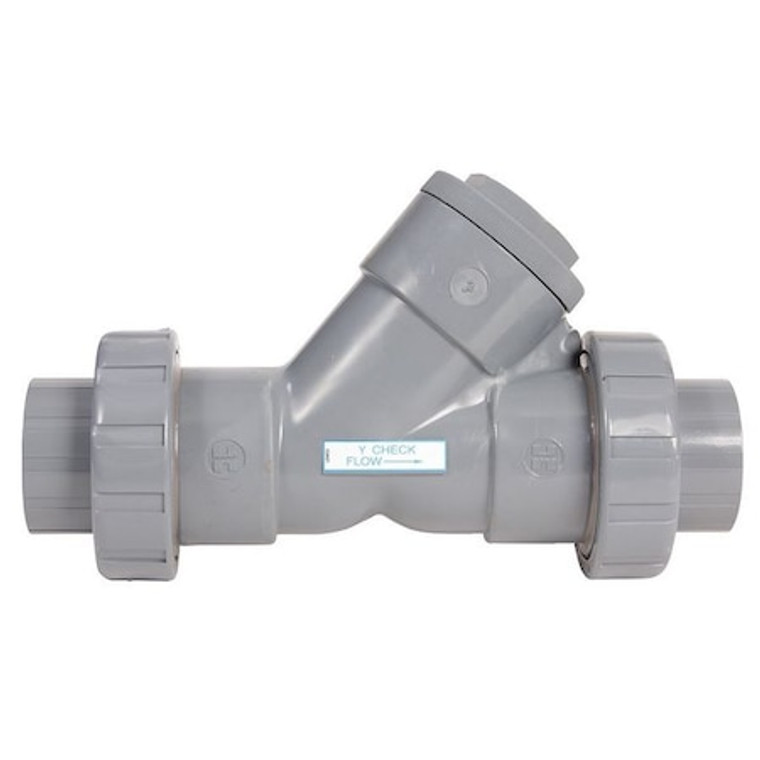

Y-Check Valve, True Union, 1", PVC/EPDM, Socket - YC10100SEU

Y-Check Valve, True Union, 1", PVC/EPDM, Socket - YC10100SEU

Hayward Flow Control
SKU:
YC10100SEU
|
UPC:
610377140720
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Item - Check Valves Check Valve, Flow Design Single, Mechanism and Body Design Y True Union, Body Material - Valves PVC, Pipe or Tube Size 1 in, Connection Type Socket x Socket, Cracking Pressure 1 psi, Mounting Orientation Horizontal, Vertical, Seal Material EPDM, Max. Temp. - Valves 140 Degrees F, Min. Temp. - Valves 40 Degrees F, Max. Water Pressure - Valves 150 psi @ 70 Degrees F, Max. Steam Pressure - Valves Not Rated, Seat Material EPDM, Flow - Valves 9 gpm, Full Flow - Valves Yes
Additional Information
Country of Origin:
United States
Pipe Size:
1";Hex Size=1 1/2""
Connection Type:
socket
Connection:
Socket
Body Material:
PVC
Max. Temp.:
140 Degrees F
Sub-Category:
PVC
Max. Temp. - Valves:
140 Degrees F
Body Material - Valves:
PVC
Seat Material:
EPDM
Overall Height:
5 1/8 in
Length:
8 31/32 in
Size:
1";Cracking Pressure=1 psi"
Flow Design:
Single
Connection Type - Check Valves:
Socket x Socket
Max. Pressure:
150 psi @ 70 Degrees F
Mechanism and Body Design:
Y True Union
Mounting Orientation - Check Valves:
Horizontal, Vertical
Pipe or Tube Size - Check Valves:
1 in
Max. Steam Pressure - Valves:
Not Rated
Material of Construction:
PVC
Cap to Inlet Center:
3 9/16 in
Application - Valves:
General Purpose
Flow - Valves:
9.0 gpm
Cracking Pressure - Check Valves:
1.0 psi
Full Flow - Valves:
Yes
Width:
3 in
Seat Material - Check Valves:
EPDM
Max. Water Pressure - Valves:
150 psi @ 70 Degrees F
Max. Water Pressure:
150 psi @ 70 Degrees F
Mounting Position:
Vertical or Horizontal
Item - Check Valves:
Check Valve
Min. Temp. - Valves:
40 Degrees F
Seal Material - Check Valves:
EPDM
Item:
True Union Y Check Valve
Flow:
9 gpm
Seal Material:
EPDM
Spring Material:
Not Applicable
Standards:
ASTM D1784
Overall Length:
8.97 in
Mounting Orientation:
Horizontal, Vertical
Pipe or Tube Size:
1 in
Seal:
EPDM
Connection Gender - Side 2:
Female
Maximum Pressure - Operating:
150 psi
Connection Gender - Side 1:
Female
3-A Standard Compliance:
Not Rated
Connection Size - Side 2:
1 in
Maximum Pressure - Steam:
Not Rated
Check Mechanism:
Piston
Connection Type - Side 2:
Socket
Connection Size - Side 1:
1 in
Silent Check:
Standard
ANSI Flange Class:
Not Applicable
Includes Counterweight:
No Counterweight
Height - Cap to Inlet Center:
3 5/8 in
Manufacturer Warranty:
3 yr
Average Surface Roughness (Ra):
Not Applicable
Check Mechanism Material:
PVC
Nominal Valve Size:
1 in
For Media:
Water
Connection Type - Side 1:
Socket
Operating Temperature - Maximum:
140 Degrees F
Valve Body Style:
Y-Style
Vacuum Service Rating:
Not Rated
Coefficient of Volume (Cv):
9
Operating Temperature - Minimum:
34 Degrees F
Package Quantity:
1
