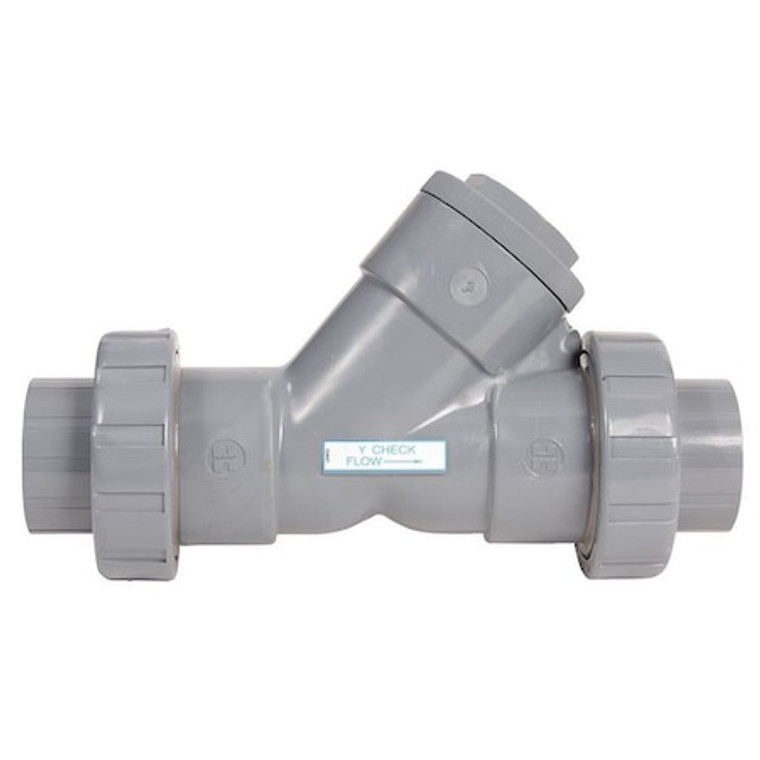

Y-Check Valve, True Union, 1-1/4", PVC/FPM, Socket - YC10125SU

Y-Check Valve, True Union, 1-1/4", PVC/FPM, Socket - YC10125SU

Hayward Flow Control
SKU:
YC10125SU
|
UPC:
610377147231
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Item - Check Valves Check Valve, Flow Design Single, Mechanism and Body Design Y True Union, Body Material - Valves PVC, Pipe or Tube Size 1 1/4 in, Connection Type Socket x Socket, Cracking Pressure 1 psi, Mounting Orientation Horizontal, Vertical, Seal Material FPM, Max. Temp. - Valves 140 Degrees F, Min. Temp. - Valves 40 Degrees F, Max. Water Pressure - Valves 150 psi @ 70 Degrees F, Max. Steam Pressure - Valves Not Rated, Seat Material FPM, Flow - Valves 26 gpm, Full Flow - Valves Yes
Additional Information
Country of Origin:
United States
Pipe Size:
1 1/4";Hex Size=2""
Connection Type:
socket
Connection:
Threaded
Body Material:
PVC
Pipe or Tube Size - Check Valves:
1 1/4 in
Max. Water Pressure:
150 psi @ 70 Degrees F
Length:
13 1/64 in
Seal Material - Check Valves:
FPM
Mounting Orientation - Check Valves:
Horizontal, Vertical
Item:
True Union Y Check Valve
Cracking Pressure:
1 psi
Application - Valves:
General Purpose
Connection Type - Check Valves:
Socket x Socket
Seat Material - Check Valves:
FPM
Size:
1 1/4";Max. Pressure=150 psi @ 70 Degrees F"
Mounting Position:
Vertical or Horizontal
Item - Check Valves:
Check Valve
Body Material - Valves:
PVC
Material of Construction:
PVC
Overall Height:
6 7/8 in
Min. Temp. - Valves:
40 Degrees F
Seat Material:
FPM
Max. Temp.:
140 Degrees F
Full Flow - Valves:
Yes
Max. Steam Pressure - Valves:
Not Rated
Width:
4 3/4 in
Max. Water Pressure - Valves:
150 psi @ 70 Degrees F
Flow:
26 gpm
Flow Design:
Single
Max. Temp. - Valves:
140 Degrees F
Cracking Pressure - Check Valves:
1.0 psi
Flow - Valves:
26.0 gpm
Mechanism and Body Design:
Y True Union
Sub-Category:
PVC
Seal Material:
FPM
Spring Material:
Not Applicable
Standards:
ASTM D1784
Overall Length:
13.01 in
Mounting Orientation:
Horizontal, Vertical
Pipe or Tube Size:
1 1/4 in
Seal:
FPM
Average Surface Roughness (Ra):
Not Applicable
Silent Check:
Standard
Check Mechanism:
Piston
Connection Size - Side 1:
1 1/4 in
Connection Type - Side 1:
Socket
Includes Counterweight:
No Counterweight
Valve Body Style:
Y-Style
Check Mechanism Material:
PVC
Connection Type - Side 2:
Socket
Operating Temperature - Minimum:
34 Degrees F
Vacuum Service Rating:
Not Rated
Connection Gender - Side 2:
Female
Maximum Pressure - Operating:
150 psi
Maximum Pressure - Steam:
Not Rated
Connection Size - Side 2:
1 1/4 in
Connection Gender - Side 1:
Female
For Media:
Water
Coefficient of Volume (Cv):
26
Operating Temperature - Maximum:
140 Degrees F
ANSI Flange Class:
Not Applicable
Manufacturer Warranty:
3 yr
3-A Standard Compliance:
Not Rated
Nominal Valve Size:
1 1/4 in
Package Quantity:
1
