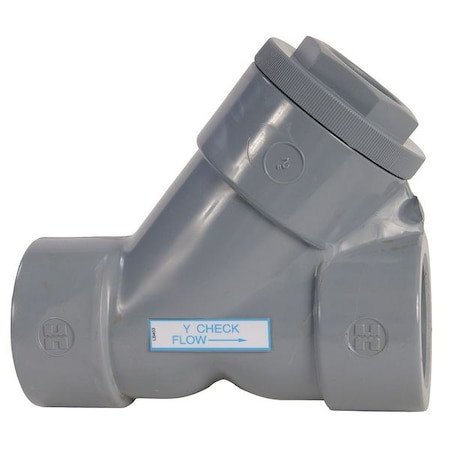

Y-Check Valve, 3", CPVC/FPM, Flanged - YC20300F

Y-Check Valve, 3", CPVC/FPM, Flanged - YC20300F

Hayward Flow Control
SKU:
YC20300F
|
UPC:
610377103763
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Item - Check Valves Check Valve, Flow Design Single, Mechanism and Body Design Y, Body Material - Valves CPVC, Pipe or Tube Size 3 in, Connection Type Flange x Flange, Cracking Pressure 1 psi, Mounting Orientation Horizontal, Vertical, Seal Material FPM, Max. Temp. - Valves 190 Degrees F, Min. Temp. - Valves 40 Degrees F, Max. Water Pressure - Valves 150 psi @ 70 Degrees F, Max. Steam Pressure - Valves Not Rated, Seat Material FPM, Flow - Valves 110 gpm, Full Flow - Valves Yes
Additional Information
Country of Origin:
United States
Pipe Size:
3";Hex Size=3 1/2""
Connection Type:
Flanged
Connection:
Flanged
Body Material:
CPVC
Length:
14 3/8 in
Sub-Category:
CPVC
Flow:
110 gpm
Pipe or Tube Size - Check Valves:
3 in
Seal Material:
FPM
Body Material - Valves:
CPVC
Max. Temp.:
190 Degrees F
Mounting Position:
Vertical or Horizontal
Seal Material - Check Valves:
FPM
Application - Valves:
General Purpose
Full Flow - Valves:
Yes
Max. Water Pressure - Valves:
150 psi @ 70 Degrees F
Width:
4 11/16 in
Min. Temp. - Valves:
40 Degrees F
Material of Construction:
CPVC
Connection Type - Check Valves:
Flange x Flange
Max. Water Pressure:
150 psi @ 70 Degrees F
Size:
3";Max. Pressure=150 psi @ 70 Degrees F"
Flow - Valves:
110 gpm
Max. Steam Pressure - Valves:
Not Rated
Mounting Orientation - Check Valves:
Horizontal, Vertical
Max. Temp. - Valves:
190 Degrees F
Overall Height:
9 19/32 in
Seat Material:
FPM
Flow Design:
Single
Mechanism and Body Design:
Y
Cracking Pressure - Check Valves:
1.0 psi
Seat Material - Check Valves:
FPM
Item - Check Valves:
Check Valve
Cracking Pressure:
1 psi
Item:
Y Check Valve
Overall Length:
16.77 in
Standards:
ASTM D1784
Spring Material:
Not Applicable
Mounting Orientation:
Horizontal, Vertical
Pipe or Tube Size:
3 in
Seal:
FPM
Connection Size - Side 2:
3 in
ANSI Flange Class:
Class 150
Check Mechanism:
Piston
Nominal Valve Size:
3 in
Vacuum Service Rating:
Not Rated
Average Surface Roughness (Ra):
Not Applicable
Operating Temperature - Minimum:
34 Degrees F
Coefficient of Volume (Cv):
110
Silent Check:
Standard
Connection Type - Side 2:
Flange
For Media:
Water
3-A Standard Compliance:
Not Rated
Valve Body Style:
Y-Style
Check Mechanism Material:
CPVC
Manufacturer Warranty:
3 yr
Maximum Pressure - Steam:
Not Rated
Connection Size - Side 1:
3 in
Operating Temperature - Maximum:
190 Degrees F
Maximum Pressure - Operating:
150 psi
Connection Type - Side 1:
Flange
Includes Counterweight:
No Counterweight
Package Quantity:
1
