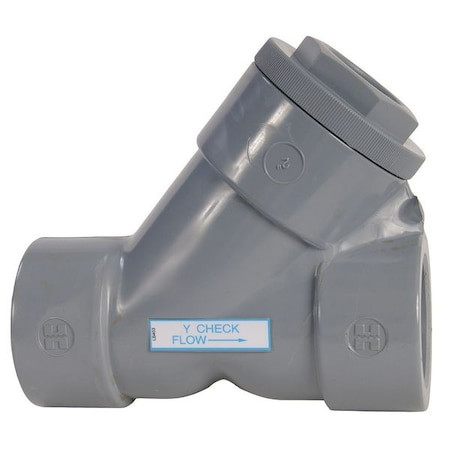

Y-Check Valve, 2", PVC/FPM, Threaded - YC10200T

Y-Check Valve, 2", PVC/FPM, Threaded - YC10200T

Hayward Flow Control
SKU:
YC10200T
|
UPC:
610377168670
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Item - Check Valves Check Valve, Flow Design Single, Mechanism and Body Design Y, Body Material - Valves PVC, Pipe or Tube Size 2 in, Connection Type FNPT x FNPT, Cracking Pressure 1 psi, Mounting Orientation Horizontal, Vertical, Seal Material FPM, Max. Temp. - Valves 140 Degrees F, Min. Temp. - Valves 40 Degrees F, Max. Water Pressure - Valves 150 psi @ 70 Degrees F, Max. Steam Pressure - Valves Not Rated, Seat Material FPM, Flow - Valves 65 gpm, Full Flow - Valves Yes
Additional Information
Country of Origin:
United States
Pipe Size:
2";Hex Size=2 3/8""
Connection Type:
Threaded
Connection:
Threaded
Body Material:
PVC
Application - Valves:
General Purpose
Sub-Category:
PVC
Seat Material:
FPM
Min. Temp. - Valves:
40 Degrees F
Cap to Inlet Center:
5 7/16 in
Item - Check Valves:
Check Valve
Flow:
65 gpm
Cracking Pressure - Check Valves:
1.0 psi
Pipe or Tube Size - Check Valves:
2 in
Cracking Pressure:
1 psi
Seat Material - Check Valves:
FPM
Max. Temp. - Valves:
140 Degrees F
Width:
3 3/8 in
Seal Material - Check Valves:
FPM
Flow Design:
Single
Body Material - Valves:
PVC
Max. Water Pressure - Valves:
150 psi @ 70 Degrees F
Connection Type - Check Valves:
FNPT x FNPT
Overall Height:
7 5/64 in
Size:
2";Material of Construction=PVC"
Max. Steam Pressure - Valves:
Not Rated
Seal Material:
FPM
Flow - Valves:
65.0 gpm
Max. Water Pressure:
150 psi @ 70 Degrees F
Max. Temp.:
140 Degrees F
Mounting Position:
Vertical or Horizontal
Length:
7 5/8 in
Mounting Orientation - Check Valves:
Horizontal, Vertical
Mechanism and Body Design:
Y
Full Flow - Valves:
Yes
Item:
Y Check Valve
Spring Material:
Not Applicable
Overall Length:
13.05 in
Standards:
ASTM D1784
Pipe or Tube Size:
2 in
Mounting Orientation:
Horizontal, Vertical
Seal:
FPM
Check Mechanism Material:
PVC
Connection Type - Side 2:
NPT
Connection Size - Side 2:
2 in
3-A Standard Compliance:
Not Rated
Check Mechanism:
Piston
Connection Gender - Side 2:
Female
Nominal Valve Size:
2 in
Maximum Pressure - Operating:
150 psi
Operating Temperature - Minimum:
34 Degrees F
Connection Gender - Side 1:
Female
Valve Body Style:
Y-Style
Silent Check:
Standard
Maximum Pressure - Steam:
Not Rated
ANSI Flange Class:
Not Applicable
Height - Cap to Inlet Center:
5 1/2 in
Includes Counterweight:
No Counterweight
Connection Size - Side 1:
2 in
For Media:
Water
Operating Temperature - Maximum:
140 Degrees F
Vacuum Service Rating:
Not Rated
Connection Type - Side 1:
NPT
Average Surface Roughness (Ra):
Not Applicable
Manufacturer Warranty:
3 yr
Coefficient of Volume (Cv):
65
Package Quantity:
1
