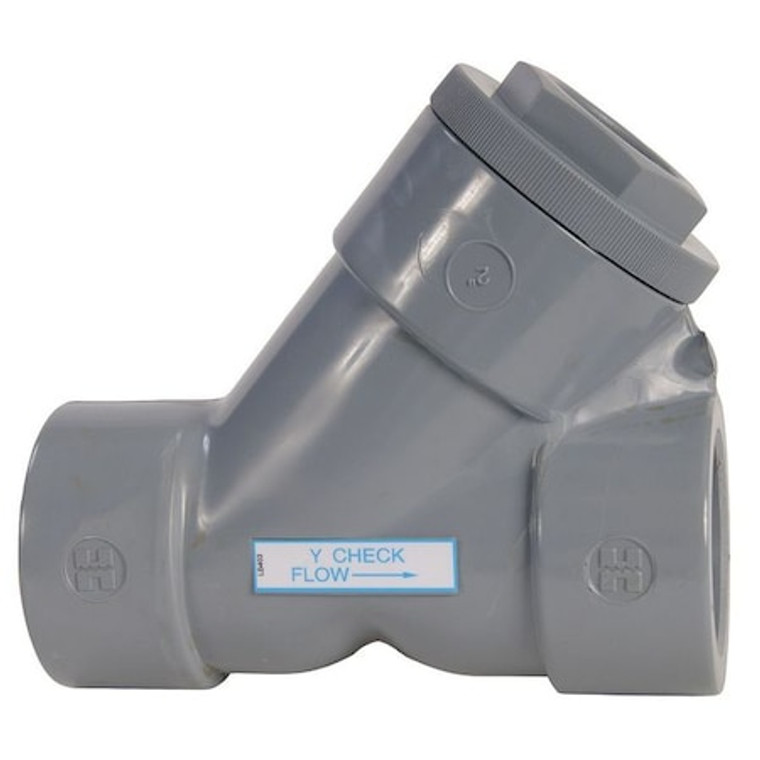

Y-Check Valve, 2", PVC/FPM, Socket - YC10200S

Y-Check Valve, 2", PVC/FPM, Socket - YC10200S

Hayward Flow Control
SKU:
YC10200S
|
UPC:
610377168663
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Item - Check Valves Check Valve, Flow Design Single, Mechanism and Body Design Y, Body Material - Valves PVC, Pipe or Tube Size 2 in, Connection Type Socket x Socket, Cracking Pressure 1 psi, Mounting Orientation Horizontal, Vertical, Seal Material FPM, Max. Temp. - Valves 140 Degrees F, Min. Temp. - Valves 40 Degrees F, Max. Water Pressure - Valves 150 psi @ 70 Degrees F, Max. Steam Pressure - Valves Not Rated, Seat Material FPM, Flow - Valves 65 gpm, Full Flow - Valves Yes
Additional Information
Country of Origin:
United States
Pipe Size:
2";Hex Size=2 3/8""
Connection Type:
socket
Connection:
Socket
Body Material:
PVC
Max. Water Pressure - Valves:
150 psi @ 70 Degrees F
Flow - Valves:
65.00 gpm
Seal Material:
FPM
Max. Temp.:
140 Degrees F
Cap to Inlet Center:
5-7/16";Flow Design=Single"
Length:
7.63";Connection Type - Check Valves=Socket x Socket"
Max. Temp. - Valves:
140 Degrees F
Body Material - Valves:
PVC
Sub-Category:
PVC
Mounting Position:
Vertical or Horizontal
Seal Material - Check Valves:
FPM
Min. Temp. - Valves:
40 Degrees F
Max. Pressure:
150 psi @ 70 Degrees F
Max. Steam Pressure - Valves:
Not Rated
Max. Water Pressure:
150 psi @ 70 Degrees F
Pipe or Tube Size - Check Valves:
2";Overall Height=7-5/64""
Mechanism and Body Design:
Y
Size:
2";Item=Y Check Valve"
Material of Construction:
PVC
Seat Material - Check Valves:
FPM
Mounting Orientation - Check Valves:
Horizontal, Vertical
Item - Check Valves:
Check Valve
Cracking Pressure - Check Valves:
1.000 psi
Application - Valves:
General Purpose
Width:
3.38";Flow=65 gpm"
Seat Material:
FPM
Full Flow - Valves:
Yes
Cracking Pressure:
1 psi
Overall Length:
13.05 in
Standards:
ASTM D1784
Spring Material:
Not Applicable
Pipe or Tube Size:
2 in
Mounting Orientation:
Horizontal, Vertical
Seal:
FPM
Connection Gender - Side 1:
Female
Check Mechanism Material:
PVC
3-A Standard Compliance:
Not Rated
Includes Counterweight:
No Counterweight
Maximum Pressure - Operating:
150 psi
Manufacturer Warranty:
3 yr
Average Surface Roughness (Ra):
Not Applicable
Check Mechanism:
Piston
Connection Size - Side 2:
2 in
Coefficient of Volume (Cv):
65
Maximum Pressure - Steam:
Not Rated
Connection Type - Side 2:
Socket
Valve Body Style:
Y-Style
Operating Temperature - Minimum:
34 Degrees F
Height - Cap to Inlet Center:
5 1/2 in
For Media:
Water
Silent Check:
Standard
Operating Temperature - Maximum:
140 Degrees F
Connection Gender - Side 2:
Female
Connection Type - Side 1:
Socket
ANSI Flange Class:
Not Applicable
Nominal Valve Size:
2 in
Connection Size - Side 1:
2 in
Vacuum Service Rating:
Not Rated
Package Quantity:
1
