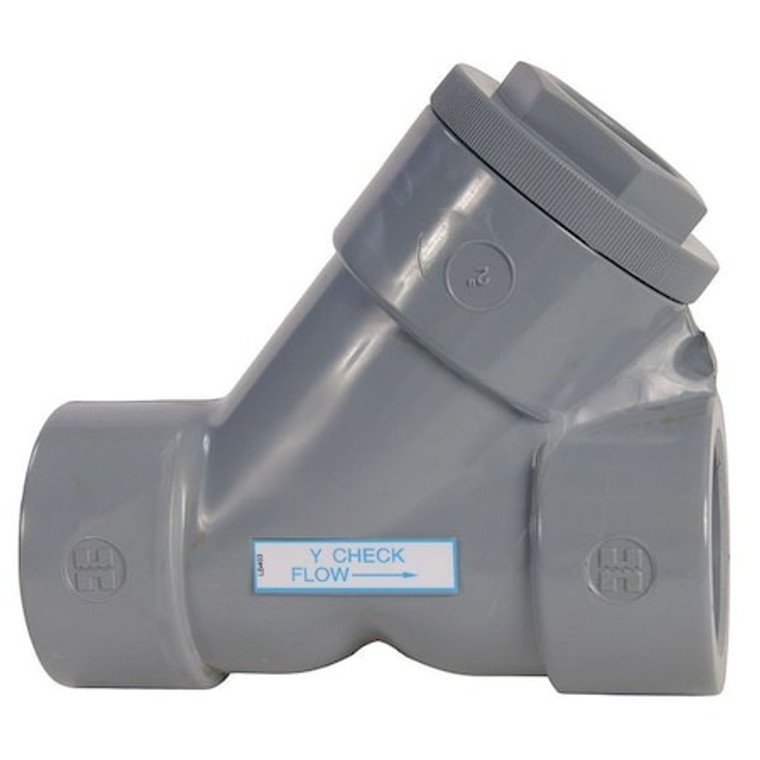

Y-Check Valve, 1", CPVC/EPDM, Socket - YC20100SE

Y-Check Valve, 1", CPVC/EPDM, Socket - YC20100SE

Hayward Flow Control
SKU:
YC20100SE
|
UPC:
610377146180
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Item - Check Valves Check Valve, Flow Design Single, Mechanism and Body Design Y, Body Material - Valves CPVC, Pipe or Tube Size 1 in, Connection Type Socket x Socket, Cracking Pressure 1 psi, Mounting Orientation Horizontal, Vertical, Seal Material EPDM, Max. Temp. - Valves 190 Degrees F, Min. Temp. - Valves 40 Degrees F, Max. Water Pressure - Valves 150 psi @ 70 Degrees F, Max. Steam Pressure - Valves Not Rated, Seat Material EPDM, Flow - Valves 9 gpm, Full Flow - Valves Yes
Additional Information
Country of Origin:
United States
Pipe Size:
1";Hex Size=1 1/2""
Connection Type:
socket
Connection:
Socket
Body Material:
CPVC
Seat Material:
EPDM
Connection Type - Check Valves:
Socket x Socket
Item - Check Valves:
Check Valve
Flow - Valves:
9.00 gpm
Mechanism and Body Design:
Y
Max. Temp.:
190 Degrees F
Size:
1";Min. Temp. - Valves=40 Degrees F"
Flow:
9 gpm
Max. Water Pressure:
150 psi @ 70 Degrees F
Sub-Category:
CPVC
Pipe or Tube Size - Check Valves:
1";Seat Material - Check Valves=EPDM"
Application - Valves:
General Purpose
Max. Steam Pressure - Valves:
Not Rated
Seal Material - Check Valves:
EPDM
Seal Material:
EPDM
Body Material - Valves:
CPVC
Overall Height:
4-5/8";Length=5.19""
Material of Construction:
CPVC
Full Flow - Valves:
Yes
Item:
Y Check Valve
Max. Temp. - Valves:
190 Degrees F
Max. Water Pressure - Valves:
150 psi @ 70 Degrees F
Cracking Pressure:
1 psi
Mounting Orientation - Check Valves:
Horizontal, Vertical
Cracking Pressure - Check Valves:
1.000 psi
Max. Pressure:
150 psi @ 70 Degrees F
Flow Design:
Single
Mounting Position:
Vertical or Horizontal
Width:
2";Overall Length=8.97 in"
Spring Material:
Not Applicable
Standards:
ASTM D1784
Pipe or Tube Size:
1 in
Mounting Orientation:
Horizontal, Vertical
Seal:
EPDM
Check Mechanism Material:
CPVC
Operating Temperature - Minimum:
34 Degrees F
Average Surface Roughness (Ra):
Not Applicable
For Media:
Water
Connection Gender - Side 1:
Female
Vacuum Service Rating:
Not Rated
Includes Counterweight:
No Counterweight
Manufacturer Warranty:
3 yr
Nominal Valve Size:
1 in
Connection Size - Side 2:
1 in
Maximum Pressure - Steam:
Not Rated
Connection Size - Side 1:
1 in
ANSI Flange Class:
Not Applicable
Valve Body Style:
Y-Style
Operating Temperature - Maximum:
190 Degrees F
Connection Type - Side 2:
Socket
3-A Standard Compliance:
Not Rated
Maximum Pressure - Operating:
150 psi
Check Mechanism:
Piston
Connection Type - Side 1:
Socket
Coefficient of Volume (Cv):
9
Silent Check:
Standard
Connection Gender - Side 2:
Female
Package Quantity:
1
