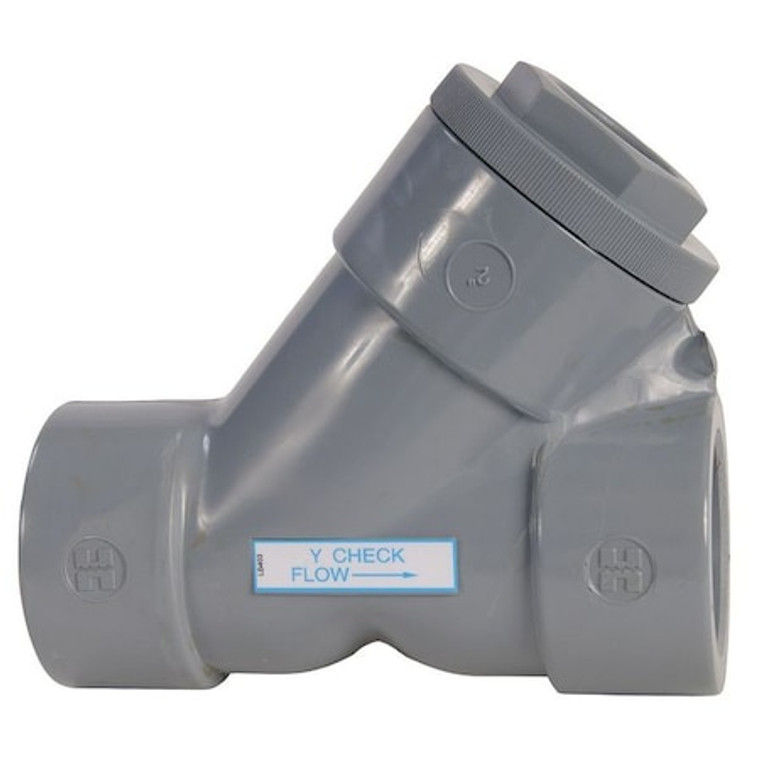

Y-Check Valve, 1/2", PVC/FPM, Socket - YC10050S

Y-Check Valve, 1/2", PVC/FPM, Socket - YC10050S

Hayward Flow Control
SKU:
YC10050S
|
UPC:
610377168502
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Item - Check Valves Check Valve, Flow Design Single, Mechanism and Body Design Y, Body Material - Valves PVC, Pipe or Tube Size 1/2 in, Connection Type Socket x Socket, Cracking Pressure 1 psi, Mounting Orientation Horizontal, Vertical, Seal Material FPM, Max. Temp. - Valves 140 Degrees F, Min. Temp. - Valves 40 Degrees F, Max. Water Pressure - Valves 150 psi @ 70 Degrees F, Max. Steam Pressure - Valves Not Rated, Seat Material FPM, Flow - Valves 0.8 gpm, Full Flow - Valves Yes
Additional Information
Country of Origin:
United States
Pipe Size:
1/2";Hex Size=1""
Connection Type:
socket
Connection:
Socket
Body Material:
PVC
Cracking Pressure:
1 psi
Max. Pressure:
150 psi @ 70 Degrees F
Body Material - Valves:
PVC
Connection Type - Check Valves:
Socket x Socket
Flow - Valves:
0.8 gpm
Application - Valves:
General Purpose
Mounting Orientation - Check Valves:
Horizontal, Vertical
Seat Material:
FPM
Overall Height:
2 15/16 in
Cap to Inlet Center:
2 5/16 in
Seal Material:
FPM
Max. Temp.:
140 Degrees F
Item - Check Valves:
Check Valve
Pipe or Tube Size - Check Valves:
1/2 in
Seat Material - Check Valves:
FPM
Cracking Pressure - Check Valves:
1.0 psi
Full Flow - Valves:
Yes
Mechanism and Body Design:
Y
Min. Temp. - Valves:
40 Degrees F
Material of Construction:
PVC
Flow Design:
Single
Max. Steam Pressure - Valves:
Not Rated
Mounting Position:
Vertical or Horizontal
Flow:
0.8 gpm
Size:
1/2";Width=1 3/8 in"
Max. Water Pressure - Valves:
150 psi @ 70 Degrees F
Max. Water Pressure:
150 psi @ 70 Degrees F
Length:
3 3/8 in
Item:
Y Check Valve
Sub-Category:
PVC
Seal Material - Check Valves:
FPM
Max. Temp. - Valves:
140 Degrees F
Standards:
ASTM D1784
Spring Material:
Not Applicable
Overall Length:
6.64 in
Pipe or Tube Size:
1/2 in
Mounting Orientation:
Horizontal, Vertical
Seal:
FPM
3-A Standard Compliance:
Not Rated
Connection Size - Side 2:
1/2 in
ANSI Flange Class:
Not Applicable
Silent Check:
Standard
Connection Size - Side 1:
1/2 in
Height - Cap to Inlet Center:
2 3/8 in
Maximum Pressure - Steam:
Not Rated
Average Surface Roughness (Ra):
Not Applicable
Vacuum Service Rating:
Not Rated
Connection Gender - Side 2:
Female
Valve Body Style:
Y-Style
Includes Counterweight:
No Counterweight
Operating Temperature - Minimum:
34 Degrees F
Operating Temperature - Maximum:
140 Degrees F
Nominal Valve Size:
1/2 in
Connection Type - Side 2:
Socket
For Media:
Water
Check Mechanism Material:
PVC
Manufacturer Warranty:
3 yr
Check Mechanism:
Piston
Connection Type - Side 1:
Socket
Coefficient of Volume (Cv):
0.8
Connection Gender - Side 1:
Female
Maximum Pressure - Operating:
150 psi
Package Quantity:
1
