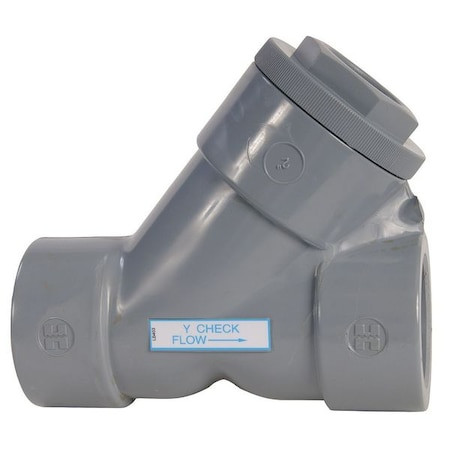

Y-Check Valve, 1/2", PVC/EPDM, Socket - YC10050SE

Y-Check Valve, 1/2", PVC/EPDM, Socket - YC10050SE

Hayward Flow Control
SKU:
YC10050SE
|
UPC:
610377818803
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Item - Check Valves Check Valve, Flow Design Single, Mechanism and Body Design Y, Body Material - Valves PVC, Pipe or Tube Size 1/2 in, Connection Type Socket x Socket, Cracking Pressure 1 psi, Mounting Orientation Horizontal, Vertical, Seal Material EPDM, Max. Temp. - Valves 140 Degrees F, Min. Temp. - Valves 40 Degrees F, Max. Water Pressure - Valves 150 psi @ 70 Degrees F, Max. Steam Pressure - Valves Not Rated, Seat Material EPDM, Flow - Valves 0.8 gpm, Full Flow - Valves Yes
Additional Information
Country of Origin:
United States
Pipe Size:
1/2";Hex Size=1""
Connection Type:
socket
Connection:
Socket
Body Material:
PVC
Max. Pressure:
150 psi @ 70 Degrees F
Item:
Y Check Valve
Pipe or Tube Size - Check Valves:
1/2 in
Mechanism and Body Design:
Y
Flow - Valves:
0.8 gpm
Max. Steam Pressure - Valves:
Not Rated
Mounting Orientation - Check Valves:
Horizontal, Vertical
Seat Material:
EPDM
Flow Design:
Single
Application - Valves:
General Purpose
Flow:
0.8 gpm
Seal Material - Check Valves:
EPDM
Width:
1 3/8 in
Connection Type - Check Valves:
Socket x Socket
Sub-Category:
PVC
Overall Height:
2 15/16 in
Full Flow - Valves:
Yes
Cracking Pressure - Check Valves:
1.0 psi
Mounting Position:
Vertical or Horizontal
Material of Construction:
PVC
Min. Temp. - Valves:
40 Degrees F
Item - Check Valves:
Check Valve
Max. Water Pressure:
150 psi @ 70 Degrees F
Cap to Inlet Center:
2 5/16 in
Seat Material - Check Valves:
EPDM
Cracking Pressure:
1 psi
Max. Water Pressure - Valves:
150 psi @ 70 Degrees F
Max. Temp.:
140 Degrees F
Max. Temp. - Valves:
140 Degrees F
Size:
1/2";Seal Material=EPDM"
Body Material - Valves:
PVC
Length:
3 3/8 in
Standards:
ASTM D1784
Overall Length:
6.64 in
Spring Material:
Not Applicable
Mounting Orientation:
Horizontal, Vertical
Pipe or Tube Size:
1/2 in
Seal:
EPDM
Height - Cap to Inlet Center:
2 3/8 in
Silent Check:
Standard
Coefficient of Volume (Cv):
0.8
Operating Temperature - Minimum:
34 Degrees F
Operating Temperature - Maximum:
140 Degrees F
For Media:
Water
Average Surface Roughness (Ra):
Not Applicable
3-A Standard Compliance:
Not Rated
Includes Counterweight:
No Counterweight
Connection Gender - Side 2:
Female
ANSI Flange Class:
Not Applicable
Connection Type - Side 1:
Socket
Connection Type - Side 2:
Socket
Vacuum Service Rating:
Not Rated
Manufacturer Warranty:
3 yr
Check Mechanism:
Piston
Valve Body Style:
Y-Style
Nominal Valve Size:
1/2 in
Maximum Pressure - Operating:
150 psi
Connection Size - Side 1:
1/2 in
Check Mechanism Material:
PVC
Maximum Pressure - Steam:
Not Rated
Connection Size - Side 2:
1/2 in
Connection Gender - Side 1:
Female
Package Quantity:
1
