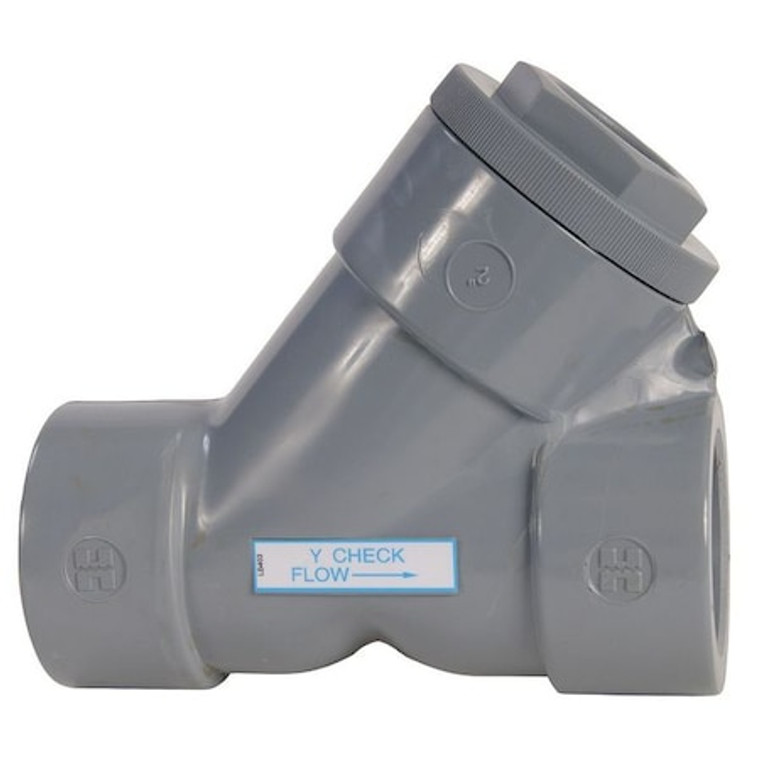

Y-Check Valve, 1/2", CPVC/FPM, Threaded - YC20050T

Y-Check Valve, 1/2", CPVC/FPM, Threaded - YC20050T

Hayward Flow Control
SKU:
YC20050T
|
UPC:
610377100205
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Item - Check Valves Check Valve, Flow Design Single, Mechanism and Body Design Y, Body Material - Valves CPVC, Pipe or Tube Size 1/2 in, Connection Type FNPT x FNPT, Cracking Pressure 1 psi, Mounting Orientation Horizontal, Vertical, Seal Material FPM, Max. Temp. - Valves 190 Degrees F, Min. Temp. - Valves 40 Degrees F, Max. Water Pressure - Valves 150 psi @ 70 Degrees F, Max. Steam Pressure - Valves Not Rated, Seat Material FPM, Flow - Valves 0.8 gpm, Full Flow - Valves Yes
Additional Information
Country of Origin:
United States
Pipe Size:
1/2";Hex Size=1""
Connection Type:
Threaded
Connection:
Threaded
Body Material:
CPVC
Flow:
0.8 gpm
Seat Material - Check Valves:
FPM
Min. Temp. - Valves:
40 Degrees F
Pipe or Tube Size - Check Valves:
1/2 in
Seal Material - Check Valves:
FPM
Mounting Position:
Vertical or Horizontal
Flow Design:
Single
Size:
1/2";Item - Check Valves=Check Valve"
Max. Pressure:
150 psi @ 70 Degrees F
Mechanism and Body Design:
Y
Max. Water Pressure - Valves:
150 psi @ 70 Degrees F
Connection Type - Check Valves:
FNPT x FNPT
Body Material - Valves:
CPVC
Sub-Category:
CPVC
Max. Temp.:
190 Degrees F
Length:
3 3/8 in
Item:
Y Check Valve
Seat Material:
FPM
Cracking Pressure - Check Valves:
1.0 psi
Application - Valves:
General Purpose
Material of Construction:
CPVC
Max. Water Pressure:
150 psi @ 70 Degrees F
Mounting Orientation - Check Valves:
Horizontal, Vertical
Overall Height:
2 15/16 in
Full Flow - Valves:
Yes
Max. Steam Pressure - Valves:
Not Rated
Cracking Pressure:
1 psi
Flow - Valves:
0.8 gpm
Max. Temp. - Valves:
190 Degrees F
Seal Material:
FPM
Width:
1 3/8 in
Overall Length:
6.64 in
Standards:
ASTM D1784
Spring Material:
Not Applicable
Mounting Orientation:
Horizontal, Vertical
Pipe or Tube Size:
1/2 in
Seal:
FPM
Nominal Valve Size:
1/2 in
Connection Size - Side 1:
1/2 in
Connection Gender - Side 1:
Female
Average Surface Roughness (Ra):
Not Applicable
3-A Standard Compliance:
Not Rated
Connection Type - Side 2:
NPT
Manufacturer Warranty:
3 yr
Includes Counterweight:
No Counterweight
Connection Gender - Side 2:
Female
ANSI Flange Class:
Not Applicable
For Media:
Water
Check Mechanism:
Piston
Maximum Pressure - Operating:
150 psi
Operating Temperature - Maximum:
190 Degrees F
Check Mechanism Material:
CPVC
Operating Temperature - Minimum:
34 Degrees F
Coefficient of Volume (Cv):
0.8
Connection Type - Side 1:
NPT
Maximum Pressure - Steam:
Not Rated
Silent Check:
Standard
Connection Size - Side 2:
1/2 in
Vacuum Service Rating:
Not Rated
Valve Body Style:
Y-Style
Package Quantity:
1
