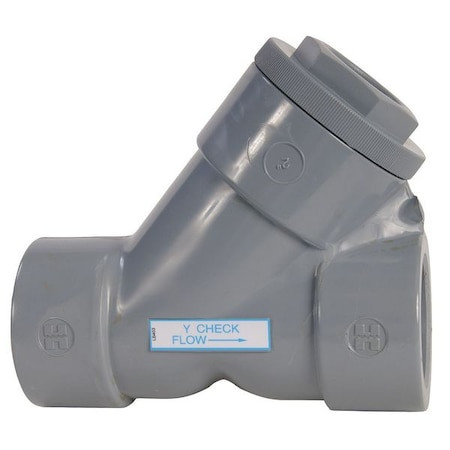

Y-Check Valve, 1-1/4", PVC/FPM, Flanged - YC10125F

Y-Check Valve, 1-1/4", PVC/FPM, Flanged - YC10125F

Hayward Flow Control
SKU:
YC10125F
|
UPC:
610377168588
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Item - Check Valves Check Valve, Flow Design Single, Mechanism and Body Design Y, Body Material - Valves PVC, Pipe or Tube Size 1 1/4 in, Connection Type Flange x Flange, Cracking Pressure 1 psi, Mounting Orientation Horizontal, Vertical, Seal Material FPM, Max. Temp. - Valves 140 Degrees F, Min. Temp. - Valves 40 Degrees F, Max. Water Pressure - Valves 150 psi @ 70 Degrees F, Max. Steam Pressure - Valves Not Rated, Seat Material FPM, Flow - Valves 26 gpm, Full Flow - Valves Yes
Additional Information
Country of Origin:
United States
Pipe Size:
1 1/4";Hex Size=2""
Connection Type:
Flanged
Connection:
Flanged
Body Material:
PVC
Max. Steam Pressure - Valves:
Not Rated
Application - Valves:
General Purpose
Flow - Valves:
26.0 gpm
Material of Construction:
PVC
Max. Water Pressure:
150 psi @ 70 Degrees F
Length:
9 33/64 in
Mechanism and Body Design:
Y
Max. Water Pressure - Valves:
150 psi @ 70 Degrees F
Seal Material - Check Valves:
FPM
Sub-Category:
PVC
Width:
2 5/8 in
Mounting Orientation - Check Valves:
Horizontal, Vertical
Flow Design:
Single
Min. Temp. - Valves:
40 Degrees F
Mounting Position:
Vertical or Horizontal
Cap to Inlet Center:
4 5/8 in
Body Material - Valves:
PVC
Max. Temp.:
140 Degrees F
Seat Material:
FPM
Connection Type - Check Valves:
Flange x Flange
Item - Check Valves:
Check Valve
Pipe or Tube Size - Check Valves:
1 1/4 in
Flow:
26 gpm
Cracking Pressure - Check Valves:
1.0 psi
Overall Height:
5 13/16 in
Max. Temp. - Valves:
140 Degrees F
Item:
Y Check Valve
Seal Material:
FPM
Size:
1 1/4";Full Flow - Valves=Yes"
Cracking Pressure:
1 psi
Max. Pressure:
150 psi @ 70 Degrees F
Seat Material - Check Valves:
FPM
Standards:
ASTM D1784
Overall Length:
13.01 in
Spring Material:
Not Applicable
Mounting Orientation:
Horizontal, Vertical
Pipe or Tube Size:
1 1/4 in
Seal:
FPM
Connection Size - Side 2:
1 1/4 in
Connection Size - Side 1:
1 1/4 in
Average Surface Roughness (Ra):
Not Applicable
Maximum Pressure - Operating:
150 psi
Silent Check:
Standard
Check Mechanism:
Piston
Connection Type - Side 2:
Flange
ANSI Flange Class:
Class 150
Check Mechanism Material:
PVC
Coefficient of Volume (Cv):
26
Operating Temperature - Minimum:
34 Degrees F
Valve Body Style:
Y-Style
For Media:
Water
3-A Standard Compliance:
Not Rated
Maximum Pressure - Steam:
Not Rated
Connection Type - Side 1:
Flange
Nominal Valve Size:
1 1/4 in
Vacuum Service Rating:
Not Rated
Includes Counterweight:
No Counterweight
Height - Cap to Inlet Center:
4 5/8 in
Operating Temperature - Maximum:
140 Degrees F
Manufacturer Warranty:
3 yr
Package Quantity:
1
