WirelessHandyBoxKit, 0.87inMastDia, Black - ZBRM21A0

WirelessHandyBoxKit, 0.87inMastDia, Black - ZBRM21A0

Schneider Electric
SKU:
ZBRM21A0
|
UPC:
785901863533
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description

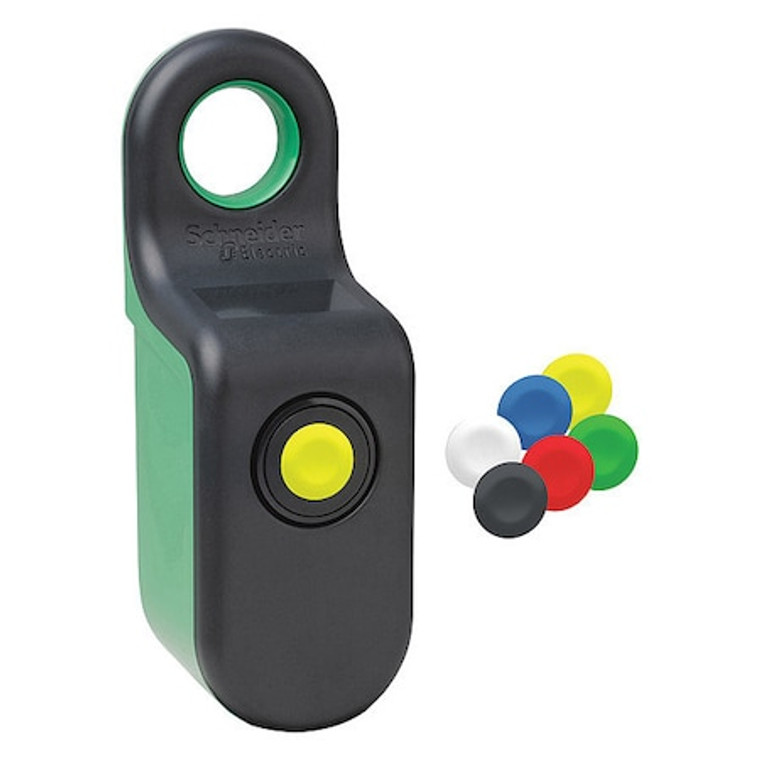

Wireless Handy Box Kit, For Use With Mobile and Static Applications, ZBRT1 Wireless Transmitter, Features 1 Push-Button Head, 1 Transmitter with Momentary Action, Plastic Handy Box, Set of 6-Colored Push-Button Caps
Additional Information
Country of Origin:
France
Item:
Wireless Handy Box
Material:
Plastic
Color:
Green
Overall Length:
6.42";Power Rating=3mW"
Features:
Wireless, No Battery Needed, Simple Action Button
Mast Diameter:
0.87";Standards=CSA C22.2 No 14, EN/IEC 60947-1, UL 508, EN/IEC 60947-5-1"
For Use With:
ZBRT1 Wireless Transmitter, Mobile and Static Applications
Ambient Air Temperature For Storage:
-40-70 °C
Operator Profile:
flush
Shock Resistance:
25 gn 6 ms) 6000 shocks IEC 60068-2-27 || 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Ambient Air Temperature For Operation:
-25-55 °C
Operating Travel:
4.3 mm total travel)
Communication Port Protocol:
Zigbee green power 2.4 GHz
Relative Humidity:
95-95 % 70-70 °C without condensation
Mounting Diameter:
22 mm
Kit Composition:
1 handy box || 1 transmitter || 1 set of caps || 1 push-button head 22 mm || 1 fixing collars
Operator Additional Information:
set of caps
Product Or Component Type:
wireless and batteryless transmitter
Contact Operation:
1 simple action push-button
Shape Of Signaling Unit Head:
round
Electromagnetic Compatibility:
electrostatic discharge immunity test 8 kV in free air (in insulating parts)) IEC 61000-4-2 || electrostatic discharge immunity test 4 kV on contact (on metal parts)) IEC 61000-4-2 || susceptibility to electromagnetic fields 20 V/m 80...3000 MHz) IEC
Acquisition Time:
2 ms
Type Of Operator:
spring return push-button with transmitter
Ik Degree Of Protection:
IK03 IEC 50102
Mechanical Robustness:
free fall resistance 1000 mm EN/IEC 60068-2-32
Emission Power:
3 mW
Vibration Resistance:
5 gn 11-500 Hz)IEC 60068-2-6 || +/- 10 mm 2-11 Hz)IEC 60068-2-6
Maximum Sensing Distance:
100 m in free field || 25 m transmitter in the handy box and receiver in a metal enclosure || 300 m transmitter in the handy box, receiver in metal enclosure and use relay-antenna
Fixing Collar Material:
plastic
Product Certifications:
EAC || BT 2006/95/EC || C-tick || UL || CSA || CCC
Mechanical Durability:
1000000 cycles
Operating Force:
25 N C/O changing electrical state
Bezel Material:
plastic
Response Time:
< 2 ms
Ip Degree Of Protection:
IP65 IEC 60529 front face) || IP65 UL Type 12 front face)
Compatible Product Type:
Mobile and Static Applications, Wireless Transmitters
Compatible with Series:
XB5R
Compatible with Manufacturer Model Number:
ZBRT1
Compatible with Mfr. Model No.:
ZBRT1
For Use with Mfr Model Number:
ZBRT1
Package Quantity:
1
