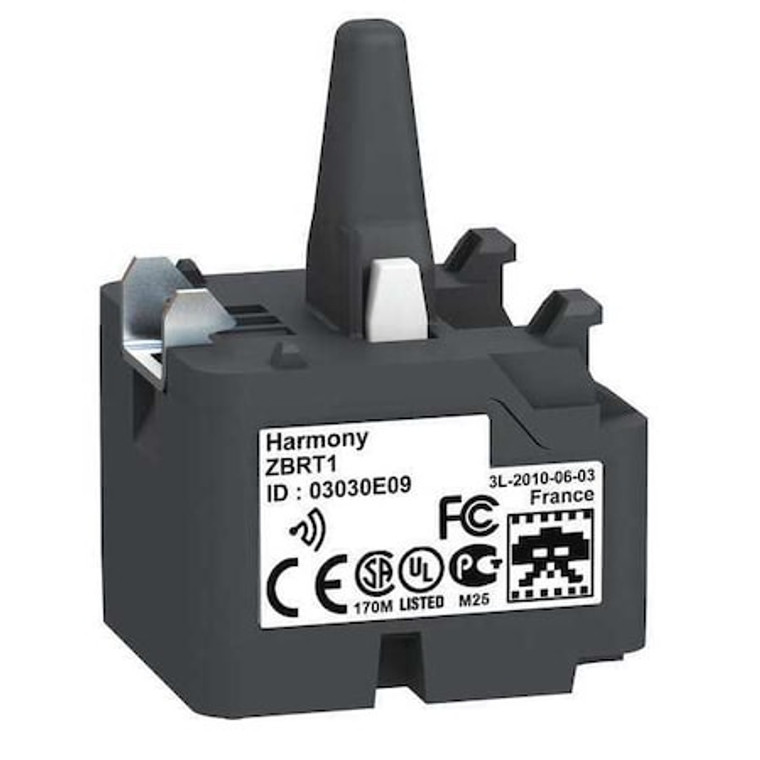

Wireless transmitter, 5m cable, vertical - ZBRT1

Wireless transmitter, 5m cable, vertical - ZBRT1

Schneider Electric
SKU:
ZBRT1
|
UPC:
785901590101
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Transmitter, For Use With 22 mm Wireless Push Buttons, Features 1 Radio Frame Sent at the Push of the Button, No Push-Button Head Included
Additional Information
Country of Origin:
France
Item:
Transmitter
Power Rating:
1 mW
Material:
Plastic
Color:
Green
Features:
1 Radio Frame Sent at the Push of the Button, No Push-Button Head Included
For Use With:
22 mm Wireless Push Buttons
Overall Length:
0.4 in
Standards:
CSA C22.2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, IP65, UL 508
Bezel Material:
plastic
Cad Overall Depth:
43 mm
Operating Travel:
4.3 mm total travel)
Ambient Air Temperature For Operation:
-40-70°C
Mounting Diameter:
22 mm
Electrical Composition Code:
PW1
Number Of Channels:
16
Maximum Sensing Distance:
100 m in free field || 25 m transmitter in a plastic box type XAL D and receiver in a metal enclosure || 300 m transmitter in box type XAL D, receiver in metal enclosure and use relay-antenna
Response Time:
< 2 ms
Device Short Name:
XB5R
Operating Force:
10 N C/O changing electrical state
Fixing Mode:
fixing nut beneath head 2-2.4 N.m
Antenna Type:
omnidirectional
Cad Overall Height:
41.5 mm
Transmission Frequency:
2405 MHz
Level Or Class:
5M00G7W
Acquisition Time:
2 ms
Max Power Consumption In W:
1 mW
Ip Degree Of Protection:
IP30 IEC 60529 back face)
Modulation Technique:
O-QPSK
Mechanical Durability:
1000000 cycles
Bandwidth:
5-5 MHz
Ambient Air Temperature For Storage:
-40-70°C
Cad Overall Width:
30 mm
Product Certifications:
CSA || GOST || CCC || C-tick || UL || BT 2006/95/EC
Communication Port Protocol:
Zigbee green power 2.4 GHz IEEE 802.15.4
Vibration Resistance:
5 gn 11-500 Hz)IEC 60068-2-6 || +/- 10 mm 2-11 Hz)IEC 60068-2-6
Antenna Gain:
0 dBi
Embedding Depth:
42 mm
Shock Resistance:
25 gn 6 ms) 6000 shocks IEC 60068-2-27 || 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Ik Degree Of Protection:
IK03 IEC 50102
Product Or Component Type:
wireless and batteryless transmitter
Electromagnetic Compatibility:
electrostatic discharge immunity test 8 kV in free air (in insulating parts)) IEC 61000-4-2 || electrostatic discharge immunity test 4 kV on contact (on metal parts)) IEC 61000-4-2 || susceptibility to electromagnetic fields 20 V/m 80 to 3000 MHz) IE
Mechanical Robustness:
free fall resistance 1000 mm EN/IEC 60068-2-32
Relative Humidity:
95-95 % -40-70°C without condensation
Radio Agreement:
ANATEL || ARIB T66 || FCC || ICASA || RSS
Compatible with Series:
XB4R, XB5R
Compatible Product Type:
Wireless Push Buttons, Batteryless Push Buttons
Package Quantity:
1
