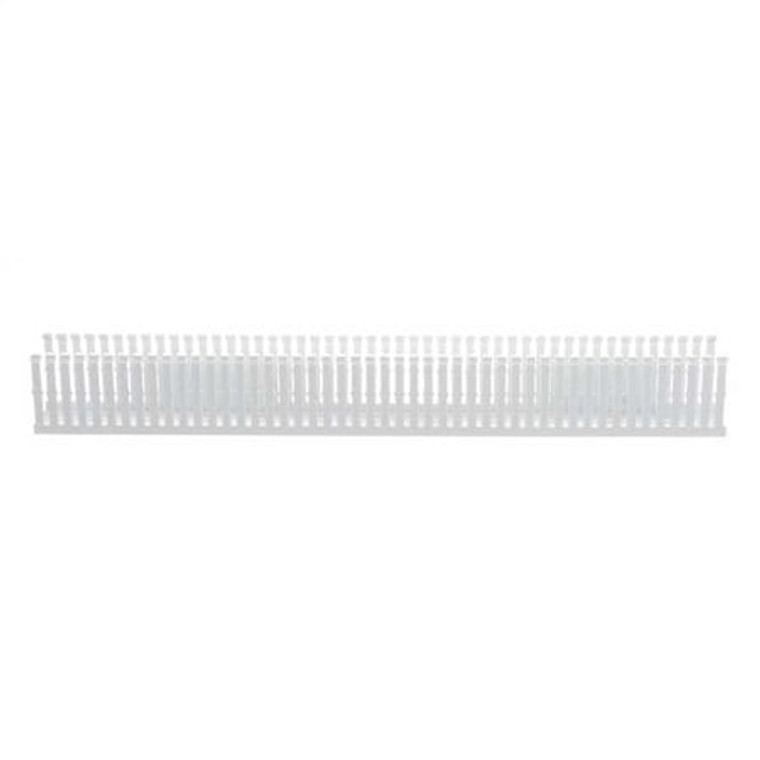

Wire Duct, Narrow Slot, White, 2.25 W x 3 D - F2X3WH6

Wire Duct, Narrow Slot, White, 2.25 W x 3 D - F2X3WH6

Panduit
SKU:
F2X3WH6
|
UPC:
74983375561
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Wiring Duct, Wall Type Narrow Slot, Width 2 1/4 in, Height 3 1/8 in, Slot Width 0.2 in, Material Lead-Free PVC, Color White, Mounting Style Screw Mount, Length 72 in, Slot Height 2.1 in, Slot-to-Slot Centerline 1/2 in, Standards CE Compliant, RoHS, UL Listed, Compatible Cover Style Snap-On, Nominal Height 3 in, Nominal Width 2 in
Additional Information
Country of Origin:
United States
Item:
Wiring Duct
Mounting Style:
Screw Mount
Wall Type:
Slotted
Color:
White
Material:
Lead-Free PVC
Length:
72 in
Width:
2 1/4 in
Height:
3 1/8 in
Slot Height:
2.1 in
Slot Width:
0.2 in
Slot-to-Slot Centerline:
1/2 in
Standards:
CE Compliant, RoHS, UL Listed
Length (Straight Wireway):
6 ft
Compatible Cover Style:
Snap-On
Nominal Width:
2 in
Nominal Height:
3 in
Includes:
Base Only
Application:
Narrow slot/finger design provides more slots to fit the spacing of high-density terminal block applications
Measurement System:
Metric
Flammability Rating:
UL94V-0
Slot Width (mm):
5
Overall Width (mm):
57.2
Wiring Duct Type:
F
Overall Length (ft.):
6
Cover Part Number:
C2WH6
Overall Length (m):
1.8
Wiring Duct Style:
Narrow Slot Wiring Duct
Product Type:
Base Wiring Duct
Overall Height (mm):
79.8
Overall Width (In.):
2.25
Slot Width (In.):
0.2
Overall Height (In.):
3.14
Mount Method:
Mounting Holes
Product Color:
White
Product Name:
Panduct Duct
Product Line:
Panduct
Environmentally Friendly:
Yes
Product Material:
Polyvinyl Chloride (PVC)
Cable Manager Type:
Duct
Standards Met:
RoHS Compliant, UL Recognized, CE Compliant; CSA Approved
Sub Brand:
Panduct®
Package Quantity:
1
