Water Heater Vent Package, Side Wall - VP-2F

Name: Water Heater Vent Package, Side Wall - VP-2F
Brand: Tjernlund Products
SKU: VP-2F
Price: 601.44 USD
Availability: InStock

Tjernlund Products

SKU:

VP-2F

UPC:

80956955449

Availability:

In Stock

(No reviews yet)

Water Heater Vent Package, Compatible Manufacturer Part Number 8504140, 8505032, For BTU Range Up to 60,000 BTU, Mounting Orientation Horizontal, Operating Voltage 115V AC, Overall Depth 10 in, Overall Height 10.5 in, Overall Length 10.5 in, Overall Width 7.5 in, Product Type Water Heater Vent Package, Vent Connection Size 3 in, Venting Distance 75 ft, Cable/Wire Length 25 ft, Current 1 A

Country of Origin:: United States
Item:: Water Heater Vent Package
Voltage:: 115 V
Application:: Upgrade Water Heaters from Electric to Gas or in New Construction Where No Chimney Exists
Function:: Allows Venting Up to 75 Feet away from a Side Wall

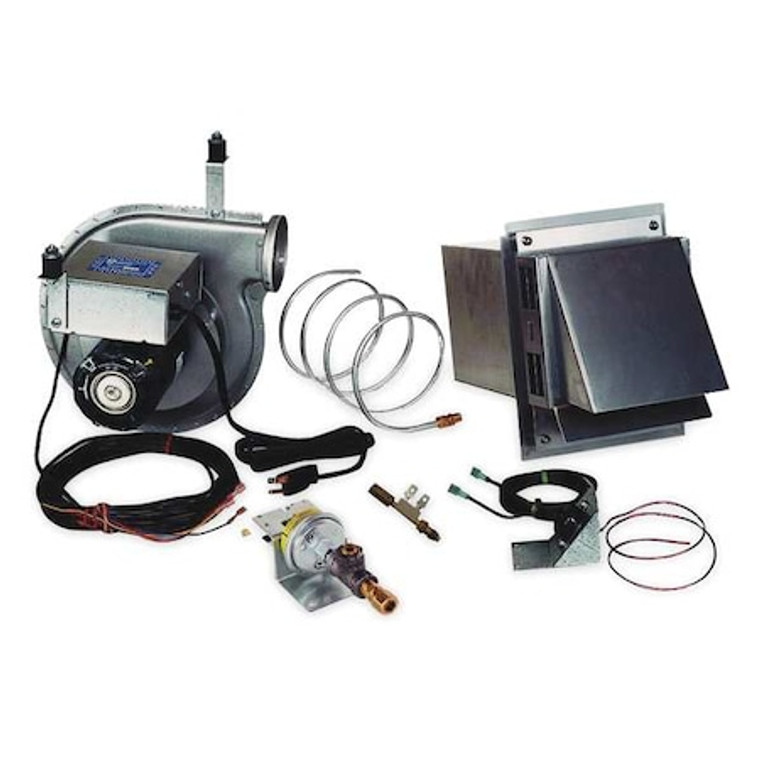

Includes:: 24V Control Cables, Factory Pre-Wired Electrical Box, Gas Pressure Switch, Linear Limit Spillage Switch, Post Purge Relay/Timer, Thermocouple Junction Adapter, Vent Hood
Standards:: CSA Certified
Motor Amps:: 1.0 A
Characteristics:: Compatible with any Gas Water Heater Up to 60,000 BTUs
Outside Diameter:: 3 in
Features:: Factory-Wired, Post-Purge Timer Keeps Power Venter Operating After Burner Cycle to Purge System of Residual Gases, System Controls Shut Off Heater if Vent System Fails
Overall Height:: 10.5 in
Overall Width:: 7.5 in
Material:: Aluminum (Tube)
Overall Length:: 10.5 in
Product Type:: Water Heater Vent Package
Vent Connection Size:: 3 in
Includes Mounting Hardware:: Yes
For BTU Range:: Up to 60,000 BTU
Operating Voltage:: 115V AC
Compatible Manufacturer Part Number:: 8504140, 8505032
Current:: 1 A
Mounting Orientation:: Horizontal
Cable/Wire Length:: 25 ft
Venting Distance:: 75 ft
Overall Depth:: 10 in
Package Quantity:: 1
