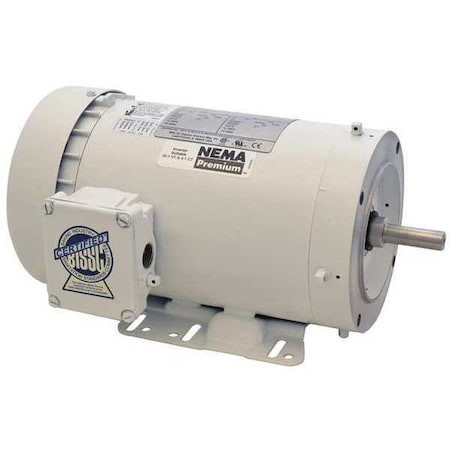

Washdown Motor, TEFC, 2 HP, 3450 rpm, 56HC - 48ZJ92

Name: Washdown Motor, TEFC, 2 HP, 3450 rpm, 56HC - 48ZJ92
Brand: Dayton
SKU: 48ZJ92
Price: 968.29 USD
Availability: InStock

Dayton

SKU:

48ZJ92

UPC:

190735905210

Availability:

In Stock

(No reviews yet)

Washdown Motor, Three Phase, Motor Design 3-Phase, 2 HP, Nameplate RPM 3,505, Voltage 230/460V AC, Full Load Amps 5.8/2.8 A, 56HC Frame, 60/50 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Mounting Type Face/Base, Motor Mounting Position Horizontal, Motor Frame Material Rolled Steel, Endshield Material Cast Aluminum

Country of Origin:: Mexico
Item:: Washdown Motor
Motor Design:: 3-Phase
Phase:: Three
HP:: 2
RPM Range:: 3,001-3,600
Voltage:: 230/460V AC
Frame:: 56HC
Motor Frame Material:: Rolled Steel
Motor Thermal Protection:: None
Motor Enclosure Design:: Totally Enclosed Fan-Cooled
Motor Shaft Design:: Keyed
Max. Ambient Temp.:: 40 Degrees C
Shaft Dia.:: 5/8 in
Nameplate RPM:: 3,505
Inverter Rated:: No
CC Number:: CC030A
Standards:: CSA (258525), UL (E47479)
Hz:: 60/50 Hz
Body Dia.:: 6.5 in
Shaft Material:: Stainless Steel
Motor Application:: Washdown
Voltage Compatibility:: 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Shaft Length:: 1 7/8 in
Nominal Efficiency:: 86.5 %
Motor Mounting Position:: Horizontal
Conduit Box:: Oversize Cast Aluminum with Nitrile Gasket
Includes:: Shaft Key
Motor Service Factor:: 1.15
Full Load Amps:: 5.8/2.8 A
Motor Shaft Rotation:: CW/CCW
Endshields:: Cast Aluminum
Drain Plugs:: (2) Drain Plugs In Conduit Box, (4) Drain Plugs In Each End Bells
Application:: Washguard
Motor Mounting Type:: Face/Base
Duty:: Continuous
NEMA Design:: B
Motor Bearings:: Ball
Overall Length:: 12 5/8 in
Length Less Shaft:: 10 3/4 in
Duty Cycle:: Continuous
Endshield Material:: Cast Aluminum
Package Quantity:: 1
