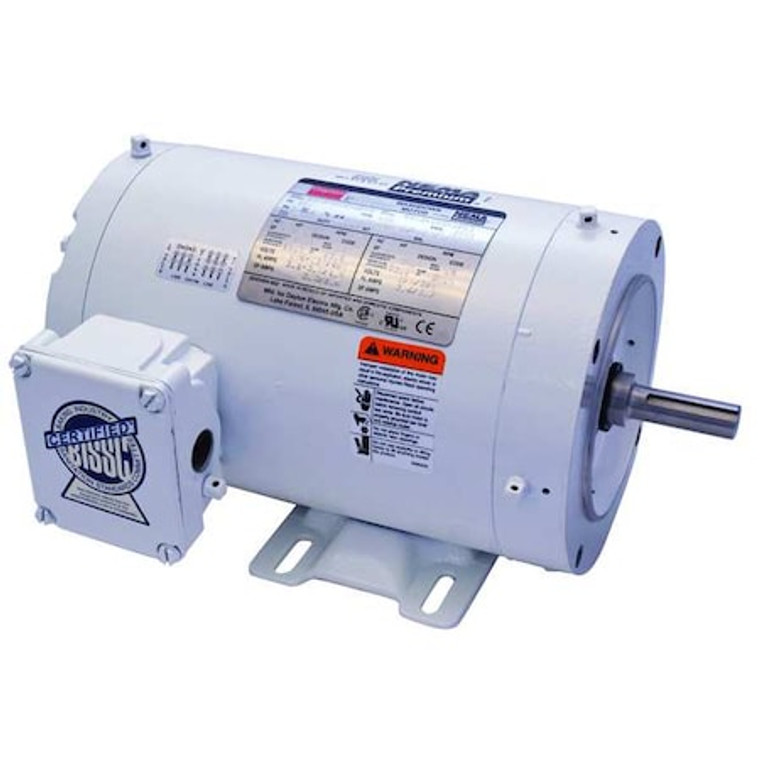

Washdown Motor, 3 Ph, TENV, 1 HP, 1725 rpm - 1TRZ6

Name: Washdown Motor, 3 Ph, TENV, 1 HP, 1725 rpm - 1TRZ6
Brand: Dayton
SKU: 1TRZ6
Price: 796.94 USD
Availability: InStock

Dayton

SKU:

1TRZ6

UPC:

190735147696

Availability:

In Stock

(No reviews yet)

Washdown Motor, Three Phase, Motor Design 3-Phase, 1 HP, Nameplate RPM 1,750, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 3.0/1.5 A, 56C Frame, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Nonventilated, Motor Mounting Type Face/Base, Motor Mounting Position Horizontal

Country of Origin:: Mexico
Item:: Washdown Motor
Motor Design:: 3-Phase
Phase:: Three
HP:: 1
RPM Range:: 1,701-1,800
Voltage:: 230/460V AC
Frame:: 56C
Motor Frame Material:: Epoxy Coated Rolled Steel
Motor Thermal Protection:: None
Motor Enclosure Design:: Totally Enclosed Nonventilated
Nameplate RPM:: 1,750
Conduit Box:: Cast Oversized Gasketed
CC Number:: CC030A
Ins. Class:: F
Frame Material:: Epoxy Coated
Motor Service Factor:: 1.15
Max. Ambient Temp.:: 40 Degrees C
Motor Shaft Rotation:: CW/CCW
Motor Shaft Design:: Keyed
NEMA Design:: B
Voltage Compatibility:: 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Shaft Material:: 303 Stainless Steel
Nominal Efficiency:: 85.5 %
Hz:: 60 Hz
Motor Mounting Type:: Face/Base
Motor Mounting Position:: Horizontal
Shaft Length:: 2 in
Drain Plugs:: (4) Each End, (2) In Conduit Box
Motor Application:: Washdown
Standards:: CSA Certified (LR63596), UL Recognized (E47479), USDA Approved
Shaft Dia.:: 5/8 in
Duty:: Continuous
Overall Length:: 11 9/16 in
Motor Bearings:: Ball
Full Load Amps:: 3.0/1.5 A
Length Less Shaft:: 10 1/4 in
Inverter Rated:: Yes
No. of Speeds:: 1
Duty Cycle:: Continuous
Package Quantity:: 1
