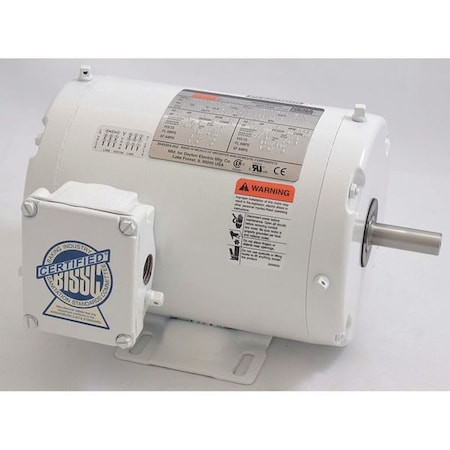

Washdown Motor, 3 Ph, TENV, 1/2 HP, 1725 rpm - 1TTC3

Name: Washdown Motor, 3 Ph, TENV, 1/2 HP, 1725 rpm - 1TTC3
Brand: Dayton
SKU: 1TTC3
Price: 616.39 USD
Availability: InStock

Dayton

SKU:

1TTC3

UPC:

190735147887

Availability:

In Stock

(No reviews yet)

Washdown Motor, Three Phase, Motor Design 3-Phase, 1/2 HP, Nameplate RPM 1,750, Voltage 230/460V AC, Full Load Amps 1.6./0.8 A, 56 Frame, 60/50 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Nonventilated, Motor Mounting Type Rigid Base, Motor Mounting Position Horizontal, Motor Frame Material Epoxy Coated Rolled Steel

Country of Origin:: Mexico
Item:: Washdown Motor
Motor Design:: 3-Phase
Phase:: Three
HP:: 1/2
RPM Range:: 1,701-1,800
Voltage:: 230/460V AC
Frame:: 56
Motor Frame Material:: Epoxy Coated Rolled Steel
Motor Thermal Protection:: None
Motor Enclosure Design:: Totally Enclosed Nonventilated
Shaft Material:: 303 Stainless Steel
Nameplate RPM:: 1,750
NEMA Design:: B
Duty:: Continuous
Motor Bearings:: Ball
Conduit Box:: Cast Oversized Gasketed
Motor Mounting Position:: Horizontal
Hz:: 60/50 Hz
Motor Application:: Washdown
Full Load Amps:: 1.6./0.8 A
Inverter Rated:: Yes
Endshields:: Cast Aluminum
Overall Length:: 10 13/16 in
Drain Plugs:: (4) Each End, (2) In Conduit Box
Includes:: Side-Mounted Conduit Box
Frame Material:: Epoxy Coated
Body Dia.:: 6.5 in
Application:: High Humidity, Wet Environments and Areas Where Motor is Occasionally Exposed to High Pressure Washdowns
Motor Shaft Design:: Keyed
Voltage Compatibility:: 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Standards:: CSA Certified (258525), UL Recognized (E47479), USDA Approved
Shaft Dia.:: 5/8 in
Max. Ambient Temp.:: 40 Degrees C
Motor Shaft Rotation:: CW/CCW
Motor Mounting Type:: Rigid Base
Shaft Length:: 1 7/8 in
CC Number:: CC030A
Motor Service Factor:: 1.15
Length Less Shaft:: 8 7/8 in
Nominal Efficiency:: 78.5 %
Ins. Class:: F
Endshield Material:: Cast Aluminum
Duty Cycle:: Continuous
Package Quantity:: 1
