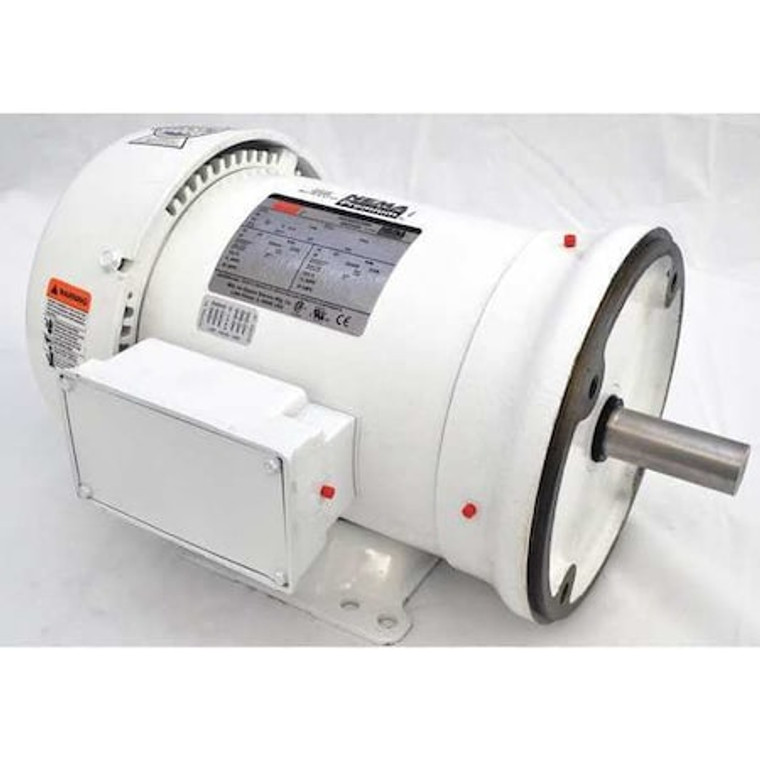

Washdown Motor, 3 Ph, TEFC, 5 HP, 1760 rpm - 5XAU1

Name: Washdown Motor, 3 Ph, TEFC, 5 HP, 1760 rpm - 5XAU1
Brand: Dayton
SKU: 5XAU1
Price: 1527.19 USD
Availability: InStock

Dayton

SKU:

5XAU1

UPC:

190735355534

Availability:

In Stock

(No reviews yet)

Washdown Motor, Three Phase, Motor Design 3-Phase, 5 HP, Nameplate RPM 1,755, Voltage 230/460V AC, Full Load Amps 12.5/6.2 A, 184TC Frame, 60/50 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Mounting Type Face/Base, Motor Mounting Position Horizontal, Motor Frame Material Epoxy Coated Rolled Steel

Country of Origin:: Mexico
Item:: Washdown Motor
Motor Design:: 3-Phase
Phase:: Three
HP:: 5
RPM Range:: 1,701-1,800
Voltage:: 230/460V AC
Frame:: 184TC
Motor Frame Material:: Epoxy Coated Rolled Steel
Motor Thermal Protection:: None
Motor Enclosure Design:: Totally Enclosed Fan-Cooled
NEMA Design:: B
Body Dia.:: 8.38 in
Application:: High Humidity, Wet Environments and Areas Where Motor is Occasionally Exposed to High Pressure Washdowns
Standards:: CSA Certified (LR225293), UL Recognized (E47479), USDA Approved
Voltage Compatibility:: 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Motor Shaft Rotation:: CW/CCW
Endshields:: Cast Aluminum
Length Less Shaft:: 14 1/8 in
Frame Material:: Epoxy Coated
Hz:: 60/50 Hz
Footnotes:: 8, 11
Shaft Length:: 2 5/8 in
Motor Application:: Washdown
Ins. Class:: F
Max. Ambient Temp.:: 40 Degrees C
Nominal Efficiency:: 89.5 %
Overall Length:: 15 in
Inverter Rated:: Yes
Motor Bearings:: Ball
Motor Mounting Type:: Face/Base
Shaft Material:: 303 Stainless Steel
Drain Plugs:: (3) Shaft End, (4) Lead End, (2) In Conduit Box
CC Number:: CC030A
Full Load Amps:: 12.5/6.2 A
Motor Mounting Position:: Horizontal
Shaft Dia.:: 1 1/8 in
Nameplate RPM:: 1,755
Conduit Box:: Cast Aluminum with Buna-N Gasketed Cover
Motor Shaft Design:: Keyed
Duty:: Continuous
Motor Service Factor:: 1.15
Endshield Material:: Cast Aluminum
Duty Cycle:: Continuous
Package Quantity:: 1
