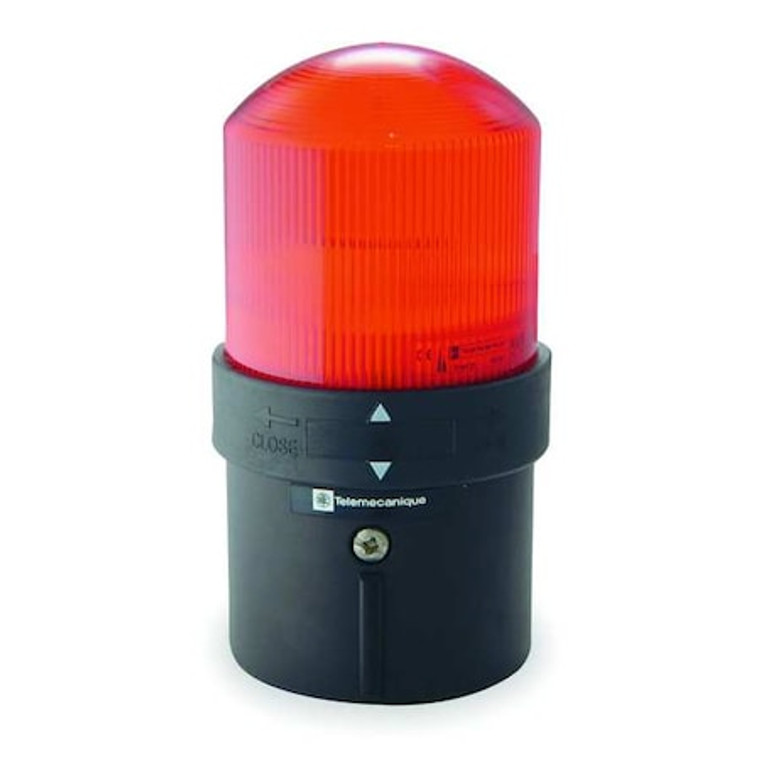

Warning Light, LED, Red, 24VAC or 24-48VDC - XVBL4B4

Warning Light, LED, Red, 24VAC or 24-48VDC - XVBL4B4

Schneider Electric
SKU:
XVBL4B4
|
UPC:
785901844198
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Warning Light W/O Lamp, Color Red, Lamp Type LED, Flashes per Minute 60, Light Output 7W, Lamp Life 50,000 hr, Lens Design Screw-on Dome, Lens Material Polycarbonate, Housing Material Glass Reinforced Polyamide, Mounting Surface, Operating Temp. -40 Degrees to 158 Degrees F, Rating IP65, NEMA 1, 4X, 12, Power Source Wire, Current Drawn 1300mA AC/850mA DC, Height 5 1/2 in, Voltage 24V AC/24 to 48V DC
Additional Information
Country of Origin:
Czechia
Item:
Warning Light W/O Lamp
Color:
Red
Lamp Type:
LED
Power Source:
Wire
Lamp Life:
50,000 hr
Lens Material:
Polycarbonate
Flashes per Minute:
60
Height:
5 1/2 in
Housing Material:
Glass Reinforced Polyamide
Standards:
CCC, CSA C22.2 No. 14, EAC, EN/IEC 60947-5-1, RoHS, UL 508
Diameter:
2 3/4 in
Features:
Dust Resistant, Impact Resistant
Rating:
IP65, NEMA 1, 4X, 12
Operating Temp.:
-40 Degrees to 158 Degrees F
Voltage:
24V AC/24 to 48V DC
Current Drawn:
1300mA AC/850mA DC
Light Output:
7W
Lens Design:
Screw-on Dome
Mounting:
Surface
Product Type:
Warning Light
Connection Type:
Screw Terminal
NEMA Rating:
NEMA 4X
Overall Length:
Not Applicable
Lens Shape:
Dome
Light Source:
LED
Operating Temperature - Minimum:
-40 Degrees F
For Location:
Indoor
Lens Color:
Red
Operating Current:
0.850 A @ 24 to 48V DC, 1.300 A @ 24V AC
Mounting Style:
Surface Mount
Brightness Selection:
Fixed Brightness
Battery Size:
Not Applicable
Vibration:
No Vibration
Lamp Color:
Red
Water Resistance:
Water Resistant
IP Rating:
IP65, IP66
Overall Diameter:
2 3/4 in
Wattage:
7 W
Control Protocol:
Direct Wire
Number of Batteries:
Not Applicable
Runtime:
Not Applicable
Light Operating Mode:
Flashing
Operating Temperature - Maximum:
158 Degrees F
Overall Width:
Not Applicable
Lifespan:
100,000 hr
Overall Depth:
5 15/32 in
Includes Batteries:
Not Applicable
Package Quantity:
1
