Viega ProPress ball valve, 1-1/2" x 1-1/2" - 24020
Manufacturer: Viega
MFR # 24020
Log in for pricing
Viega ProPress ball valve, 2" x 2" - 24025
ViegaLog in for pricing
(No reviews yet)
Write a Review
Viega

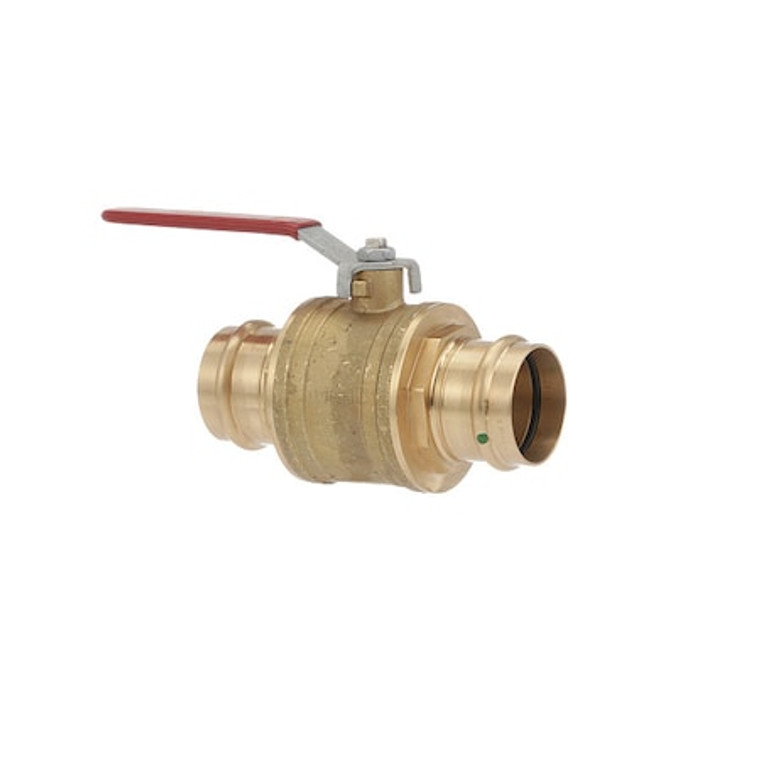

Viega ProPress ball valve, 2" x 2" - 24025
Manual Two-Way Ball Valve, Body Material Brass, Bronze, For Media Water, Valve Construction Three-Piece, Nominal Valve Size 2 in, Valve Body Style Straight, 3-A Standard Compliance Not Rated, Average Surface Roughness (Ra) Not Applicable, Maximum Pressure - Operating 200 psi, Maximum Pressure - Steam Not Rated, Maximum Pressure - Combustible Gas Not Rated, Vacuum Service Rating -29.2 in Hg, Ball Material Chrome-Plated Brass, Ball Port Style Full Port, Handle - Locking Non-Locking
- Country of Origin:
- Italy
- Pipe Size:
- 2";Body Material=Brass, Bronze"
- Body Style:
- Inline
- Tube Size:
- 2 x 2""
- Stem Type:
- Blowout Proof
- Seat Material:
- PTFE
- Body Seal Material:
- EPDM
- Valve Structure:
- 3-Piece
- Max. Steam Pressure:
- 15 psi WSP
- Features:
- Smart Connect
- Max. Pressure:
- 200 psi CWP
- Connection Type:
- Press x Press
- Temp. Range:
- 0 Degrees to 250 Degrees F
- Ball Valve Basic Body Material:
- Bronze
- Ball Valve Product Group:
- Manual
- Item:
- Ball Valve
- Port:
- Full
- Stem Material:
- brass
- Handle Material:
- Zinc Plated Steel with Vinyl Grip
- Ball Material:
- Chrome Plated Brass
- Standards:
- 13D and 13R
- Handle Type:
- Lever
- Compliance:
- ABS
- Overall Length:
- 6.86 in
- Seal Material:
- EPDM
- Maximum Pressure - Operating:
- 200 psi
- Pipe Schedule Compatibility:
- Not Applicable
- Operating Temperature - Maximum:
- 250 Degrees F
- Connection Size - Side 2:
- 2 in
- Maximum Pressure - Combustible Gas:
- Not Rated
- Valve Body Style:
- Straight
- Vented Ball Valve:
- Non-Vented
- Connection Type - Side 2:
- Press
- Vacuum Service Rating:
- -29.2 in Hg
- ANSI Flange Class:
- Not Applicable
- Handle Height:
- 3.46 in
- Average Surface Roughness (Ra):
- Not Applicable
- Nominal Valve Size:
- 2 in
- Valve Ways:
- 2-Way
- 3-A Standard Compliance:
- Not Rated
- Handle Length:
- 6.22 in
- Connection Size - Side 1:
- 2 in
- Included Mounting:
- Not Applicable
- Color - Valve Handle:
- Red
- Operating Temperature - Minimum:
- 0 Degrees F
- Handle - Locking:
- Non-Locking
- Maximum Pressure - Steam:
- Not Rated
- For Media:
- Water
- Valve Construction:
- Three-Piece
- Connection Type - Side 1:
- Press
- Ball Port Style:
- Full Port
- Products By Industry:
- General Approach
- Package Quantity:
- 1
