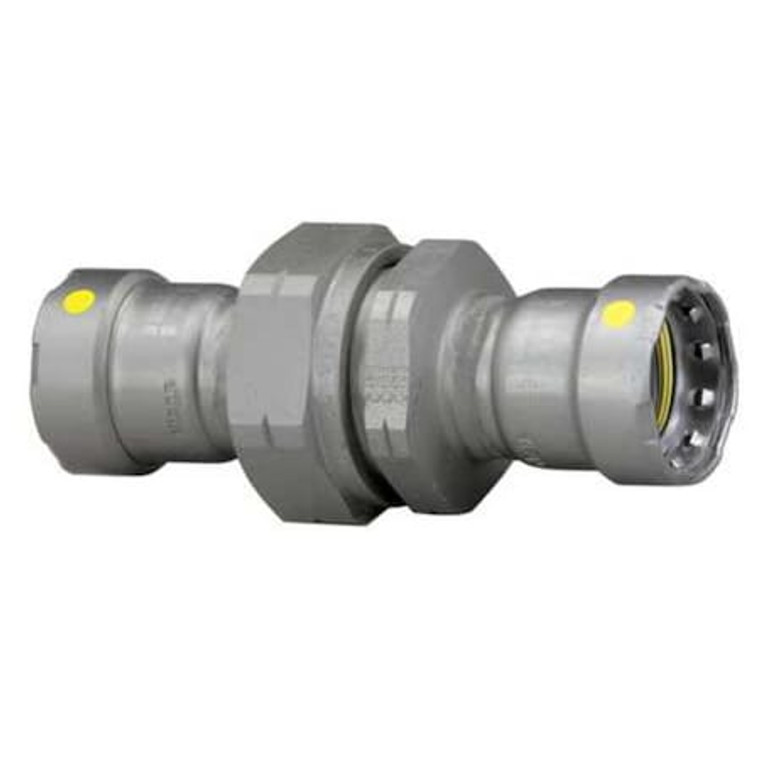

Viega MegaPressG union, 1-1/4" x 1-1/4" - 25716

Viega MegaPressG union, 1-1/4" x 1-1/4" - 25716

Viega
SKU:
25716
|
UPC:
691514257167
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Union, Application Air, Fuel, Natural Gas, Fitting Side A Connection Type Press-Fit, Fitting Side B Connection Type Press-Fit, Fitting Material Carbon Steel, Fitting Side A Pipe Size 1 1/4 in, Fitting Side B Pipe Size 1 1/4 in, O-Ring Material HNBR, Specific Fitting Shape Straight Union, Finish/Coating Zinc Nickel-Plated, Overall Length 6 1/2 in, Maximum Operating Pressure 125 psi, Maximum Operating Temperature 180 Degrees F
Additional Information
Country of Origin:
Germany
Item:
Union
Tube Fitting Material:
Carbon Steel
Specific Fitting Shape:
Straight Union
Fitting Connection Type:
Press x Press
Tube Size:
1-1/4 in
Pipe Size - Pipe Fitting:
1-1/4 in x 1-1/4 in
Specific Pipe Fitting Shape:
Union
Temp. Range:
-40 Degrees to 180 Degrees F
Pipe Size (Fittings):
1-1/4 x 1-1/4""
Pipe Fitting Connection Type:
Press x Press
Standards:
ABS Type Approval, ANSI LC4/CSA 6.32, CRN 0A14541.5 A/B, CSA ANSI LC4/CSA 6.32, CSA B149.1, IAPMO, IAPMO ANSI LC4/CSA 6.32, ICC, ICC-ES PMG-1036, IFGC, NFPA 54, NFPA 58
Basic Pipe Fitting Material:
Metal
Basic Pipe Fitting Shape:
Union
Compliance:
ABS
Max. Pressure:
125 psi
Fitting Side A Pipe Size:
1 1/4 in
Fitting Side B Pipe Size:
1 1/4 in
Minimum Operating Temperature:
40 Degrees F
Resistance Properties:
Chemical-Resistant, Heat-Resistant, Oil-Resistant
Application:
Air, Fuel, Natural Gas
Fitting Side A Connection Type:
Press-Fit
O-Ring Material:
HNBR
Finish/Coating:
Zinc Nickel-Plated
Maximum Operating Pressure:
125 psi
Fitting Side B Connection Type:
Press-Fit
Fitting Material:
Carbon Steel
Overall Length:
6 1/2 in
Maximum Operating Temperature:
180 Degrees F
Package Quantity:
1
