Viega MegaPress adapter, 1" x 1" - 90270
ViegaLog in for pricing
(No reviews yet)
Write a Review
Viega

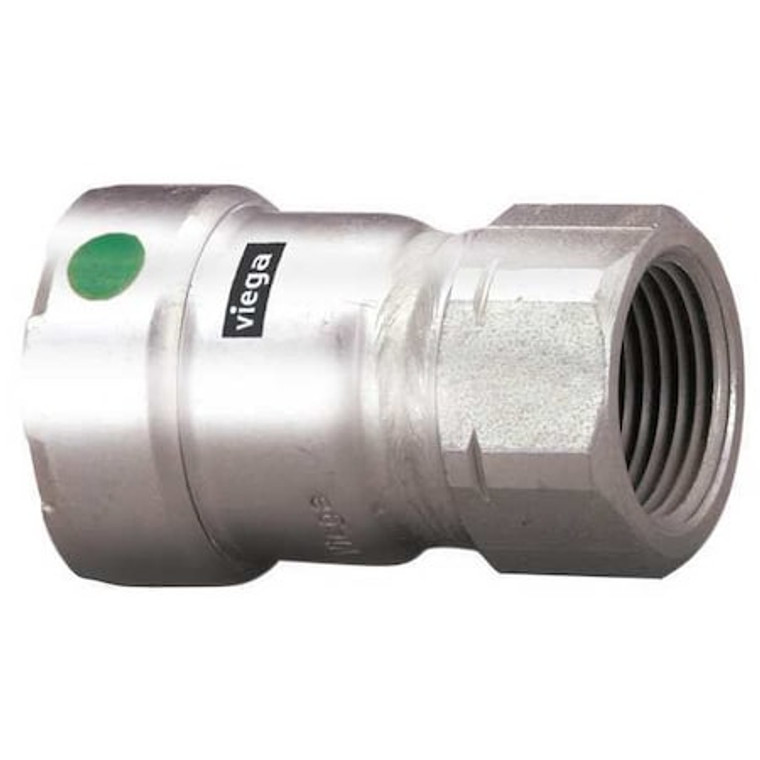

Viega MegaPress adapter, 1" x 1" - 90270
Adapter, Application Potable Water, Fitting Side A Connection Type Press-Fit, Fitting Side B Connection Type FNPT, Fitting Material Stainless Steel, Fitting Side A Pipe Size 1 in, Fitting Side B Pipe Size 1 in, Material Grade 316, O-Ring Material EPDM, Specific Fitting Shape Straight Adapter, Overall Length 2 3/4 in, Maximum Operating Pressure 200 psi, Maximum Operating Temperature 250 Degrees F
- Country of Origin:
- Germany
- Item:
- Adapter
- Tube Fitting Material:
- 316 Stainless Steel
- Specific Fitting Shape:
- Straight Adapter
- Fitting Connection Type:
- Press x Female Pipe Thread
- Tube Size:
- 1 in x 1 in
- Pipe Size - Pipe Fitting:
- 1 in x 1 in
- Standards:
- ASTM A312, ASTM A403, CRN 13492.5 A/B, IAPMO, IAPMO PS 117, ICC, ICC LC1002, NSF/ANSI 372, NSF/ANSI 61, TSSA/ASME B31.1, TSSA/ASME B31.3, TSSA/ASME B31.9
- Temp. Range:
- 0 Degrees to 250 Degrees F
- Compliance:
- CRN 13492.5 A/B, IAPMO PS117, ICC-LC1002, NSF 372, NSF/ANSI 61
- Max. Pressure:
- 200 psi
- Pipe Fitting Connection Type:
- Press x Female Pipe Thread
- Pipe Size (Fittings):
- 1 x 1""
- Specific Pipe Fitting Shape:
- Adapter
- Fitting Side A Connection Type:
- Press-Fit
- O-Ring Material:
- EPDM
- Application:
- Potable Water
- Fitting Side B Pipe Size:
- 1 in
- Maximum Operating Temperature:
- 250 Degrees F
- Fitting Material:
- Stainless Steel
- Maximum Operating Pressure:
- 200 psi
- Material Grade:
- 316
- Fitting Side A Pipe Size:
- 1 in
- Minimum Operating Temperature:
- 0 Degrees F
- Fitting Side B Connection Type:
- FNPT
- Overall Length:
- 2 3/4 in
- Package Quantity:
- 1
