Valve, Regulating, 0-12 GPM - 1MDA4
DaytonLog in for pricing
(No reviews yet)
Write a Review
Dayton

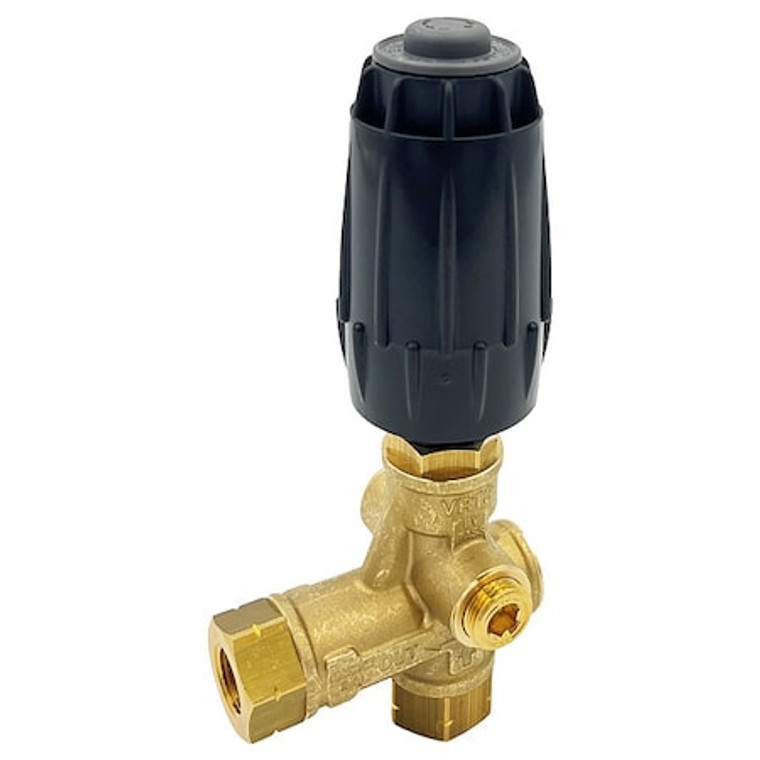

Valve, Regulating, 0-12 GPM - 1MDA4
Valve, Body Material Brass, Factory Set Pressure Not Applicable, Not Applicable BtuH, Overall Height 6 3/4 in, Overall Length 3 1/4 in, Test Lever Test Lever Not Included, Standards Not Applicable
- Country of Origin:
- Italy
- Item:
- Valve
- Inlet Port (In.):
- 3/8 F
- Type:
- Regulating
- Flow Range (GPM):
- 0 to 10.5
- Max. Pressure (PSI):
- 4,500 psi
- For Use With:
- Plunger Pumps
- Application:
- Water and Nonflammable Liquids
- Body Material:
- Brass
- Bypass Port (In.):
- (2) 3/8 F
- Max. Fluid Temp. (F):
- 190 Degrees F
- Height (In.):
- 6 3/4 in
- Outlet Port (In.):
- 3/8 F
- Wetted Materials:
- Brass, Buna-N, Stainless Steel, Steel
- Standards:
- Not Applicable
- Overall Height:
- 6 3/4 in
- Overall Length:
- 3 1/4 in
- Inlet Connection Type:
- BSPP
- For Media:
- Non-Flammable Liquids, Water
- Test Lever:
- Test Lever Not Included
- Operating Temperature - Maximum:
- 190 Degrees F
- Factory Set Pressure:
- Not Applicable
- Inlet Connection Size:
- 3/8 in
- Outlet Connection Gender:
- Female
- Operating Pressure - Maximum:
- 4,500 psi
- Inlet Connection Gender:
- Female
- Operating Pressure - Minimum:
- 1,000 psi
- Outlet Connection Size:
- 3/8 in
- Operating Temperature - Minimum:
- 41 Degrees F
- Outlet Connection Type:
- BSPP
- BtuH:
- Not Applicable
- Package Quantity:
- 1
