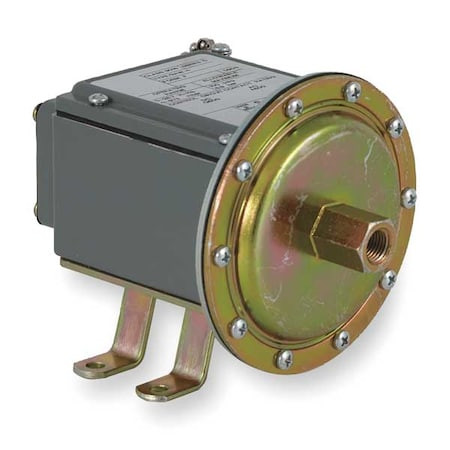

Vacuum Switch, 0.8 to 9"Hg, Stndrd/Reverse - 9016GAW1F

Vacuum Switch, 0.8 to 9"Hg, Stndrd/Reverse - 9016GAW1F

Telemecanique Sensors
SKU:
9016GAW1F
|
UPC:
785901053781
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Vacuum Switch, Range 0 to 28.7 in Hg, Contact Form 1NO/1NC, Port Type 1-Port 1/4-18 in FNPT, NEMA Rating 13, 4, 4X, Action Standard, Differential 0.8 to 9 in Hg, 9016G Series, Ambient Temp. Range -10 Degrees to 185 Degrees F, Media Temp. Range -14 Degrees to 250 Degrees F, Features (2) Thresholds, Adjustable Scale, Electromechanical
Additional Information
Country of Origin:
Mexico
Item:
Vacuum Switch
Contact Form:
1NO/1NC
Series:
9016G
NEMA Rating:
13, 4, 4X
Action:
Standard
Media Temp. Range:
-14 Degrees to 250 Degrees F
Features:
(2) Thresholds, Adjustable Scale, Electromechanical
Range:
0 to 28.7 in Hg
Ambient Temp. Range:
-10 Degrees to 185 Degrees F
Differential:
0.8 to 9 in Hg
Port Type:
1-Port 1/4-18 in FNPT
Electrical Connection:
screw-clamp terminals AWG 22...AWG 12
Standards:
UL 508
Pressure - Maximum:
100 psi
Overall Depth:
4.9 in
Overall Height:
6.45 in
Differential Pressure - Maximum:
3.63 psi
Media Temperature - Minimum:
-40 Degrees F
Differential Pressure - Minimum:
0.64 psi
Manufacturer Warranty Length:
18 mo
Operating Temperature - Minimum:
10 Degrees F
Pressure Connection Type:
1/4-18 FNPT"
NEMA Enclosure Rating:
13, 4, 4X
Number of Pressure Connection Ports:
1
Operating Temperature - Maximum:
185 Degrees F
Overall Width:
4.56 in
Media Temperature - Maximum:
250 Degrees F
Depth:
4.9 in
Line Rated Current:
3 A 240 V AC A600 NEMA rating designation || 6 A 120 V AC A600 NEMA rating designation || 0.27 A 250 V DC R300 NEMA rating designation || 0.22 A 125 V DC R300 NEMA rating designation
Repeat Accuracy:
0.004
Ambient Air Temperature For Operation:
10-185°F
Mechanical Durability:
5000000 cycles
Ambient Air Temperature For Storage:
10-185°F
Short-Circuit Protection:
10 A cartridge overload and short-circuit protection gL
Device Short Name:
9016G
Device Application:
sensitive control application
Product Certifications:
CSA file LR25490 || UL listed file E12158 CCN NKPZ and CCN NTHT
Cable Entry:
0.5 inch NPT conduit entrance
Approx Adjustable Differential At Mid Range:
1.3-7.4 inHg
Shock Resistance:
50 gn IEC 58-2-27
Operating Position:
any position
Vibration Resistance:
2 gn 40-150 Hz)IEC 68-2-6
Nema Degree Of Protection:
NEMA 4/4X/13 UL 698
Materials In Contact With Fluid:
3M Scotch-Grip 847 rubber and gasket adhesive || nitrile (Buna-N) || zinc plated steel
Electrical Circuit Type:
control circuit
Local Signalling:
without
Fluid Connection Type:
0.25 inch 18 NPTF UL 508
Width:
4.56 in
Range On Decreasing Vacuum:
0-28.7 inHg
Factory Modification:
with mounting bracket
Height:
6.45 in
Enclosure Material:
die cast aluminium alloy 380
Maximum Pressure:
100 psi
Controlled Fluid:
air -40-250°F) || water -40-250°F) || hydraulic oil -40-250°F) || gas -40-250°F)
Contacts Type And Composition:
NC-NO, SPDT, Form Z, snap action, silver nickel contacts
Maximum Operating Rate:
120 cyc/mn
Vacuum Sensor Size:
28.7 inHg
Setting:
internal
Local Display:
without
Product Or Component Type:
electromechanical vacuum switch
Scale Type:
adjustable differential
Vacuum Switch Type Of Operation:
regulation between two thresholds
Terminal Block Type:
4 screw terminals
Pressure Actuator:
diaphragm nitrile (Buna-N)
Package Quantity:
1
