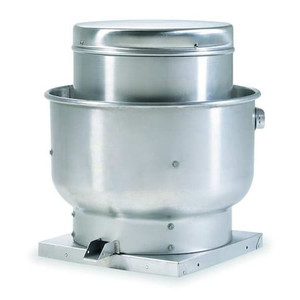

Upblast Ventilator, Wheel 11 In, 115V - 48C179

Upblast Ventilator, Wheel 11 In, 115V - 48C179

Dayton
SKU:
48C179
|
UPC:
190735320228
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Centrifugal Upblast Roof Exhaust Fan, Application Industrial and Commercial Buildings, Schools, Drive Type Direct Drive, For Air Type Clean Air, Base Diameter Not Applicable, Base Width 19 in, Base Length 19 in, Base Shape Square, Maximum Static Pressure 3/4 in wc, Exhaust Airflow @ 0.000 in SP 903 cfm, Nameplate Voltage 115V AC, Phase 1, Motor Horsepower 1/6 hp, Assembly Assembled, Number of Speeds Variable, Housing Material Aluminum, Wheel Material Aluminum, High-Efficiency Motor Yes
Additional Information
Country of Origin:
United States
Item - Roof Ventilators:
Upblast Ventilator
Drive Package With Motor Included:
Yes
Duty Rating - Roof Ventilators:
Standard
Drive Type - Roof Ventilators:
Direct Drive
Mounting Location - Roof Ventilators:
Roof
Number of Speeds:
Variable
Voltage - Roof Ventilators:
115V AC
Motor HP - Roof Ventilators:
1/6 hp
Base Size - Roof Ventilators:
19 in x 19 in
CFM @ 0.000-In. SP:
450/596/903
Shaft Dia. Wheel End:
1/2 in
Wheel Dia.:
11 in
Assembled/Unassembled:
Assembled
CFM @ 0.250-In. SP:
-/395/782
Adj. 12 3/8H Roof Curb Stock No.:
2ZV82"
Drive Type:
Direct Drive
Base Width:
19 in
Adj. 6 3/8H Roof Curb Stock No.:
4c453"
CFM @ 0.500-In. SP:
-/-/652
Wheel Material:
Aluminum
Overall Dia.:
21 in
Recommended 12 In. Fixed Curb Item No.:
2RB75
Standards:
AMCA Sound and Air, UL/cUL 705
CFM @ 0.375-In. SP:
-/-/722
CFM @ 0.875-In. SP:
-/-/-
CFM @ 0.125-In. SP:
324/505/842
Hz:
60
Sones @ 0.125-In. SP @ 5 Ft.:
2.1/4.4/9.5
Phase:
1
Mounting Location:
Roof
Max. BHP:
0.02/0.04/0.12
Motor Type:
Electronically Commutated
Base Height:
1.8 in
Overall Height:
15 1/8 in
Dimension C:
13 3/8 in
CFM @ 0.750-In. SP:
-/-/420
CFM @ 1.500-In. SP:
-/-/-
Dimension D:
11 1/2 in
Includes:
Mounting Plate, NEMA 1 Junction Box, Speed Control
Max. Inlet Temp.:
130 Degrees F
Dimension B:
21 in
Sones @ 0.250-In. SP @ 5 Ft.:
-/4.6/9.4
Speed Control:
43Y140, Included On Motor
RPM:
860/1140/1725
Base Square Size - Roof Ventilators:
19 x 19""
Drive Package Included:
Yes
Recommended Damper Size (In.):
12 x 12
Housing Material:
Aluminum
Base Length:
19 in
Motor Voltage:
115
Motor HP:
1/6
Max. Operating Amps:
3.1
Dimension A:
19 in
Recommended Damper Stock No.:
4HX64
Recommended 8 In. Fixed Curb Item No.:
4HX38
Item:
Centrifugal Upblast Roof Exhaust Fan
Sones @ 0.500-In. SP @ 5 Ft.:
-/-/9.1
CFM @ 1.250-In. SP:
-/-/-
CFM @ 0.625-In. SP:
-/-/553
Requires:
Roof Curb for New Installation
Speed Controllable:
Yes
CFM @ 1.000-In. SP:
-/-/-
Wheel Type:
Backward Inclined
Overall Width:
21 in
Application:
Industrial and Commercial Buildings, Schools
Features:
EC Motors Allow Up to 80% Usable Turndown, Nonoverloading Centrifugal Wheel Design
Exhaust Airflow @ 0.250 in SP:
782 cfm
Maximum Ambient Temperature:
130 Degrees F
Sound Level:
Fan RPM 1140
Exhaust Airflow @ 0.375 in SP:
722 cfm
Nameplate Voltage:
115V AC
Frequency:
60 Hz
Includes Drive Package:
Yes
Base Diameter:
Not Applicable
Maximum Fan Speed:
1,725 RPM
High-Efficiency Motor:
Yes
Current:
3.1 A
Base Shape:
Square
Maximum Static Pressure:
3/4 in wc
Exhaust Airflow @ 0.500 in SP:
652 cfm
Cutout Size:
14.5 in L x 14.5 in W
Housing Length:
21 in
Includes Motor:
Yes
For High-Static Pressure Applications:
No
Motor Horsepower:
1/6 hp
Mount Type:
Roof Curb
Mounting Orientation:
Vertical
Exhaust Airflow @ 0.000 in SP:
903 cfm
Airflow @ 0.000 in SP:
903 cfm
Compatible Curb Manufacturer Part Number:
3AZK1 to 3AZK9, 3AZL1 to 3AZL3
Housing Material Fabrication:
Spun
Assembly:
Assembled
Propeller Shaft Diameter:
1/2 in
Overall Diameter:
21 in
Safety Features:
Fully Rolled Windband
Overall Depth:
15 1/8 in
Wheel Diameter:
11 in
Brake Horsepower:
1/50 hp, 1/25 hp, 3/25 hp
Hazardous Location Specification:
Class I Group C, Class I Group D, Class II Group F, Class II Group G
Exhaust Airflow @ 0.125 in SP:
842 cfm
Compatible Speed Control:
43Y140
Cutout Length:
14.5 in
Motor Enclosure:
Totally Enclosed Fan Cooled
Damper Size:
10 x 10 in
Motor Location:
Out of Airstream
Maximum Inlet Air Temperature:
130 Degrees F
For Air Type:
Clean Air
Housing Width:
21 in
Package Quantity:
1
