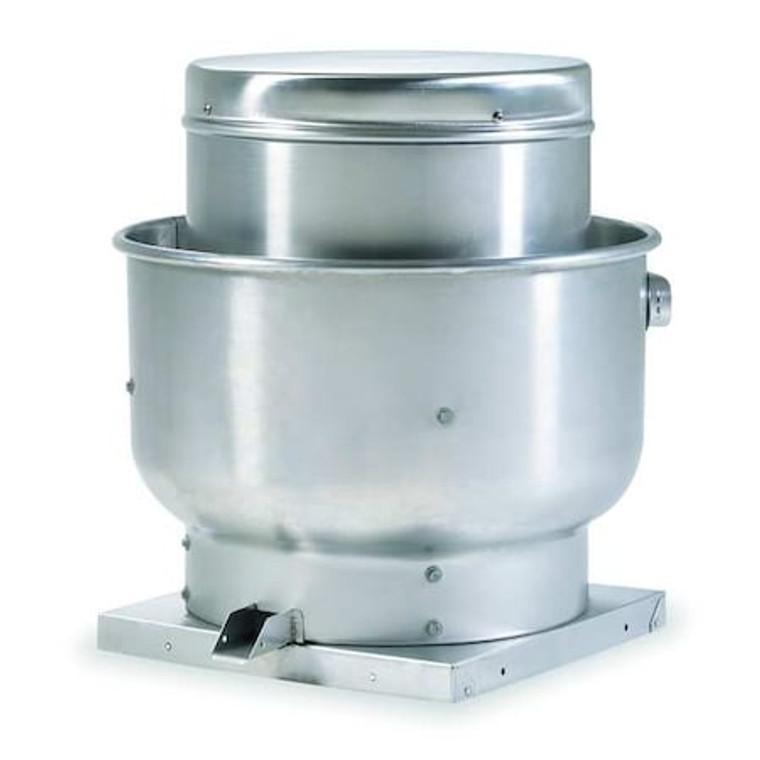

Upblast Ventilator, 12-1/2 In, 115/230V - 5DVP8

Upblast Ventilator, 12-1/2 In, 115/230V - 5DVP8

Dayton
SKU:
5DVP8
|
UPC:
190735343012
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Centrifugal Upblast Roof Exhaust Fan, Application Industrial and Commercial Buildings, Restaurants, Schools, Drive Type Direct Drive, For Air Type Kitchen Air, Base Diameter Not Applicable, Base Width 22 in, Base Length 22 in, Base Shape Square, Maximum Static Pressure 1 1/2 in wc, Exhaust Airflow @ 0.000 in SP 2,037 cfm, Nameplate Voltage 115/230V AC, Phase 1, Motor Horsepower 1/2 hp, Assembly Assembled, Number of Speeds 1, Housing Material Aluminum, Wheel Material Aluminum
Additional Information
Country of Origin:
United States
Promotion Restriction:
Not eligible for promotion
Item - Roof Ventilators:
Upblast Ventilator
Drive Package With Motor Included:
Yes
Duty Rating - Roof Ventilators:
Standard
Drive Type - Roof Ventilators:
Direct Drive
Mounting Location - Roof Ventilators:
Roof
Number of Speeds:
1
Voltage - Roof Ventilators:
115V AC/230V AC
Motor HP - Roof Ventilators:
1/2 hp
Base Size - Roof Ventilators:
22 in x 22 in
CFM @ 0.000-In. SP:
2037
Recommended Damper Stock No.:
4HX65
Assembled/Unassembled:
Assembled
Hz:
60
Standards:
AMCA Sound and Air, UL/cUL 762
Shaft Dia. Wheel End:
1/2 in
Overall Dia.:
24 7/8 in
CFM @ 0.375-In. SP:
1869
Recommended 12 In. Fixed Curb Item No.:
2RB76
Includes:
NEMA 1 Junction Box
Sones @ 0.500-In. SP @ 5 Ft.:
17.9
CFM @ 1.500-In. SP:
1176
Base Square Size - Roof Ventilators:
22 x 22""
Base Width:
22 in
Base Length:
22 in
Adj. 6 3/8H Roof Curb Stock No.:
4c453"
Speed Controllable:
Yes
CFM @ 0.750-In. SP:
1710
Dimension D:
17 3/8 in
CFM @ 0.125-In. SP:
1979
Drive Type:
Direct Drive
Adj. UL 762 Kitchen Roof Curb Stock No.:
4HX61
Mounting Location:
Roof
Motor HP:
1/2
Dimension C:
23 3/4 in
CFM @ 0.500-In. SP:
1816
CFM @ 0.625-In. SP:
1763
Recommended 8 In. Fixed Curb Item No.:
4HX38
Base Height:
1.8 in
Sones @ 0.125-In. SP @ 5 Ft.:
16.1
Drive Package Included:
Yes
Motor Voltage:
115/230
Dimension B:
24 7/8 in
Phase:
1
Adj. 12 3/8H Roof Curb Stock No.:
2ZV82"
Housing Material:
Aluminum
Item:
Centrifugal Upblast Roof Exhaust Fan
Dimension A:
22 in
CFM @ 0.875-In. SP:
1642
Sones @ 0.250-In. SP @ 5 Ft.:
16.7
Max. BHP:
0.48
CFM @ 1.000-In. SP:
1571
CFM @ 1.250-In. SP:
1406
Recommended Damper Size (In.):
15 x 15
CFM @ 0.250-In. SP:
1923
Max. Operating Amps:
7.5
Speed Control:
48C173
Max. Inlet Temp.:
300 Degrees F
RPM:
1725
Requires:
Roof Curb for New Installation
Wheel Material:
Aluminum
Overall Height:
30 in
Fixed UL 762 Kitchen Roof Curb Stock No.:
4HX55
Wheel Dia.:
12 1/2 in
Overall Width:
24 7/8 in
Features:
Nonoverloading Centrifugal Wheel Design
Application:
Industrial and Commercial Buildings, Restaurants, Schools
Exhaust Airflow @ 0.125 in SP:
1,979 cfm
Maximum Static Pressure:
1 1/2 in wc
Includes Motor:
Yes
Safety Features:
Fully Rolled Windband
Cutout Length:
17.5 in
Exhaust Airflow @ 0.500 in SP:
1,816 cfm
Airflow @ 0.000 in SP:
2,037 cfm
Sound Level:
15.6 sones @ 0.000 in SP and 5 ft, 16.1 sones @ 0.125 in SP and 5 ft, 16.7 sones @ 0.250 in SP and 5 ft, 17.3 sones @ 0.375 in SP and 5 ft, 17.9 sones @ 0.500 in SP and 5 ft, 18.2 sones @ 0.625 in SP and 5 ft, 18.4 sones @ 0.750 in SP and 5 ft, 18.4
Maximum Ambient Temperature:
300 Degrees F
Base Diameter:
Not Applicable
Wheel Type:
Backward Inclined
Overall Diameter:
24 7/8 in
Electrical Connection:
Power Cord
High-Efficiency Motor:
No
Nameplate Voltage:
115/230V AC
Housing Width:
24.9 in
Current:
7.5 A
Base Shape:
Square
Mount Type:
Roof Curb
For High-Static Pressure Applications:
No
Housing Material Fabrication:
Spun
Motor Horsepower:
1/2 hp
Brake Horsepower:
12/25 hp
Overall Depth:
25 1/2 in
Exhaust Airflow @ 0.250 in SP:
1,923 cfm
Exhaust Airflow @ 0.375 in SP:
1,869 cfm
Compatible Curb Manufacturer Part Number:
3AZK1 to 3AZK9, 3AZL1 to 3AZL3
Damper Size:
15 x 15 in
Motor Enclosure:
Open Dripproof
Maximum Fan Speed:
1,725 RPM
Maximum Inlet Air Temperature:
300 Degrees F
Frequency:
60 Hz
Cutout Size:
17.5 in L x 17.5 in W
Motor Speed:
1,725 RPM
Assembly:
Assembled
Housing Length:
24.9 in
For Air Type:
Kitchen Air
Propeller Shaft Diameter:
1/2 in
Mounting Orientation:
Vertical
Wheel Diameter:
12 1/2 in
Motor Location:
Out of Airstream
Exhaust Airflow @ 0.000 in SP:
2,037 cfm
Compatible Speed Control:
48C173
Includes Drive Package:
Yes
Package Quantity:
1
