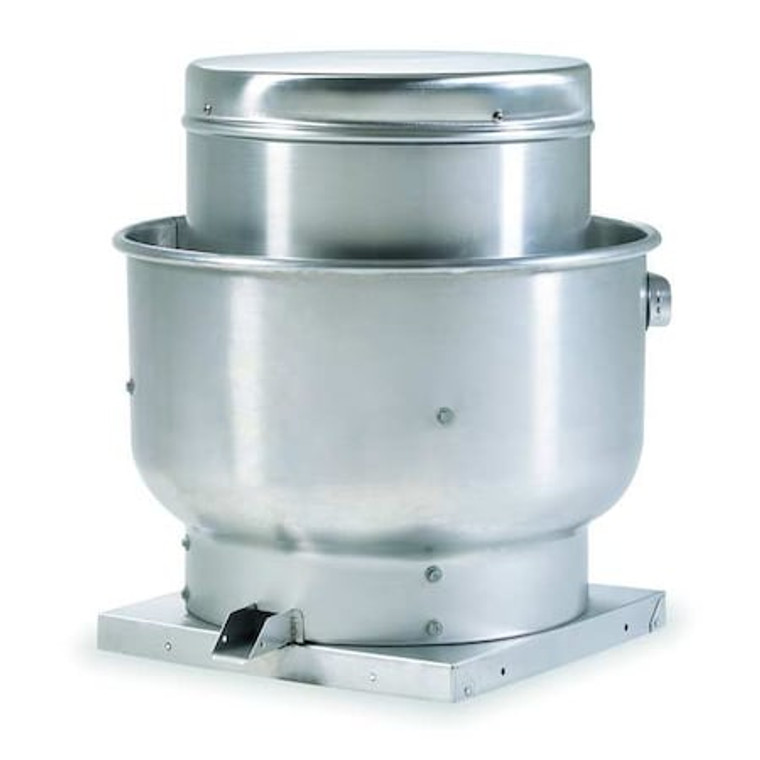

Upblast Vent, 14-3/4 In, 115/208-230V - 7AX11

Upblast Vent, 14-3/4 In, 115/208-230V - 7AX11

Dayton
SKU:
7AX11
|
UPC:
194484311735
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Centrifugal Upblast Roof Exhaust Fan, Application Industrial and Commercial Buildings, Restaurants, Schools, Drive Type Belt Drive, For Air Type Kitchen Air, Base Diameter Not Applicable, Base Width 22 in, Base Length 22 in, Base Shape Square, Maximum Static Pressure 1 1/2 in wc, Exhaust Airflow @ 0.000 in SP 2,889 cfm, Nameplate Voltage 115/208-230V AC, Phase 1, Motor Horsepower 3/4 hp, Assembly Unassembled, Number of Speeds 1, Housing Material Aluminum, Wheel Material Aluminum
Additional Information
Country of Origin:
Multiple
Item - Roof Ventilators:
Upblast Ventilator
Drive Package With Motor Included:
Yes
Duty Rating - Roof Ventilators:
Standard
Drive Type - Roof Ventilators:
Belt Drive
Mounting Location - Roof Ventilators:
Roof
Number of Speeds:
1
Voltage - Roof Ventilators:
115V AC/208V AC/230V AC
Motor HP - Roof Ventilators:
3/4 hp
Base Size - Roof Ventilators:
22 in x 22 in
CFM @ 0.000-In. SP:
2889
Max. Inlet Temp.:
300 Degrees F
Dimension A:
22 in
CFM @ 0.875-In. SP:
2332
CFM @ 0.250-In. SP:
2757
CFM @ 0.500-In. SP:
2602
Motor Voltage:
115/208/230
Sones @ 0.125-In. SP @ 5 Ft.:
19.0
RPM:
1595
Dimension D:
19 3/8 in
Housing Material:
Aluminum
Item:
Centrifugal Upblast Roof Exhaust Fan
Includes:
NEMA 1 Junction Box
Mounting Location:
Roof
Overall Dia.:
28 7/8 in
Wheel Dia.:
14 3/4 in
Drive Package Included:
Yes
CFM @ 1.000-In. SP:
2225
CFM @ 0.375-In. SP:
2683
Motor HP:
3/4
Recommended Damper Stock No.:
4HX65
Recommended Damper Size (In.):
15 x 15
Wheel Material:
Aluminum
Shaft Dia. Wheel End:
3/4 in
Standards:
AMCA Sound and Air, UL/cUL 762
CFM @ 0.625-In. SP:
2518
Base Length:
22 in
Sones @ 0.250-In. SP @ 5 Ft.:
18.5
Adj. UL 762 Kitchen Roof Curb Stock No.:
4HX61
Base Height:
1.8 in
Max. BHP:
0.79
Base Square Size - Roof Ventilators:
22 x 22""
Phase:
1
CFM @ 0.125-In. SP:
2826
Requires:
Roof Curb for New Installation
Bearing Type:
Sealed Pillow Block
CFM @ 1.250-In. SP:
1968
Drive Type:
Belt Drive
CFM @ 0.750-In. SP:
2430
Assembled/Unassembled:
Unassembled
CFM @ 1.500-In. SP:
1568
Sones @ 0.500-In. SP @ 5 Ft.:
16.1
Speed Controllable:
No
Overall Height:
28 1/8 in
Dimension B:
28 7/8 in
Adj. 12 3/8H Roof Curb Stock No.:
2ZV82"
Recommended 12 In. Fixed Curb Item No.:
2RB76
Fixed UL 762 Kitchen Roof Curb Stock No.:
4HX55
Dimension C:
26 3/8 in
Hz:
60
Base Width:
22 in
Base Diameter:
Not Applicable
Exhaust Airflow @ 0.125 in SP:
2,826 cfm
Motor Enclosure:
Open Dripproof
Safety Features:
Fully Rolled Windband
For Air Type:
Kitchen Air
Includes Drive Package:
Yes
Includes Motor:
Yes
Damper Size:
15 x 15 in
Maximum Fan Speed:
1,595 RPM
Motor Location:
Out of Airstream
High-Efficiency Motor:
No
Exhaust Airflow @ 0.000 in SP:
2,889 cfm
Maximum Static Pressure:
1 1/2 in wc
Base Shape:
Square
Nameplate Voltage:
115/208-230V AC
Exhaust Airflow @ 0.250 in SP:
2,757 cfm
Airflow @ 0.000 in SP:
2,889 cfm
Current:
11.6/5.9 to 5.8 A
Motor Speed:
1,595 RPM
Maximum Inlet Air Temperature:
300 Degrees F
Housing Width:
28.9 in
Housing Length:
28.9 in
For High-Static Pressure Applications:
No
Wheel Diameter:
14 3/4 in
Application:
Industrial and Commercial Buildings, Restaurants, Schools
Housing Material Fabrication:
Spun
Assembly:
Unassembled
Wheel Type:
Backward Inclined
Brake Horsepower:
79/100 hp
Features:
Air Handling Quality Bearings Meet Minimum of L10-100,000 Hours, Nonoverloading Centrifugal Wheel Design
Exhaust Airflow @ 0.375 in SP:
2,683 cfm
Motor Horsepower:
3/4 hp
Exhaust Airflow @ 0.500 in SP:
2,602 cfm
Mount Type:
Roof Curb
Propeller Shaft Diameter:
3/4 in
Frequency:
60 Hz
Overall Diameter:
28 7/8 in
Sound Level:
11.6 sones @ 1.500 in SP, 12.3 sones @ 1.000 in SP, 12.6 sones @ 0.875 in SP, 12.6 sones @ 1.250 in SP, 13.3 sones @ 0.750 in SP, 14.2 sones @ 0.625 in SP, 16.1 sones @ 0.500 in SP, 18.5 sones @ 0.250 in SP, 19.0 sones @ 0.125 in SP, 19.5 sones @ 0.3
Package Quantity:
1
