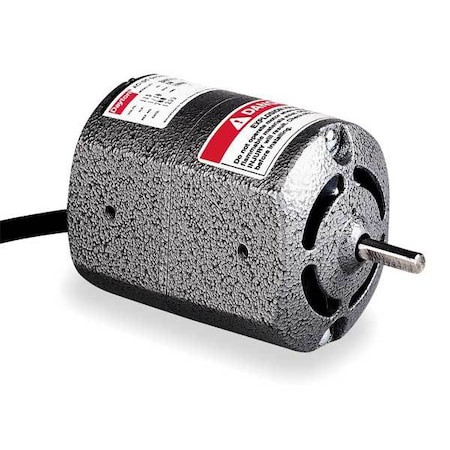

Universal AC/DC Mtr, 1/15hp, 5000 RPM, 115V - 2M033

Universal AC/DC Mtr, 1/15hp, 5000 RPM, 115V - 2M033

Dayton
SKU:
2M033
|
UPC:
190735222942
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Universal AC/DC Motor, Single Phase, Motor Design Universal AC/DC, 1/15 HP, Nameplate RPM 5,000, No. of Speeds 1, 115V AC Voltage, Full Load Amps 1.2, Non-Standard Frame, Usable @ 208V No, Usable @ 200V No, 60 Hz, Motor Service Factor 1, Motor Thermal Protection None, Ins. Class A, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CCWSE, Motor Enclosure Design Open, Motor Mounting Type Hole, Motor Mounting Position All Angle, Finish Unfinished, Number of Shafts 1, Shaft Dia. 1/4 in
Additional Information
Country of Origin:
United States
HP:
1/15
Nameplate RPM:
5,000
Shaft Dia.:
1/4 in
O.C. Mounting:
2 3/16 in
Mounting Holes:
(2) #10-32
Item:
Universal AC/DC Motor
Voltage:
115V AC
Frame:
Non-Standard
Motor Design:
Universal AC/DC
Motor Enclosure Design:
Open
Full Load Amps:
1.2
Motor Thermal Protection:
None
Overall Length:
5 3/16 in
Motor Shaft Rotation:
CCWSE
Motor Service Factor:
1
Motor Application:
Universal AC/DC Motor
Length Less Shaft:
4 7/16 in
Footnotes:
32
Hz:
60
Max. Ambient Temp.:
40 Degrees C
Phase:
Single
Shaft Length:
3/4 in
Application:
Used in Appliances, Power Tools, Outdoor Equipment, Food Processing Equipment, Gearmotors, Blowers, Pumps and Other Applications Where High Horsepower Output and Small Size are Required
Voltage Compatibility:
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Motor Mounting Position:
All Angle
Body Dia.:
2 3/4 in
Motor Bearings:
Sleeve
Ins. Class:
A
Motor Mounting Type:
Hole
Standards:
UL Recognized
Average Brush Life:
300 hr
RPM Range:
Over 3,600
Usable @ 208V:
No
Weight:
2.15 lb
Usable @ 200V:
No
No. of Speeds:
1
Replacement Brushes:
1R389
Number of Shafts:
1
Finish:
Unfinished
Motor Sub Application:
Belt Drive Fan/Blower
Motor Shaft Design:
Flat
Package Quantity:
1
