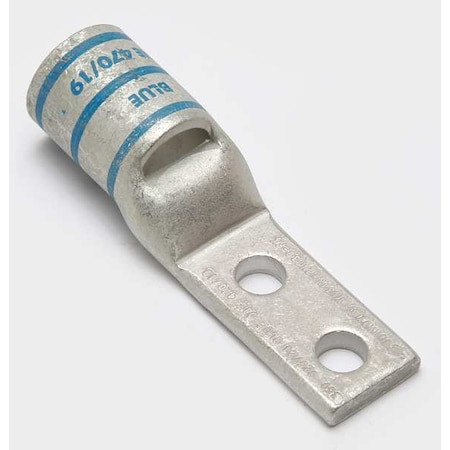

Two Hole Lug Compress Conct, 374 kcmil - YA34L2NT38FX

Two Hole Lug Compress Conct, 374 kcmil - YA34L2NT38FX

Burndy
SKU:
YA34L2NT38FX
|
UPC:
781810556559
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Two-Hole Lug Compression Connector, Barrel Size Standard, Color Code Blue, Die Code 19, Tongue Angle Straight, Tongue Width 0.96 in, For Conductor Material Copper, For Stud Size 3/8 in, For Stranded Copper Wire Size - Minimum 350 kcmil, For Stranded Copper Wire Size - Maximum 500 kcmil, Inspection Hole Yes, Hole Center to Center 1 in, Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 35 kV AC, Termination Style Crimp, Standards CSA Certified, UL 486A-486B, UL Listed
Additional Information
Country of Origin:
United States
Cable Size:
350 kcmil
Connector Type:
Standard Barrel
Width:
0.96";Material=Copper"
Length:
3.88";Color Code=Blue"
Lug Compression Connector Type:
Two-Hole Lug Compression Connector
Item:
Two-Hole Lug Compression Connector
Hole Center to End:
0.41 in
Tongue Style:
Standard
Standards:
CSA Certified, UL 486A-486B, UL Listed
Barrel Length:
Short
Hole Center to Center:
1 in
Stud Size:
3/8 in
Die Code:
19
Peep Hole:
Yes
Plate Material:
Electro Tin
Overall Length:
3.88 in
Overall Width:
0.96 in
Application:
For Flex Conductor
Length (Straight Wireway):
3.88 in
For Conductor Material:
Copper
For Wire Size:
350 kcmil, 450 kcmil, 500 kcmil
Tongue Angle:
Straight
For Stud Size:
3/8 in
For Stranded Copper Wire Size - Minimum:
350 kcmil
Tongue Width:
0.96 in
For Stranded Copper Wire Size - Maximum:
500 kcmil
Barrel Style:
Chamfered
Maximum Operating Temperature:
194 Degrees F
Contact Finish:
Tin
Inspection Hole:
Yes
Tongue Length:
0.83 in
RoHS Compliant:
Yes
Special Features:
Terminal
Barrel Size:
Standard
Termination Style:
Crimp
Barrel Outside Diameter:
1.06 in
Hole Size:
0.39 in
For Wire Type:
Stranded
Maximum Voltage:
35 kV AC
Strip Length:
1 5/16 in
Conductor - Material:
COPPER
Conductor - Copper Flex H Size:
350 kcmil
Certification - CSA Approved:
Yes
Conductor - Copper Flex G Size Range:
350 kcmil
Type:
YA-L-2TC-FX, Standard Barrel
Plating Type:
Tin - Electro Plated
Rating - Minimum Voltage:
600
UL Listed:
Yes
Wire Size:
350 KCMIL
Dimension - Bolt Hole Size inch:
0.39 in
Industry Standard(s):
UL 486A-486B
Dimension - N inch:
0.41 in
Dimension - Pad Width inch:
0.96 in
Conductor - Copper Flex K Size:
350 kcmil
Trade Name:
HYLUGâ„¢
Dimension - Hole Size fraction:
2023-03-08
Dimension - D inch:
1.83 in
Conductor - Copper Str Size Range:
350 kcmil
Dimension - Stud Size inch:
44993
Dimension - Length Overall inch:
3.88 in
Physical Attribute - Tongue Angle:
Straight
Dimension - Bolt Size inch:
0.38
Conductor - Copper Flex K Size Range:
350 kcmil
Dimension - B Length fraction:
1-1/4 in
Voltage - Maximum:
35000
Dimension - L Length Overall mm:
99 mm
Dimension - Hole Size inch:
0.41
Conductor - Copper Flex M Size Range:
350 kcmil
Conductor Size:
350 KCMIL
Plated:
Y
Dimension - Z inch:
0.42 in
Finish Type:
Tin-Plated
Dimension - Strip Length inch:
42374
Conductor - Copper DLO Size:
373.7 (925/#24) DLO
Dimension - B Length inch:
1.27 in
Dimension - Bolt Size fraction:
44993
Physical Attribute - Tongue Type:
Standard
Dimension - Outside Diameter inch:
1.06 in
Conductor - Copper Flex I Size:
350 kcmil
Rating - KVA:
35 kV
Conductor - Copper Str Size:
350 KCMIL
Feature - Barrel Style:
Chamfered
Conductor - Copper DLO Size Range:
373.7 (925/#24) DLO
Dimension - Stud Size fraction:
2023-03-08
Voltage Rating:
35 kV
Conductor - Copper Flex G Size:
350 kcmil
Die Index:
19;470
Conductor - Copper Flex H Size Range:
350 kcmil
Dimension - Hole Size mm:
10.4 mm
Conductor - Copper Flex I Size Range:
350 kcmil
Conductor Type:
FLEX
Feature - Barrel Type:
Standard
Conductor - Copper Flex M Size:
350 kcmil
Physical Attribute - Number of Holes:
2
Package Quantity:
1
