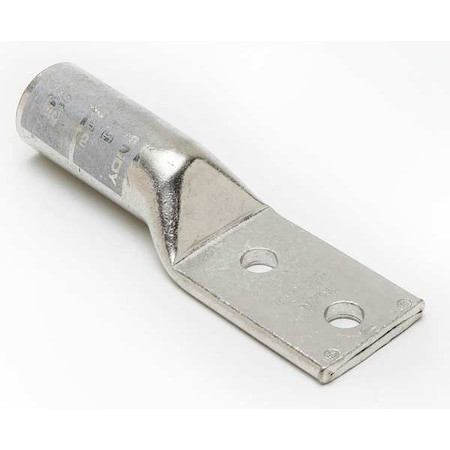

Two Hole Lug Compress Conct, 1000 kcmil - YA442N

Two Hole Lug Compress Conct, 1000 kcmil - YA442N

Burndy
SKU:
YA442N
|
UPC:
781810555644
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Two-Hole Lug Compression Connector, Barrel Size Long, Color Code White, Die Code 27, Tongue Angle Straight, Tongue Width 2.19 in, For Conductor Material Copper, For Stud Size 1/2 in, For Stranded Copper Wire Size - Minimum 1000 kcmil, For Stranded Copper Wire Size - Maximum 1000 kcmil, Inspection Hole No, Hole Center to Center 1.75 in, Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 35 kV AC, Termination Style Crimp, Standards CSA Certified, UL 486A-486B, UL Listed
Additional Information
Country of Origin:
United States
Cable Size:
1000 kcmil
Connector Type:
Long Barrel
Width:
2.19";Material=Copper"
Length:
7.14";Color Code=White"
Tongue Style:
Standard
Stud Size:
1/2 in
Barrel Length:
Long
Plate Material:
Electro Tin
Hole Center to End:
0.63 in
Hole Center to Center:
1.75 in
Standards:
CSA Certified, UL 486A-486B, UL Listed
Lug Compression Connector Type:
Two-Hole Lug Compression Connector
Item:
One-Hole Lug Compression Connector
Peep Hole:
No
Die Code:
27
Application:
For Code Conductor
Overall Width:
2.19 in
Overall Length:
7.14 in
Length (Straight Wireway):
7.14 in
Barrel Style:
Chamfered
For Wire Type:
Stranded
Tongue Thickness:
0.32 in
Hole Size:
0.56 in
For Stud Size:
1/2 in
Maximum Operating Temperature:
194 Degrees F
Barrel Outside Diameter:
1.5 in
Tongue Width:
2.19 in
Barrel Size:
Long
Tongue Angle:
Straight
Special Features:
Terminal
For Stranded Copper Wire Size - Maximum:
1000 kcmil
Contact Finish:
Tin
Maximum Voltage:
35 kV AC
For Wire Size:
1000 kcmil
RoHS Compliant:
Yes
Tongue Length:
1.27 in
Strip Length:
3 1/16 in
For Conductor Material:
Copper
For Stranded Copper Wire Size - Minimum:
1000 kcmil
Termination Style:
Crimp
Inspection Hole:
No
UL Listed:
Yes
Dimension - Strip Length inch:
3-1/16 in
Conductor - Copper Str Size:
1000 kcmil
Feature - Barrel Style:
Chamfered
Certification - CSA Approved:
Yes
Finish Type:
Tin-Plated
Physical Attribute - Tongue Type:
Standard
Industry Standard(s):
UL468A-468B
Conductor - Material:
Copper
Temperature Rating:
194
Die Index:
27
Dimension - Bolt Size fraction:
1/2 in
Dimension - Hole Size mm:
14 mm
Dimension - Pad Width inch:
2.19 in
Type:
Long Barrel, Tin Plated
Dimension - Stud Size fraction:
1 to 2
Dimension - Z inch:
0.64 in
Dimension - Hole Size fraction:
1 to 2
Standards - Industry Standards Met:
UL468A-468B
Feature - Barrel Type:
Long
Conductor - Copper Str Size Range:
1000 kcmil
Voltage Rating:
35 kV
Dimension - Stud Size inch:
1/2 in
Dimension - Bolt Size inch:
0.5
Dimension - N inch:
0.63 in
Rating - Minimum Voltage:
600
Dimension - L Length Overall mm:
181 mm
Dimension - B Length fraction:
3 in
Dimension - Outside Diameter inch:
1.50 in
Physical Attribute - Number of Holes:
2
Dimension - Length Overall inch:
7.14 in
Plating Type:
Tin
Plated:
Y
Rating - KVA:
35 kV
Trade Name:
HYLUGâ„¢
Dimension - Hole Size inch:
0.56 in
Conductor Type:
CODE
Dimension - Bolt Hole Size inch:
0.52 in
Dimension - B Length inch:
3.00 in
Conductor Size:
1000 KCMIL
Voltage - Maximum:
35000
Physical Attribute - Tongue Angle:
Straight
Package Quantity:
1
