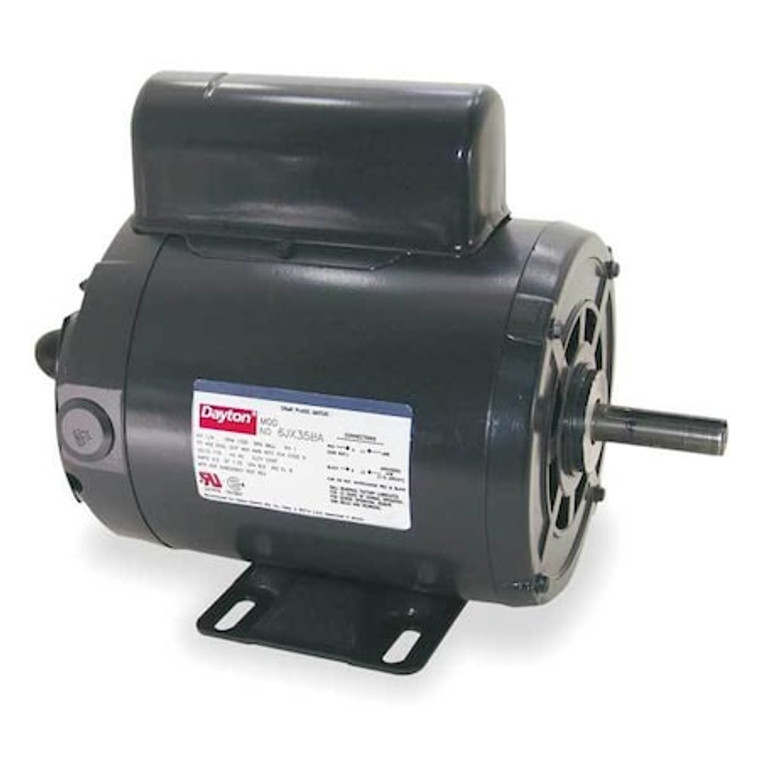

Tool Motor, 2-Shaft, 1/2hp, 1725rpm, 115/230 - 4K142BB

Name: Tool Motor, 2-Shaft, 1/2hp, 1725rpm, 115/230 - 4K142BB
Brand: Dayton
SKU: 4K142BB
Price: 469.19 USD
Availability: InStock

Dayton

SKU:

4K142BB

UPC:

190735327456

Availability:

In Stock

(No reviews yet)

Power Tool Motor, Single Phase, Motor Design Capacitor-Start, 1/2 HP, Nameplate RPM 1,725, No. of Speeds 1, 115/230V AC Voltage, Full Load Amps 9.2/4.6 A, 56 Frame, Usable @ 208V No, Usable @ 200V No, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection Manual, Ins. Class A, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Dripproof, Motor Mounting Type Rigid Base, Shaft Dia. 5/8 in, Shaft Length 1 7/8 in, Motor Shaft Design Keyed

Country of Origin:: Mexico
Item:: Power Tool Motor
Motor Design:: Capacitor-Start
Motor Enclosure Design:: Open Dripproof
HP:: 1/2
Nameplate RPM:: 1,725
Frame:: 56
Voltage:: 115/230V AC
Full Load Amps:: 9.2/4.6 A
Motor Mounting Type:: Rigid Base
RPM Range:: 1,701-1,800
Hz:: 60 Hz
Standards:: UL Component Recognized (E47479) and CSA Certified (701887)
Motor Bearings:: Ball
Shaft Length:: 1 7/8 in
Voltage Compatibility:: 115/200-230V AC, 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 230V AC, 240V AC
Length Less Shaft:: 7 7/16 in
Motor Application:: Power Tool
Phase:: Single
Ambient Temperature:: 40 Degrees C
Motor Shaft Rotation:: CW/CCW
Motor Service Factor:: 1
Ins. Class:: A
Shaft Dia.:: 5/8 in
Motor Thermal Protection:: Manual
Usable @ 208V:: No
No. of Speeds:: 1
Usable @ 200V:: No
Motor Shaft Design:: Keyed
Max. Ambient Temp.:: 40 Degrees C
Package Quantity:: 1
