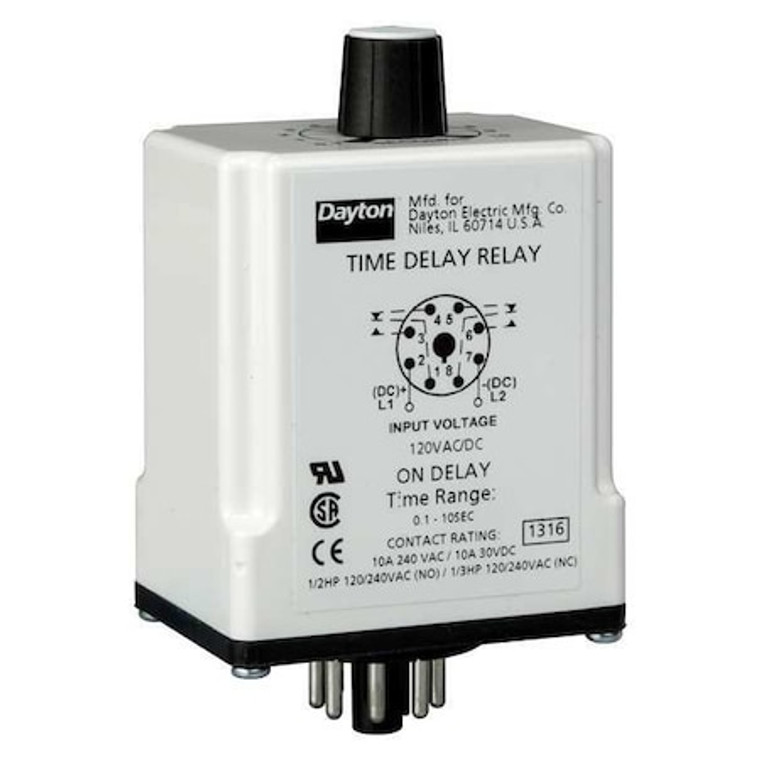

Time Delay Rlay, 120VAC/DC, 10A, DPDT, 8Pins - 1EGB6

Time Delay Rlay, 120VAC/DC, 10A, DPDT, 8Pins - 1EGB6

Dayton
SKU:
1EGB6
|
UPC:
190735137802
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Single Function Time Delay Relay, Adjustment Method Potentiometer, Base Shape Octal, Coil Voltage 120V AC/DC, Contact Form DPDT, Contact Rating (AC) 10 A @ 240V, Contact Rating (DC) 10 A @ 30V, Current Rating 10 A, Number of Delay Functions 1, Delay Function On Delay, Electrical Connection Socket, Flat Pin Width Not Applicable, IP Rating IP20, Input Voltage 120V AC/DC, Minimum Time Setting 0.01 sec, Maximum Time Setting 1 sec, Number of Pins 8, Sealing Enclosed, Mounting Style Plug-In
Additional Information
Country of Origin:
United States
Item - Relay:
Single Function Timing Relay
Function - Timing Relay:
On Delay
Coil Volts:
120V AC/DC
AC Contact Rating - Relay:
10A @ 240V
DC Contact Rating - Relay:
10A @ 30V
Base Type - Plug In Relay:
Octal
Number of Pins - Relay:
8
Adjustment Method - Timer:
Potentiometer
Min. Time Setting - Timer:
0.01 sec
Max. Time Setting - Timer:
1 sec
Power Consumption - Relay:
2 W, 2.5 VA
Item:
Single Function Time Delay Relay
Hz - Electrical:
50 Hz, 60 Hz
Function:
On Delay
Max. Time Setting:
1 sec.
Pins:
8
Min. Time Setting:
0.01 sec.
Mounting:
plug In
Contact Form:
DPDT
Socket Code:
A
Electrical Connection:
Socket
Body Width - Relay:
2.4 in
Base Type:
Octal
Socket:
1EGP3, 1EGP5, 5X852
Contact Material:
Silver Nickel
Body Height - Relay:
2.9 in
Standards:
CE Certified, CSA Certified, UL Listed, UL Socket
Contact Form - Relay:
DPDT
Body Depth - Relay:
1.7 in
Coil Rating:
2VA
Contact Amp Rating (Resistive):
10A
Status Indicator:
None
Operating Functions:
1
Overall Height - Relay:
3.1 in
Adjustment Method:
Potentiometer
Hz:
50/60
Mounting - Relay:
Plug In
Input Voltage:
120V AC/DC
Electrical Operating Durability:
100,000
Sealing:
Enclosed
Contact Rating (DC):
10 A @ 30V
Minimum Time Setting:
0.01 sec
Base Shape:
Octal
Maximum Time Setting:
1 sec
Operating Time Accuracy:
+0% -50% (Minimum Setting (Adjustable)), +2% 50ms (Fixed), +5% -0% (Maximum Setting (Adjustable))
Body Width:
2.4 in
Flat Pin Width:
Not Applicable
Maximum Operating Temperature:
122 Degrees F
IP Rating:
IP20
Body Height:
2.9 in
Number of Delay Functions:
1
Current Rating:
10 A
Frequency:
50/60 Hz
Coil Voltage:
120V AC/DC
Mechanical Operating Durability:
10,000,000
Contact Rating (AC):
10 A @ 240V
Mounting Style:
Plug-In
Body Depth:
1.7 in
Overall Depth:
3.1 in
Reset Method:
Time-Limit Reset
Delay Function:
On Delay
Minimum Operating Temperature:
-18 Degrees F
Power Consumption:
2 VA
Number of Pins:
8
Package Quantity:
1
