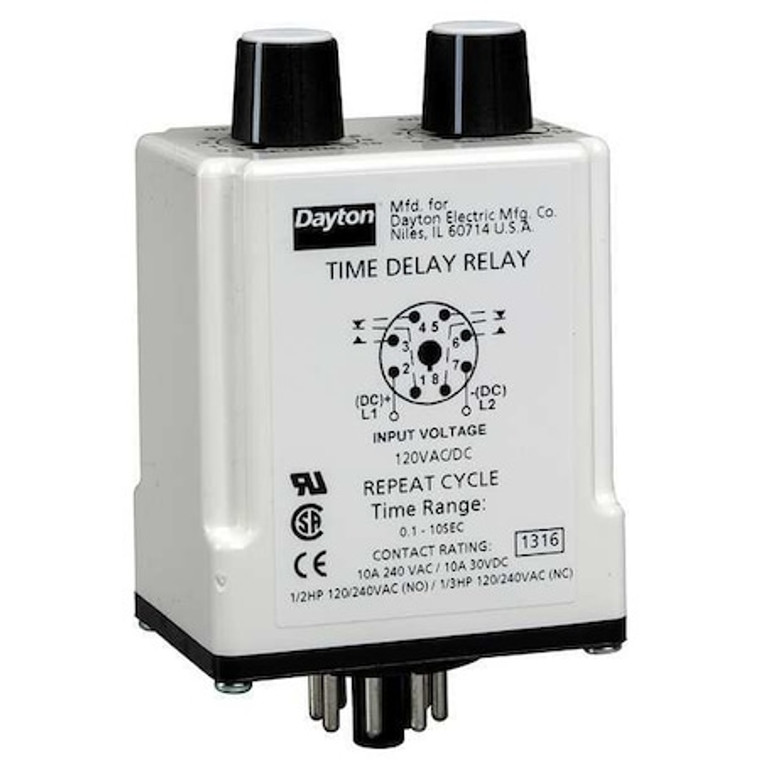

Time Delay Relay, 240VAC, 10A, DPDT, 9 sec. - 24EP43

Time Delay Relay, 240VAC, 10A, DPDT, 9 sec. - 24EP43

Dayton
SKU:
24EP43
|
UPC:
190735191613
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Single Function Time Delay Relay, Adjustment Method Potentiometer, Base Shape Octal, Coil Voltage 240V AC, Contact Form DPDT, Contact Rating (AC) 10 A @ 240V, Contact Rating (DC) 10 A @ 30V, Current Rating 10 A, Number of Delay Functions 1, Delay Function Cycle On, Electrical Connection Socket, Flat Pin Width Not Applicable, IP Rating IP20, Input Voltage 240V AC, Minimum Time Setting 9 sec, Maximum Time Setting 15 min, Number of Pins 8, Sealing Enclosed, Mounting Style Plug-In, Body Depth 1.7 in
Additional Information
Country of Origin:
United States
Item - Relay:
Single Function Timing Relay
Function - Timing Relay:
Repeat Cycle (On First)
Coil Volts:
240V AC
AC Contact Rating - Relay:
10A @ 240V
DC Contact Rating - Relay:
10A @ 30V
Base Type - Plug In Relay:
Octal
Number of Pins - Relay:
8
Adjustment Method - Timer:
Potentiometer
Min. Time Setting - Timer:
9 sec
Max. Time Setting - Timer:
15 min
Coil Rating:
2VA
Contact Amp Rating (Resistive):
10A
Adjustment Method:
Potentiometer
Base Type:
Octal
Body Depth - Relay:
1.7 in
Power Consumption - Relay:
2 VA
Contact Material:
Silver Nickel
Overall Height - Relay:
3.1 in
Electrical Connection:
Socket
Body Height - Relay:
2.9 in
Contact Form:
DPDT
Socket:
1EGP3, 1EGP5, 5X852
Hz - Electrical:
50 Hz, 60 Hz
Mounting:
plug In
Standards:
CE Certified, CSA Certified, UL Listed, UL Socket
Min. Time Setting:
9.00 sec.
Pins:
8
Socket Code:
A
Body Width - Relay:
2.4 in
Mounting - Relay:
Plug In
Item:
Single Function Time Delay Relay
Hz:
50/60
Function:
Repeat Cycle (On First)
Operating Functions:
7
Max. Time Setting:
15 min.
Status Indicator:
None
Contact Form - Relay:
DPDT
Input Voltage:
240V AC
Number of Delay Functions:
1
Contact Rating (AC):
10 A @ 240V
Overall Depth:
3.1 in
Maximum Operating Temperature:
122 Degrees F
Number of Pins:
8
Mounting Style:
Plug-In
Electrical Operating Durability:
100,000
Minimum Operating Temperature:
-18 Degrees F
Sealing:
Enclosed
Reset Method:
Time-Limit Reset
Contact Rating (DC):
10 A @ 30V
Power Consumption:
2 VA
Operating Time Accuracy:
+0% -50% (Minimum Setting (Adjustable)), +2% 50ms (Fixed), +5% -0% (Maximum Setting (Adjustable))
Coil Voltage:
240V AC
Body Height:
2.9 in
Frequency:
50/60 Hz
Mechanical Operating Durability:
10,000,000
IP Rating:
IP20
Delay Function:
Cycle On
Minimum Time Setting:
9 sec
Body Depth:
1.7 in
Maximum Time Setting:
15 min
Body Width:
2.4 in
Current Rating:
10 A
Base Shape:
Octal
Flat Pin Width:
Not Applicable
Package Quantity:
1
