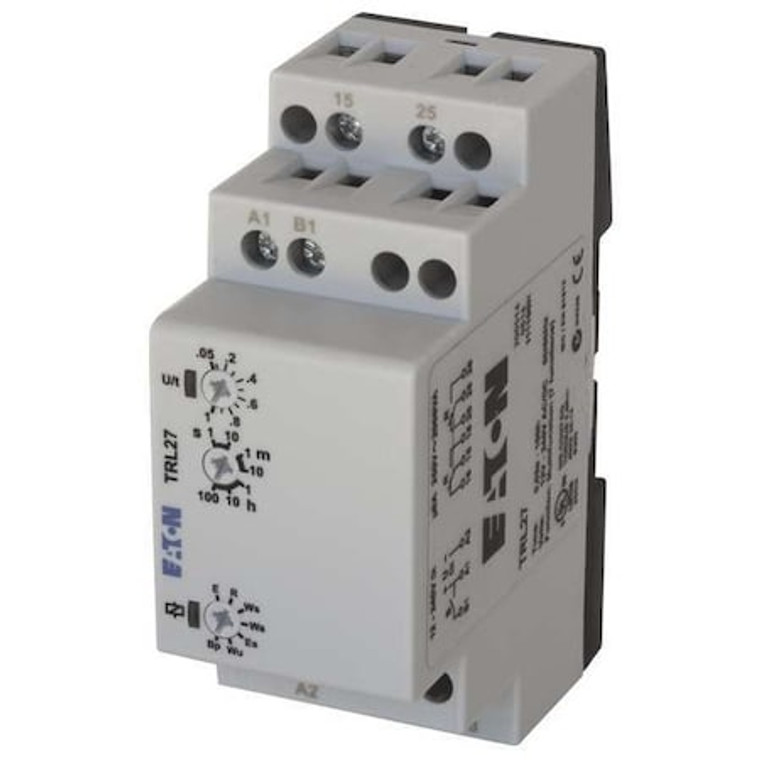

Time Delay Relay, 24 to 240VAC/DC, 8A, DPDT, Status Indicator: LED - TRL27

Time Delay Relay, 24 to 240VAC/DC, 8A, DPDT, Status Indicator: LED - TRL27

Eaton
SKU:
TRL27
|
UPC:
786685313597
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Multi-Function Time Delay Relay, Adjustment Method Rotary Dip Switch, Base Shape Square, Coil Voltage 12 to 240V AC/DC, Contact Form DPDT, Contact Rating (AC) 8 A @ 250V, Current Rating 8 A, Number of Delay Functions 6, Delay Function Flasher Pause First, On Delay Control Signal Start, On/Off Delay, Power Triggered, Single Shot Leading or Trailing Edge Voltage Controlled and Control Input, Trailing Edge Off, Electrical Connection Screw Clamp, IP Rating IP40, Input Voltage 24 to 240V AC/DC
Additional Information
Country of Origin:
Austria
Item - Relay:
Multi-Function Timing Relay
Function - Timing Relay:
OFF Delay (with Control Input), ON Delay (Voltage Controlled), On Delay (with Control Input), One Shot Leading Edge (Voltage Controlled), One Shot Leading Edge (with Control Input), One Shot Trailing Edge (with Control Input), Symmetric Pulse Gen
Coil Volts:
24 to 240V AC/DC
AC Contact Rating - Relay:
8A @ 250V
Number of Pins - Relay:
16
Adjustment Method - Timer:
Rotary Dip Switch
Min. Time Setting - Timer:
0.5 sec
Max. Time Setting - Timer:
4 day 4 hr
Socket:
Not Applicable
Body Height - Relay:
3.43 in
Electrical Connection:
Screw Clamp
Status Indicator:
LED
Body Width - Relay:
1.38 in
Contact Material:
Silver Alloy
Hz - Electrical:
50 Hz, 60 Hz
Body Depth - Relay:
2.36 in
Mounting - Relay:
DIN Rail
Adjustment Method:
Rotary Dip Switch
Standards:
CE Certified, CSA Certified, cULus Listed, TUV Certified
Contact Form:
DPDT
Power Consumption - Relay:
2 W, 6 VA
Number of Functions:
7
Contact Form - Relay:
DPDT
Overall Height - Relay:
3.43 in
Item:
Multi-Function Time Delay Relay
Input Voltage:
24 to 240V AC/DC
Series:
TR
Depth:
2.56 in
Number of Pins:
16
Weight:
3.84 oz
IP Rating:
IP40
Sealing:
Enclosed
Frequency:
50/60 Hz
Delay Function:
Flasher Pause First, On Delay Control Signal Start, On/Off Delay, Power Triggered, Single Shot Leading or Trailing Edge Voltage Controlled and Control Input, Trailing Edge Off
Body Width:
1.38 in
Mounting Style:
DIN Rail
Coil Voltage:
12 to 240V AC/DC
Minimum Time Setting:
0.05 sec
Current Rating:
8 A
Power Consumption:
2 W, 6 VA
Minimum Operating Temperature:
-13 Degrees F
Overall Depth:
3.43 in
Maximum Operating Temperature:
131 Degrees F
Body Depth:
2.36 in
Electrical Operating Durability:
200,000
Operating Time Accuracy:
Less Than0.5% +/-5ms
Maximum Time Setting:
100 hr
Contact Rating (AC):
8 A @ 250V
Base Shape:
Square
Number of Delay Functions:
6
Body Height:
3.43 in
Mechanical Operating Durability:
20,000,000
Mounting method:
Compact DIN rail
Time Delay:
0.05 seconds-100 hours
Certifications:
CSA Certified;cULus Listed
Product Name:
Eaton TR timing relay
Compliances:
CE Marked;TUV
Functions:
ON/OFF delay;Single shot leading or trailing edge voltage controlled and control input;Power triggered;Trailing edge OFF;ON delay control signal start;Flasher-pause first
Frequency Rating:
50-60 Hz
Enclosure Material:
Self-extinguishing plastic
Package Quantity:
1
