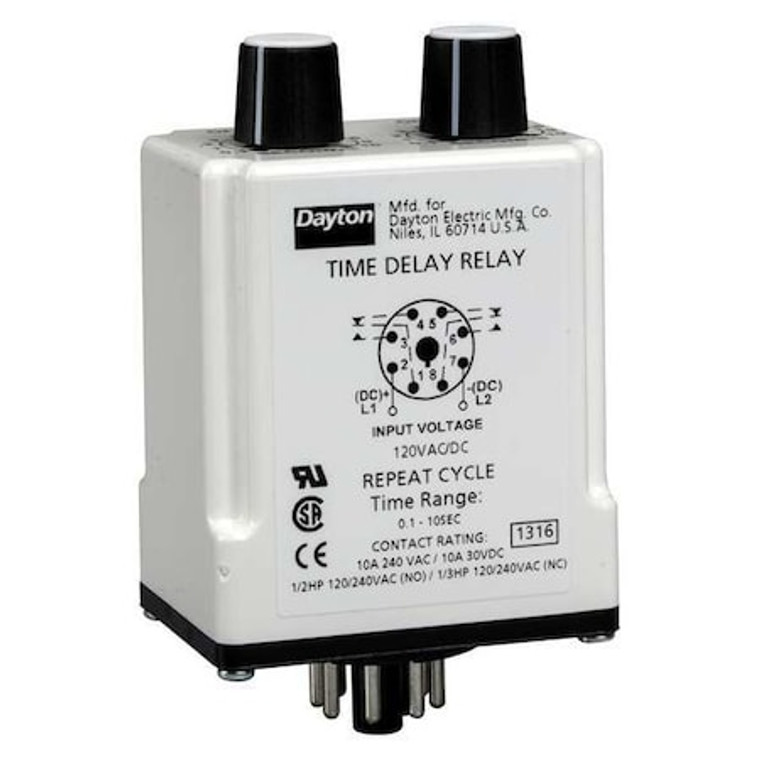

Time Delay Relay, 120VAC/DC, 10A, DPDT - 24EN73
Manufacturer: Dayton
MFR # 24EN73
Log in for pricing
Time Delay Relay, 120VAC/DC, 10A, DPDT, Max. Time Setting - Timer: 3 min - 1EGD3
DaytonLog in for pricing
(No reviews yet)
Write a Review
Dayton
Time Delay Relay, 120VAC/DC, 10A, DPDT, Max. Time Setting - Timer: 3 min - 1EGD3
Single Function Time Delay Relay, Adjustment Method Potentiometer, Base Shape Octal, Coil Voltage 120V AC/DC, Contact Form DPDT, Contact Rating (AC) 10 A @ 240V, Contact Rating (DC) 10 A @ 30V, Current Rating 10 A, Number of Delay Functions 1, Delay Function Cycle On, Electrical Connection Socket, Flat Pin Width Not Applicable, IP Rating IP20, Input Voltage 120V AC/DC, Minimum Time Setting 1.8 sec, Maximum Time Setting 3 min, Number of Pins 8, Sealing Enclosed, Mounting Style Plug-In
- Country of Origin:
- United States
- Item - Relay:
- Single Function Timing Relay
- Function - Timing Relay:
- Repeat Cycle (On First)
- Coil Volts:
- 120V AC/DC
- AC Contact Rating - Relay:
- 10A @ 240V
- DC Contact Rating - Relay:
- 10A @ 30V
- Base Type - Plug In Relay:
- Octal
- Number of Pins - Relay:
- 8
- Adjustment Method - Timer:
- Potentiometer
- Min. Time Setting - Timer:
- 1.8 sec
- Max. Time Setting - Timer:
- 3 min
- Contact Amp Rating (Resistive):
- 10A
- Overall Height - Relay:
- 3.1 in
- Adjustment Method:
- Potentiometer
- Mounting:
- plug In
- Coil Rating:
- 2VA
- Body Height - Relay:
- 2.9 in
- Hz - Electrical:
- 50 Hz, 60 Hz
- Contact Form:
- DPDT
- Socket Code:
- A
- Status Indicator:
- None
- Contact Material:
- Silver Nickel
- Operating Functions:
- 7
- Socket:
- 1EGP3, 1EGP5, 5X852
- Base Type:
- Octal
- Body Depth - Relay:
- 1.7 in
- Power Consumption - Relay:
- 2 W, 2.5 VA
- Min. Time Setting:
- 1.80 sec.
- Hz:
- 50/60
- Function:
- Repeat Cycle (On First)
- Standards:
- CE Certified, CSA Certified, UL Listed, UL Socket
- Mounting - Relay:
- Plug In
- Body Width - Relay:
- 2.4 in
- Item:
- Single Function Time Delay Relay
- Pins:
- 8
- Electrical Connection:
- Socket
- Max. Time Setting:
- 3 min.
- Contact Form - Relay:
- DPDT
- Input Voltage:
- 120V AC/DC
- Mechanical Operating Durability:
- 10,000,000
- Flat Pin Width:
- Not Applicable
- Contact Rating (AC):
- 10 A @ 240V
- IP Rating:
- IP20
- Current Rating:
- 10 A
- Power Consumption:
- 2 VA
- Overall Depth:
- 3.1 in
- Operating Time Accuracy:
- +0% -50% (Minimum Setting (Adjustable)), +2% 50ms (Fixed), +5% -0% (Maximum Setting (Adjustable))
- Minimum Operating Temperature:
- -18 Degrees F
- Contact Rating (DC):
- 10 A @ 30V
- Frequency:
- 50/60 Hz
- Sealing:
- Enclosed
- Body Depth:
- 1.7 in
- Maximum Operating Temperature:
- 122 Degrees F
- Delay Function:
- Cycle On
- Mounting Style:
- Plug-In
- Minimum Time Setting:
- 1.8 sec
- Coil Voltage:
- 120V AC/DC
- Electrical Operating Durability:
- 100,000
- Maximum Time Setting:
- 3 min
- Reset Method:
- Time-Limit Reset
- Body Width:
- 2.4 in
- Number of Pins:
- 8
- Base Shape:
- Octal
- Number of Delay Functions:
- 1
- Body Height:
- 2.9 in
- Package Quantity:
- 1
