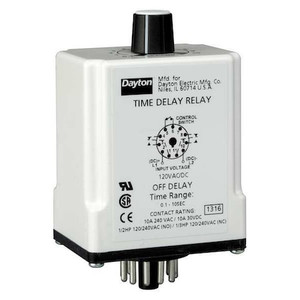

Time Delay Relay, 120VAC/DC, 10A, DPDT - 24EN73
DaytonLog in for pricing
(No reviews yet)
Write a Review
Dayton
Time Delay Relay, 120VAC/DC, 10A, DPDT - 24EN73
Single Function Time Delay Relay, Adjustment Method Potentiometer, Base Shape Octal, Coil Voltage 120V AC/DC, Contact Form DPDT, Contact Rating (AC) 10 A @ 240V, Contact Rating (DC) 10 A @ 30V, Current Rating 10 A, Number of Delay Functions 1, Delay Function Interval On, Electrical Connection Socket, Flat Pin Width Not Applicable, IP Rating IP20, Input Voltage 120V AC/DC, Minimum Time Setting 0.6 sec, Maximum Time Setting 60 sec, Number of Pins 8, Sealing Enclosed, Mounting Style Plug-In
- Country of Origin:
- United States
- Item - Relay:
- Single Function Timing Relay
- Function - Timing Relay:
- Interval On
- Coil Volts:
- 120V AC/DC
- AC Contact Rating - Relay:
- 10A @ 240V
- DC Contact Rating - Relay:
- 10A @ 30V
- Base Type - Plug In Relay:
- Octal
- Number of Pins - Relay:
- 8
- Adjustment Method - Timer:
- Potentiometer
- Min. Time Setting - Timer:
- 0.6 sec
- Max. Time Setting - Timer:
- 1 min
- Hz - Electrical:
- 50 Hz, 60 Hz
- Contact Amp Rating (Resistive):
- 10A
- Hz:
- 50/60
- Coil Rating:
- 2VA
- Pins:
- 8
- Body Height - Relay:
- 2.9 in
- Max. Time Setting:
- 60 sec.
- Overall Height - Relay:
- 3.1 in
- Socket:
- 1EGP3, 1EGP5, 5X852
- Socket Code:
- A
- Mounting:
- plug In
- Body Width - Relay:
- 2.4 in
- Operating Functions:
- 4
- Body Depth - Relay:
- 1.7 in
- Standards:
- CE Certified, CSA Certified, UL Listed, UL Socket
- Contact Material:
- Silver Nickel
- Electrical Connection:
- Socket
- Power Consumption - Relay:
- 2 W, 2.5 VA
- Status Indicator:
- None
- Function:
- Interval On
- Base Type:
- Octal
- Contact Form - Relay:
- DPDT
- Adjustment Method:
- Potentiometer
- Mounting - Relay:
- Plug In
- Min. Time Setting:
- 0.60 sec.
- Contact Form:
- DPDT
- Item:
- Single Function Time Delay Relay
- Input Voltage:
- 120V AC/DC
- Reset Method:
- Time-Limit Reset
- Coil Voltage:
- 120V AC/DC
- Sealing:
- Enclosed
- Current Rating:
- 10 A
- Frequency:
- 50/60 Hz
- IP Rating:
- IP20
- Flat Pin Width:
- Not Applicable
- Contact Rating (AC):
- 10 A @ 240V
- Base Shape:
- Octal
- Mounting Style:
- Plug-In
- Maximum Time Setting:
- 60 sec
- Overall Depth:
- 3.1 in
- Minimum Time Setting:
- 0.6 sec
- Body Height:
- 2.9 in
- Body Width:
- 2.4 in
- Number of Delay Functions:
- 1
- Number of Pins:
- 8
- Power Consumption:
- 2 W, 2.5 VA
- Delay Function:
- Interval On
- Body Depth:
- 1.7 in
- Contact Rating (DC):
- 10 A @ 30V
- Package Quantity:
- 1
