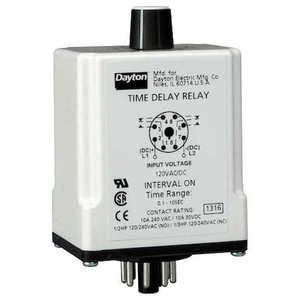

Time Delay Relay, 120VAC/DC, 10A, DPDT - 1EGB4
Single Function Time Delay Relay, Adjustment Method Potentiometer, Base Shape Octal, Coil Voltage 120V AC/DC, Contact Form DPDT, Contact Rating (AC) 10 A @ 240V, Contact Rating (DC) 10 A @ 30V, Current Rating 10 A, Number of Delay Functions 1, Delay Function On Delay, Electrical Connection Socket, Flat Pin Width Not Applicable, IP Rating IP20, Input Voltage 120V AC/DC, Minimum Time Setting 0.05 sec, Maximum Time Setting 5 sec, Number of Pins 8, Sealing Enclosed, Mounting Style Plug-In
- Country of Origin:
- United States
- Item - Relay:
- Single Function Timing Relay
- Function - Timing Relay:
- On Delay
- Coil Volts:
- 120V AC/DC
- AC Contact Rating - Relay:
- 10A @ 240V
- DC Contact Rating - Relay:
- 10A @ 30V
- Base Type - Plug In Relay:
- Octal
- Number of Pins - Relay:
- 8
- Adjustment Method - Timer:
- Potentiometer
- Min. Time Setting - Timer:
- 0.05 sec
- Max. Time Setting - Timer:
- 5 sec
- Contact Form - Relay:
- DPDT
- Item:
- Single Function Time Delay Relay
- Mounting - Relay:
- Plug In
- Hz:
- 50/60
- Function:
- On Delay
- Socket Code:
- A
- Min. Time Setting:
- 0.05 sec.
- Hz - Electrical:
- 50 Hz, 60 Hz
- Coil Rating:
- 2VA
- Body Height - Relay:
- 2.9 in
- Contact Amp Rating (Resistive):
- 10A
- Contact Material:
- Silver Nickel
- Overall Height - Relay:
- 3.1 in
- Standards:
- CE Certified, CSA Certified, UL Listed, UL Socket
- Status Indicator:
- None
- Operating Functions:
- 1
- Adjustment Method:
- Potentiometer
- Power Consumption - Relay:
- 2 W, 2.5 VA
- Max. Time Setting:
- 5 sec.
- Pins:
- 8
- Electrical Connection:
- Socket
- Body Width - Relay:
- 2.4 in
- Socket:
- 1EGP3, 1EGP5, 5X852
- Body Depth - Relay:
- 1.7 in
- Base Type:
- Octal
- Contact Form:
- DPDT
- Mounting:
- plug In
- Input Voltage:
- 120V AC/DC
- Maximum Time Setting:
- 5 sec
- Sealing:
- Enclosed
- Reset Method:
- Time-Limit Reset
- Coil Voltage:
- 120V AC/DC
- Contact Rating (AC):
- 10 A @ 240V
- Mechanical Operating Durability:
- 10,000,000
- Number of Delay Functions:
- 1
- Mounting Style:
- Plug-In
- Delay Function:
- On Delay
- Operating Time Accuracy:
- +0% -50% (Minimum Setting (Adjustable)), +2% 50ms (Fixed), +5% -0% (Maximum Setting (Adjustable))
- Body Width:
- 2.4 in
- Maximum Operating Temperature:
- 122 Degrees F
- Overall Depth:
- 3.1 in
- Electrical Operating Durability:
- 100,000
- Body Height:
- 2.9 in
- Number of Pins:
- 8
- Contact Rating (DC):
- 10 A @ 30V
- Minimum Time Setting:
- 0.05 sec
- IP Rating:
- IP20
- Frequency:
- 50/60 Hz
- Minimum Operating Temperature:
- -18 Degrees F
- Power Consumption:
- 2 VA
- Current Rating:
- 10 A
- Base Shape:
- Octal
- Body Depth:
- 1.7 in
- Flat Pin Width:
- Not Applicable
- Package Quantity:
- 1
