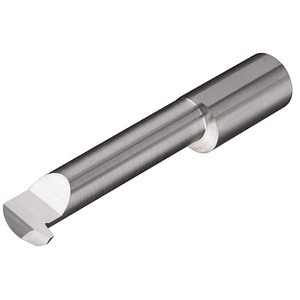

Threading Tool, 3 in L, Carbide - SAT-1500-10

Threading Tool, 3 in L, Carbide - SAT-1500-10

Micro 100
SKU:
SAT-1500-10
|
UPC:
728709176047
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Threading Tool, Included Angle 29 Degrees , Carbide, Bright (Uncoated), 0.2400 in, Threading
Additional Information
Country of Origin:
United States
Item:
Threading Tool
Shank Dia.:
1/2 in
Overall Length:
3 in
Cutting Direction:
Right Hand
Max. Depth:
1.500";Material=C2 Micrograin Carbide"
Shank Material:
Carbide
Style:
Stub ACME Threading Tool
Hole Dia.:
.490";Projection=0.1200 in"
Finish:
Uncoated
Series:
SAT
Offset Point:
0.0620 in
Max. Hole Depth:
1-1/2 in
Center to Cutting Tip:
0.2400 in
Shank Type - Machining:
Straight with Three Flats
Included Angle:
29 Degrees
Max. Threads per Inch:
10
Min. Hole Dia.:
0.4900 in
Thread Direction:
Right Hand
Cutter Material:
Carbide
Thread Standard:
Stub Acme
Flat Width:
0.0370 in
Measurement System:
Fractional Inch
Cutting Application:
Threading
Finish - Machining:
Bright (Uncoated)
Features:
Polished Split Face for Improved Edge Retention and Chip Evacuation While Reducing Galling, Split Geometry Makes the Tool as Rigid as Possible
Offset:
1/16";Max. Bore Depth=1-1/2""
Neck Dia.:
0.3650";Groove Width=0.1240""
Split Length:
0.275";Min. Bore Dia.=0.4900""
Package Quantity:
1
