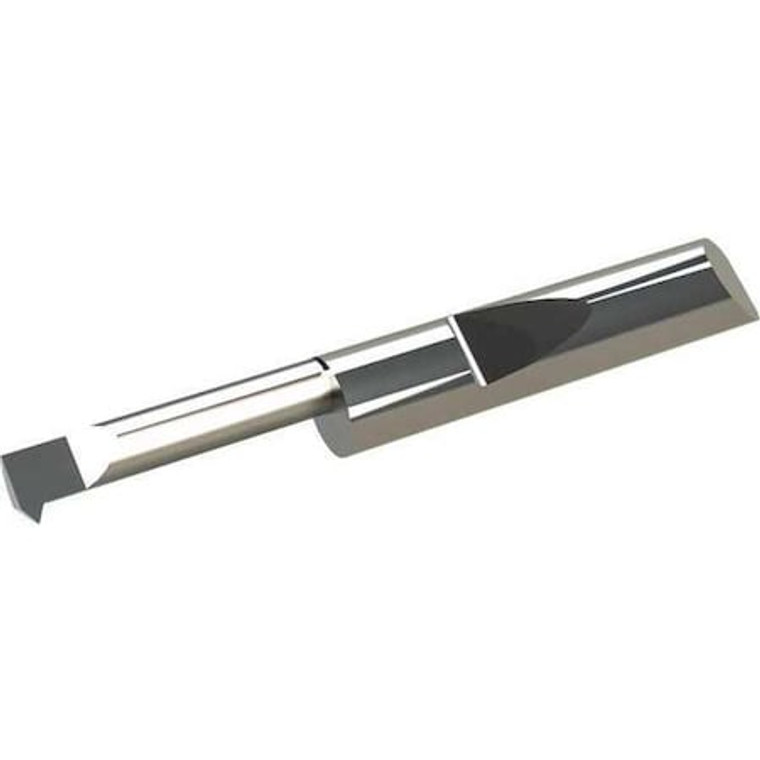

Threading Tool, 3 in L, Carbide - QIT-4901500X

Threading Tool, 3 in L, Carbide - QIT-4901500X

Micro 100
SKU:
QIT-4901500X
|
UPC:
728709160435
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Threading Tool, Included Angle 60 Degrees , Carbide, AlTiN, 0.2400 in, Coolant Through, Threading
Additional Information
Country of Origin:
United States
Item:
Threading Tool
Shank Dia.:
1/2 in
Overall Length:
3 in
Max. Depth:
1.5";Cutting Direction=Right Hand"
Material:
C2 Micrograin Carbide
Shank Material:
Carbide
Style:
Quick Change Internal Threading Tool
Projection:
0.1200 in
Finish:
AlTiN Coated
Hole Dia.:
0.49";Series=QIT"
Max. Hole Depth:
1-1/2 in
Finish - Machining:
AlTiN
Center to Cutting Tip:
0.2400 in
Primary Material Application ISO Code:
M, N, P, S
Overhang:
1.5400 in
Features:
Polished Split Face for Improved Edge Retention and Chip Evacuation While Reducing Galling, Split Geometry Makes the Tool as Rigid as Possible
Thread Direction:
Right Hand
Min. Hole Dia.:
0.4900 in
Included Angle:
60 Degrees
Min. Teeth per Inch:
6
Offset Point:
0.0780 in
Max. Threads per Inch:
24
Thread Standard:
ANSI, Metric 60 Degrees , UN
Cutting Application:
Threading
Primary Material Application:
Alloy Steel, Inconel, Nickel, Stainless Steel, Steel, Titanium, Tool Steel
Quick Change:
Yes
Measurement System:
Fractional Inch
Coolant Fed:
Coolant Through
Cutter Material:
Carbide
Max. Bore Depth:
1-1/2";Offset=5/64""
Neck Dia.:
0.3700";Thread Size=8-24"
Min. Bore Dia.:
0.4900";Corner Radius=0.002""
Package Quantity:
1
