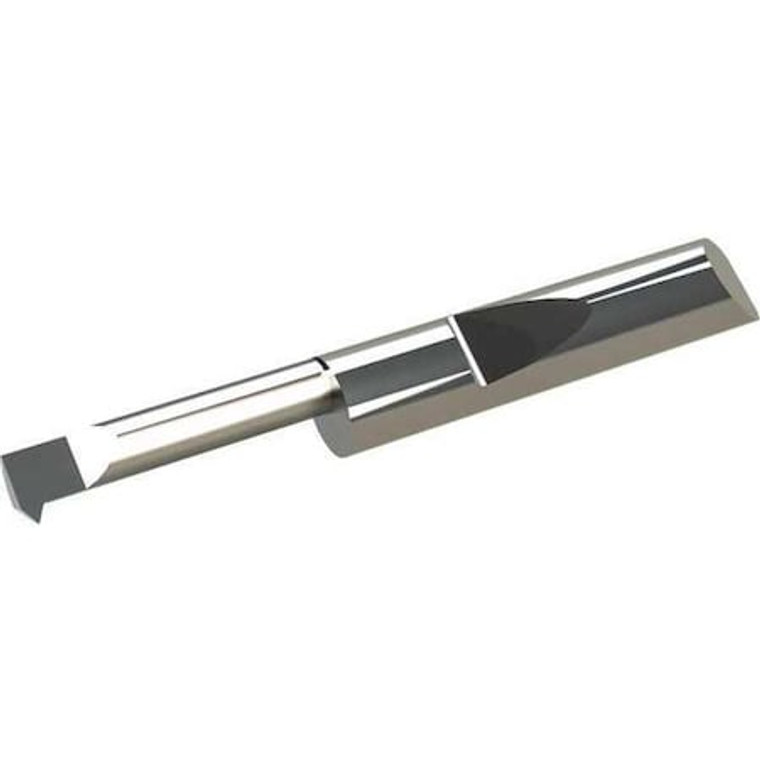

Threading Tool, 3 in L, Carbide - QIT-3601800X

Threading Tool, 3 in L, Carbide - QIT-3601800X

Micro 100
SKU:
QIT-3601800X
|
UPC:
728709160312
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Threading Tool, Included Angle 60 Degrees , Carbide, AlTiN, 0.1730 in, Coolant Through, Threading
Additional Information
Country of Origin:
United States
Item:
Threading Tool
Overall Length:
3 in
Shank Dia.:
3/8 in
Max. Depth:
1.8";Cutting Direction=Right Hand"
Material:
C2 Micrograin Carbide
Shank Material:
Carbide
Style:
Quick Change Internal Threading Tool
Finish:
AlTiN Coated
Hole Dia.:
0.36";Projection=0.0850 in"
Thread Standard:
ANSI, Metric 60 Degrees , UN
Finish - Machining:
AlTiN
Overhang:
1.8530 in
Series:
QIT
Coolant Fed:
Coolant Through
Measurement System:
Fractional Inch
Min. Teeth per Inch:
10
Included Angle:
60 Degrees
Quick Change:
Yes
Max. Threads per Inch:
32
Features:
Polished Split Face for Improved Edge Retention and Chip Evacuation While Reducing Galling, Split Geometry Makes the Tool as Rigid as Possible
Max. Hole Depth:
1.8000 in
Cutter Material:
Carbide
Offset Point:
0.0550 in
Min. Hole Dia.:
0.3600 in
Primary Material Application ISO Code:
M, N, P, S
Center to Cutting Tip:
0.1730 in
Primary Material Application:
Alloy Steel, Inconel, Nickel, Stainless Steel, Steel, Titanium, Tool Steel
Cutting Application:
Threading
Thread Direction:
Right Hand
Neck Dia.:
0.2750";Thread Size=11-28"
Max. Bore Depth:
1.800";Min. Bore Dia.=0.3600""
Corner Radius:
0.002";Offset=0.055""
Package Quantity:
1
