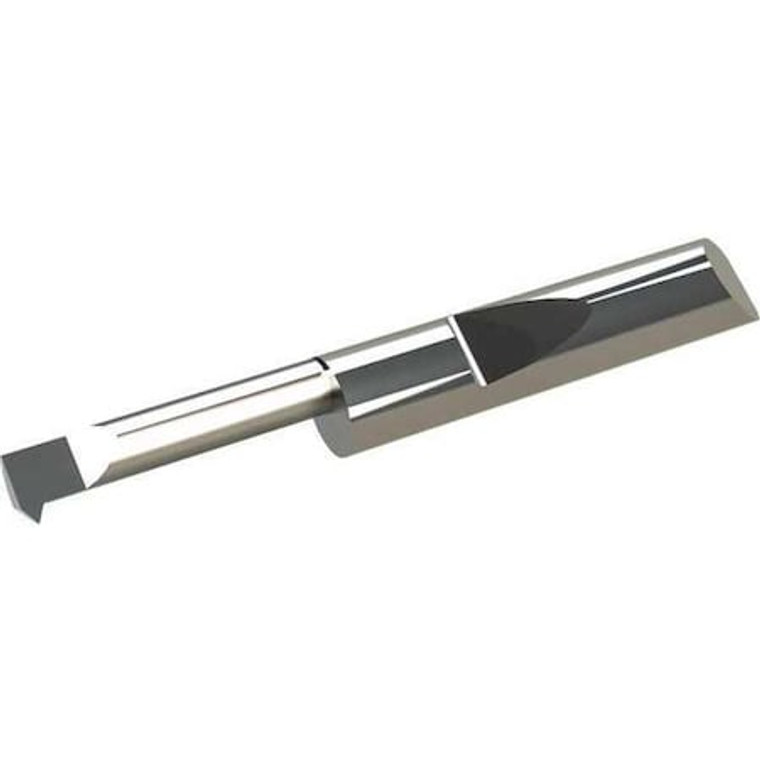

Threading Tool, 3 in L, Carbide - QIT-3201800X

Threading Tool, 3 in L, Carbide - QIT-3201800X

Micro 100
SKU:
QIT-3201800X
|
UPC:
728709160213
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Threading Tool, Included Angle 60 Degrees , Carbide, AlTiN, 0.1330 in, Coolant Through, Threading
Additional Information
Country of Origin:
United States
Item:
Threading Tool
Overall Length:
3 in
Shank Dia.:
3/8 in
Max. Depth:
1.8";Cutting Direction=Right Hand"
Material:
C2 Micrograin Carbide
Shank Material:
Carbide
Style:
Quick Change Internal Threading Tool
Projection:
0.0750 in
Finish:
AlTiN Coated
Hole Dia.:
0.32";Thread Standard=ANSI, Metric 60 Degrees , UN"
Overhang:
1.8530 in
Included Angle:
60 Degrees
Max. Hole Depth:
1.8000 in
Primary Material Application ISO Code:
M, N, P, S
Cutting Application:
Threading
Min. Teeth per Inch:
10
Measurement System:
Fractional Inch
Thread Direction:
Right Hand
Center to Cutting Tip:
0.1330 in
Quick Change:
Yes
Cutter Material:
Carbide
Offset Point:
0.0490 in
Max. Threads per Inch:
32
Primary Material Application:
Alloy Steel, Inconel, Nickel, Stainless Steel, Steel, Titanium, Tool Steel
Features:
Polished Split Face for Improved Edge Retention and Chip Evacuation While Reducing Galling, Split Geometry Makes the Tool as Rigid as Possible
Min. Hole Dia.:
0.3200 in
Series:
QIT
Coolant Fed:
Coolant Through
Finish - Machining:
AlTiN
Min. Bore Dia.:
0.3200";Neck Dia.=0.2450""
Thread Size:
12-32
Corner Radius:
0.002";Offset=0.049""
Max. Bore Depth:
1.800";Package Quantity=1"
