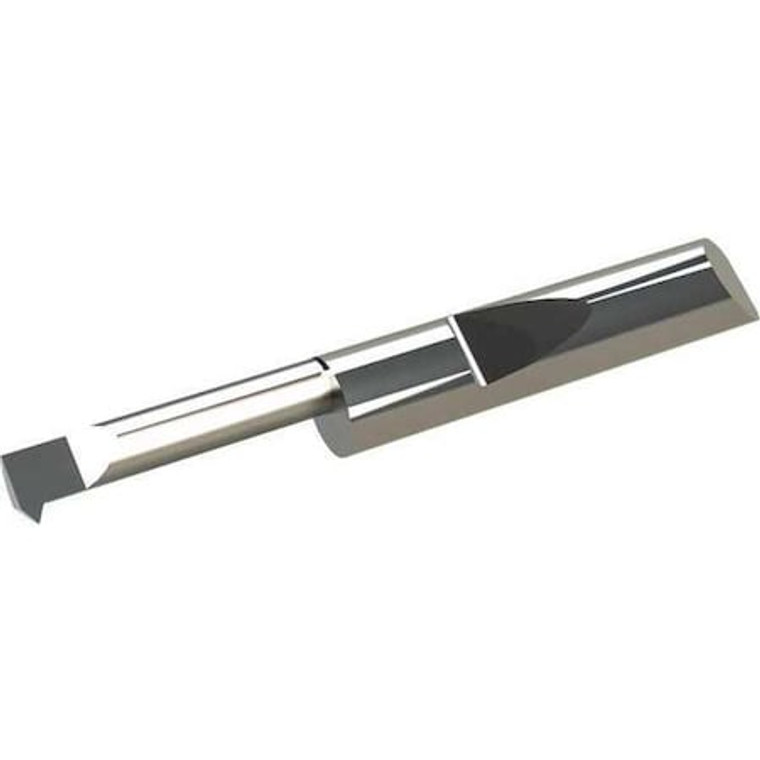

Threading Tool, 3 in L, Carbide - QIT-2301500X

Threading Tool, 3 in L, Carbide - QIT-2301500X

Micro 100
SKU:
QIT-2301500X
|
UPC:
728709159996
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Threading Tool, Included Angle 60 Degrees , Carbide, AlTiN, 0.0740 in, Coolant Through, Threading
Additional Information
Country of Origin:
United States
Item:
Threading Tool
Shank Dia.:
5/16 in
Overall Length:
3 in
Cutting Direction:
Right Hand
Max. Depth:
1.5";Material=C2 Micrograin Carbide"
Shank Material:
Carbide
Style:
Quick Change Internal Threading Tool
Projection:
0.0550 in
Finish:
AlTiN Coated
Hole Dia.:
0.23";Cutting Application=Threading"
Finish - Machining:
AlTiN
Quick Change:
Yes
Offset Point:
0.0380 in
Thread Direction:
Right Hand
Coolant Fed:
Coolant Through
Min. Hole Dia.:
0.2300 in
Included Angle:
60 Degrees
Max. Hole Depth:
1-1/2 in
Cutter Material:
Carbide
Series:
QIT
Thread Standard:
ANSI, Metric 60 Degrees , UN
Measurement System:
Fractional Inch
Max. Threads per Inch:
40
Center to Cutting Tip:
0.0740 in
Primary Material Application:
Alloy Steel, Inconel, Nickel, Stainless Steel, Steel, Titanium, Tool Steel
Min. Teeth per Inch:
14
Primary Material Application ISO Code:
M, N, P, S
Overhang:
1.8560 in
Features:
Polished Split Face for Improved Edge Retention and Chip Evacuation While Reducing Galling, Split Geometry Makes the Tool as Rigid as Possible
Corner Radius:
0.002";Offset=0.038""
Max. Bore Depth:
1-1/2";Min. Bore Dia.=0.2300""
Neck Dia.:
0.1750";Thread Size=20-48"
Package Quantity:
1
