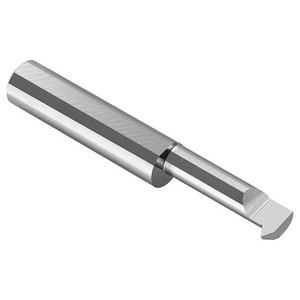

Threading Tool, 3-1/2 in L, Carbide - QIT-4902000

Threading Tool, 3-1/2 in L, Carbide - QIT-4902000

Micro 100
SKU:
QIT-4902000
|
UPC:
728709160442
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Threading Tool, Included Angle 60 Degrees , Carbide, Bright (Uncoated), 0.2400 in, Coolant Through, Threading
Additional Information
Country of Origin:
United States
Item:
Threading Tool
Overall Length:
3-1/2 in
Shank Dia.:
1/2 in
Max. Depth:
2";Cutting Direction=Right Hand"
Material:
C2 Micrograin Carbide
Shank Material:
Carbide
Style:
Quick Change Internal Threading Tool
Hole Dia.:
0.49";Finish=Uncoated"
Projection:
0.1200 in
Thread Standard:
ANSI, Metric 60 Degrees , UN
Features:
Polished Split Face for Improved Edge Retention and Chip Evacuation While Reducing Galling, Split Geometry Makes the Tool as Rigid as Possible
Measurement System:
Fractional Inch
Cutter Material:
Carbide
Thread Direction:
Right Hand
Max. Hole Depth:
2 in
Included Angle:
60 Degrees
Offset Point:
0.0780 in
Quick Change:
Yes
Overhang:
2.0400 in
Min. Teeth per Inch:
6
Max. Threads per Inch:
24
Series:
QIT
Coolant Fed:
Coolant Through
Finish - Machining:
Bright (Uncoated)
Center to Cutting Tip:
0.2400 in
Min. Hole Dia.:
0.4900 in
Cutting Application:
Threading
Offset:
5/64";Min. Bore Dia.=0.4900""
Corner Radius:
0.002";Max. Bore Depth=2""
Thread Size:
8-24
Neck Dia.:
0.3700";Package Quantity=1"
