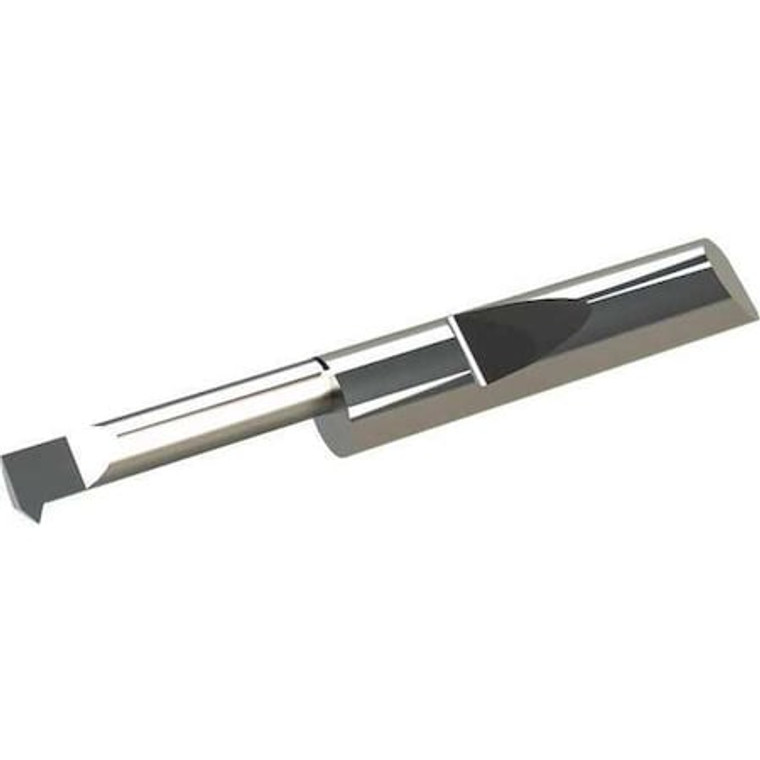

Threading Tool, 3-1/2 in L, Carbide - QIT-4602000

Threading Tool, 3-1/2 in L, Carbide - QIT-4602000

Micro 100
SKU:
QIT-4602000
|
UPC:
728709160381
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Threading Tool, Included Angle 60 Degrees , Carbide, Bright (Uncoated), 0.2100 in, Coolant Through, Threading
Additional Information
Country of Origin:
United States
Item:
Threading Tool
Shank Dia.:
1/2 in
Overall Length:
3-1/2 in
Cutting Direction:
Right Hand
Max. Depth:
2";Material=C2 Micrograin Carbide"
Shank Material:
Carbide
Style:
Quick Change Internal Threading Tool
Hole Dia.:
0.46";Projection=0.1200 in"
Finish:
Uncoated
Cutter Material:
Carbide
Min. Teeth per Inch:
6
Offset Point:
0.0780 in
Cutting Application:
Threading
Thread Standard:
ANSI, Metric 60 Degrees , UN
Max. Hole Depth:
2 in
Min. Hole Dia.:
0.4600 in
Center to Cutting Tip:
0.2100 in
Max. Threads per Inch:
24
Thread Direction:
Right Hand
Included Angle:
60 Degrees
Series:
QIT
Coolant Fed:
Coolant Through
Finish - Machining:
Bright (Uncoated)
Features:
Polished Split Face for Improved Edge Retention and Chip Evacuation While Reducing Galling, Split Geometry Makes the Tool as Rigid as Possible
Overhang:
2.0400 in
Measurement System:
Fractional Inch
Quick Change:
Yes
Neck Dia.:
0.3400";Corner Radius=0.002""
Min. Bore Dia.:
0.4600";Max. Bore Depth=2""
Thread Size:
8-24
Offset:
5/64";Package Quantity=1"
