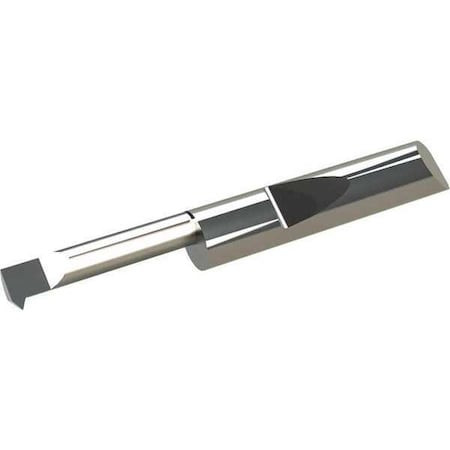

Threading Tool, 2 in L, Carbide - QIT-290500X

Threading Tool, 2 in L, Carbide - QIT-290500X

Micro 100
SKU:
QIT-290500X
|
UPC:
728709160138
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Threading Tool, Included Angle 60 Degrees , Carbide, AlTiN, 0.1340 in, Coolant Through, Threading
Additional Information
Country of Origin:
United States
Item:
Threading Tool
Shank Dia.:
5/16 in
Overall Length:
2 in
Max. Depth:
0.5";Cutting Direction=Right Hand"
Material:
C2 Micrograin Carbide
Shank Material:
Carbide
Style:
Quick Change Internal Threading Tool
Projection:
0.0700 in
Hole Dia.:
0.29";Finish=AlTiN Coated"
Offset Point:
0.0460 in
Primary Material Application ISO Code:
M, N, P, S
Cutting Application:
Threading
Max. Threads per Inch:
40
Coolant Fed:
Coolant Through
Series:
QIT
Thread Direction:
Right Hand
Overhang:
0.8530 in
Finish - Machining:
AlTiN
Thread Standard:
ANSI, Metric 60 Degrees , UN
Max. Hole Depth:
1/2 in
Min. Hole Dia.:
0.2900 in
Min. Teeth per Inch:
12
Included Angle:
60 Degrees
Primary Material Application:
Alloy Steel, Inconel, Nickel, Stainless Steel, Steel, Titanium, Tool Steel
Quick Change:
Yes
Center to Cutting Tip:
0.1340 in
Measurement System:
Fractional Inch
Cutter Material:
Carbide
Features:
Polished Split Face for Improved Edge Retention and Chip Evacuation While Reducing Galling, Split Geometry Makes the Tool as Rigid as Possible
Min. Bore Dia.:
0.2900";Neck Dia.=0.2200""
Max. Bore Depth:
1/2";Corner Radius=0.002""
Offset:
0.046";Thread Size=14-40"
Package Quantity:
1
